s
Hicom 150
Programming Guide

Advertisement

loading

  Related Manuals for Siemens Hicom 150

  Summary of Contents for Siemens Hicom 150

  • Page 1 Hicom 150 Programming Guide...
  • Page 3 Important In the event of any problems on your PABX system please call one of the following numbers for service:- Maintenance Call Centre 011-652-3114 0800-110069 Toll free 011-652-3041 Customer Support Centre 011-652-3050 011-652-3041 Quick Service 011-652-3041 (Moving / Add. Ext.) Your Maintenance Contract Number...
  • Page 4: Table Of Contents

    Hicom 150 Programming Guide Introduction ....................5 Programme Dial Keys .................. 7 Change Time ....................9 Change Date ..................... 10 Change Names ..................11 Pickup Groups ................... 13 PIN Numbers ..................... 15 System Abbreviated Numbers ..............17...
  • Page 5: Introduction

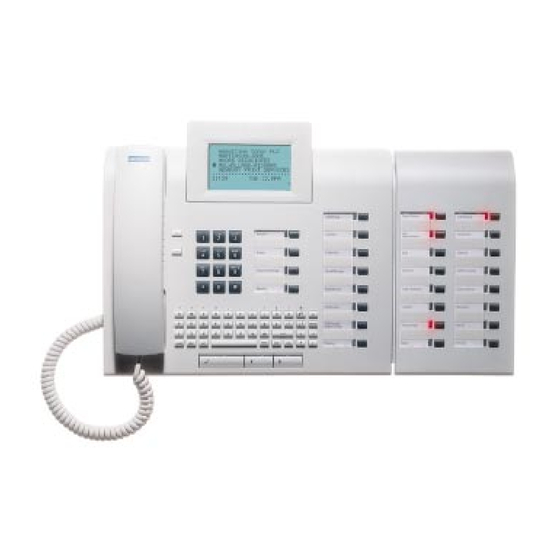

    Yes Key Forward Scroll Key Backward Scroll Key The Siemens optiset E Digital Feature telephones operate via a Menu- controlled User Guidance Display System. The display will automatically offer you a choice of the available options most suited to the task you are about to carry out.
  • Page 6 Introduction - Cont’d Glossary - Light Emitting Diode Shuttle - Alternating between calls - Direct Destination Select (External number) - Direct Station Select (Extension number with busy and ringing indication)
  • Page 7: Programme Dial Keys

    Programme Dial Keys Internal or external numbers may be stored under keys on the Optiset phones or switchboard: WHAT YOU HAVE TO DO WHAT HAPPENS Programme Internal number (DSS) menu: Press SERVICE MENU key outgoing calls...? > press feature key Dial 02 >...
  • Page 8 Programme Dial Keys - Cont’d WHAT YOU HAVE TO DO WHAT HAPPENS dest: 201 Press > 87 dss: 201 > Programme External number (Repertory Dial key) menu: Press SERVICE MENU key outgoing calls...? > press feature key Dial 02 > not Programmed Press key you wish to programme Outgoing Calls...?
  • Page 9: Change Time

    Change Time WHAT YOU HAVE TO DO WHAT HAPPENS menu: Press SERVICE MENU key outgoing calls...? > time (hhmm): Dial 03 time: 1051 Enter the time e.g. 1051 accepted...
  • Page 10: Change Date

    Change Date WHAT YOU HAVE TO DO WHAT HAPPENS menu: Press SERVICE MENU key outgoing calls...? > password: Dial 05 > password:..Enter PIN (xxxx) done? > system administration Press call charge rec? > system administration Press to scroll to System Parameters system parameters >...
  • Page 11: Change Names

    Change Names WHAT YOU HAVE TO DO WHAT HAPPENS menu: Press SERVICE MENU key outgoing calls...? > password: Dial 05 > password:..Enter PIN (xxxx) done? > system administration Press call charge rec? > system administration Press to scroll to Stations stations? >...
  • Page 12 Change Names - Cont’d WHAT YOU HAVE TO DO WHAT HAPPENS stn name: Press > stn name: paul Enter name via Alpha keypad done? > stn name: paul Press oth station param? > Move to next Extension number stn name: paul Press to scroll to Next Station next station?
  • Page 13: Pickup Groups

    Pickup Groups The system allows for a maximum of 64 groups with unlimited members per group. WHAT YOU HAVE TO DO WHAT HAPPENS Add Member to Group menu: Press SERVICE MENU key outgoing calls...? > password: Dial 05 > password:..Enter PIN (xxxx) done? >...
  • Page 14 Pickup Groups - Cont’d WHAT YOU HAVE TO DO WHAT HAPPENS call pickup group: 1 Press done? > call pickup group: 2 Enter new Pickup Group No (e.g. 2) done? > call pickup group: 2 Press oth station param? > Move to next Extension number call pickup group: 2 Press...
  • Page 15: Pin Numbers

    PIN Numbers WHAT YOU HAVE TO DO WHAT HAPPENS Display Extension PIN menu: Press SERVICE MENU key outgoing calls...? > password: Dial 05 > password:..Enter PIN (xxxx) done? > system administration Press call charge rec? > system administration Press to scroll to Stations stations? >...
  • Page 16 PIN Numbers - Cont’d WHAT YOU HAVE TO DO WHAT HAPPENS Move to next Extension number pin: xxxx Press oth station param? > pin: xxxx Press to scroll to Next Station next station? > ext number: 210 Press done? > Repeat procedure from step “Enter required Ext No”...
  • Page 17: System Abbreviated Numbers

    System Abbreviated Numbers The system can accommodate up to 1000 abbreviated numbers. These numbers can be split into 1 to 5 groups. The system is normally programmed for 1 group only. WHAT YOU HAVE TO DO WHAT HAPPENS Add / Change numbers menu: Press SERVICE MENU key outgoing calls...?
  • Page 18 Abbreviated Numbers - Cont’d WHAT YOU HAVE TO DO WHAT HAPPENS 123: Press change number? > access code: Press > access code: 0 Enter Access code (normally 0) done? > dial str: Press > dial string: 6522000 Enter External number done? >...
  • Page 19 WHAT YOU HAVE TO DO WHAT HAPPENS Add / Change names 123 06522000 Press to scroll to Change Name change name? > 123: Press > 0: siemens Enter name done? > Press done? > accepted Press > 123: 06522000 Display returns to change name? >...
  • Page 20 Siemens Telecommunications (Pty) Ltd. Private Bag X71 Halfway House 1685...
