Table of Contents
Introduction..........................................................................2
Features...............................................................................2
Network Cable Supported.....................................................3
Package Contents................................................................3
Appearance Indication..........................................................4
Installation Guide.................................................................5
Appendix Specifications......................................................7
1
Introduction
The TR-9XX series products are 10/100Mbps fast ethernet
converter. The converter mediates between a 10/100Base-TX
segment and a 100Base-FX segment.It is primarily designed for
large, more high speed/bandwidth demanding workgroups that
require expansion of the Fast Ethernet network.

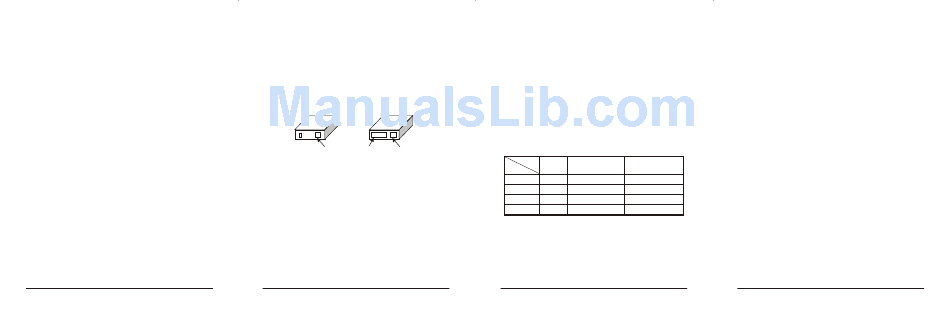

AC power connector SC fiber connetor
RJ45 connetor
Features
Complies with 802.3u 10/100Base-TX and 100Base-FX
!
standard.
Provide one SC fiber connector and one UTP connector.
!
Auto-detection of half/full duplex transfer mode for TX port.
!
Auto-negotiation of 10/100Mbps rate and Auto-Crossover
!
for TX port.
Provide switch configuration of half/full duplex transfer
!
mode for FX port.
Extend fiber distance up to 2km for multi-mode fiber and
!
2
20-60km for single-mode fiber.
!
Easy-to-view LED indicators provide status to monitor
!
network activity easily.
External power supply.
!
Network Cable Supported
The connectors and network cables supported by the converter
are listed in the following:
UTP: Cat 5 Twisted-Pair
Fiber SC: 1300nm 62.5/125,50/125um Single/Multi-mode fiber
Type Connetor Transmission Distance Transmission Media
TR-932D RJ45--SC 2km Multi-mode Fiber,Cat-5
TR-962D-20 RJ45--SC 20km Single-mode Fiber,Cat-5
TR-962D-40 RJ45--SC 40km Single-mode Fiber,Cat-5
TR-962D-60 RJ45--SC 60km Single-mode Fiber,Cat-5
Package Contents
Before start using the products, make sure that what you have is
what you ordered.
The Converter includes:
3
One Converter
!
One AC adapter
!
This User's Guide
!
Appearance Indication
LED Indicators
This converter has LED indicators which can provide a real-time
report. When you take a look at these indicators, you will know
what's happening on your network.
Power(green) Lights when the adapter is properly
!
plugged in.
TX_SPD(green) Lights when the UTP ports is connected
!
to 100Base-Tx device.
TX_LINK/ACT(green) Steady green indicates that a valid
!
link exists. Flashing green indicates that the converter is
receiving data or transmitting data from the RJ45 connector.
FX_LINK/ACT(green) Steady green indicates that a valid link
!
exists. Flashing green indicates that the converter is receiving
data or transmitting data from the Fiber Optic connector.
FX_FDX/COL(green) Steady green indicates that the fiber
!
optic connector is operating in full-duplex mode. The light is
4
