R&S ESCI

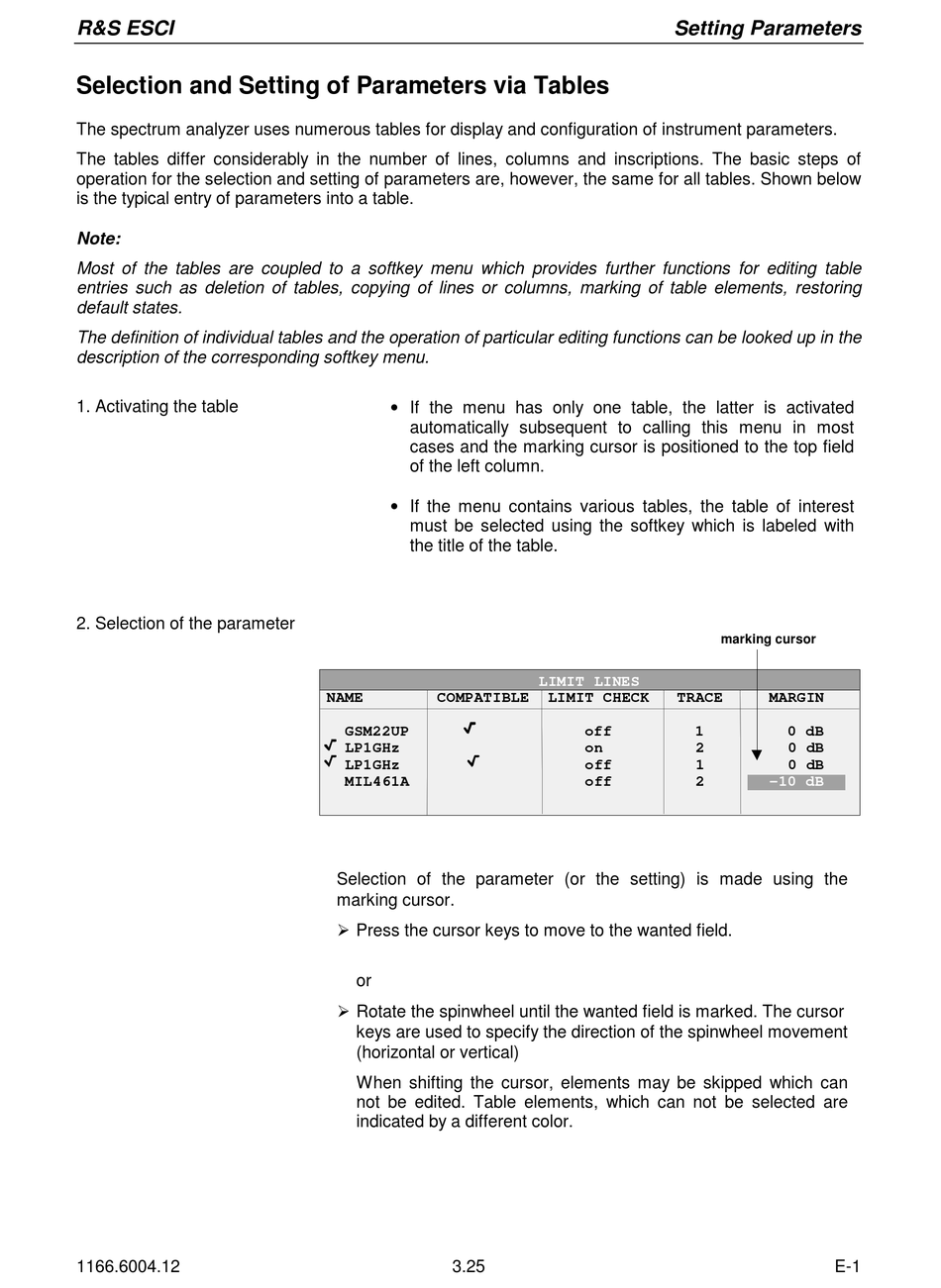

Selection and Setting of Parameters via Tables

The spectrum analyzer uses numerous tables for display and configuration of instrument parameters.
The tables differ considerably in the number of lines, columns and inscriptions. The basic steps of
operation for the selection and setting of parameters are, however, the same for all tables. Shown below
is the typical entry of parameters into a table.
Note:
Most of the tables are coupled to a softkey menu which provides further functions for editing table
entries such as deletion of tables, copying of lines or columns, marking of table elements, restoring
default states.
The definition of individual tables and the operation of particular editing functions can be looked up in the
description of the corresponding softkey menu.
1. Activating the table
2. Selection of the parameter
1166.6004.12
• If the menu has only one table, the latter is activated
automatically subsequent to calling this menu in most
cases and the marking cursor is positioned to the top field
of the left column.
• If the menu contains various tables, the table of interest
must be selected using the softkey which is labeled with
the title of the table.
NAME COMPATIBLE
GSM22UP
LP1GHz
LP1GHz
MIL461A
Selection of the parameter (or the setting) is made using the
marking cursor.
! Press the cursor keys to move to the wanted field.
or
! Rotate the spinwheel until the wanted field is marked. The cursor
keys are used to specify the direction of the spinwheel movement
(horizontal or vertical)
When shifting the cursor, elements may be skipped which can
not be edited. Table elements, which can not be selected are
indicated by a different color.
3.25
Setting Parameters
LIMIT LINES
LIMIT CHECK TRACE
off 1
on 2
off 1
off 2
marking cursor
MARGIN
0 dB
0 dB
0 dB
-10 dB
E-1
