R&S ESCI
VARIATION
MKR
PEAK
NEXT
ABSOLUTE
NEXT MODE
PEAK/MIN
SEARCH
NEXT LEFT
SEARCH
NEXT RIGHT
ABSOLUTE
PEAK/MIN
PREV
NEXT
1166.6004.12

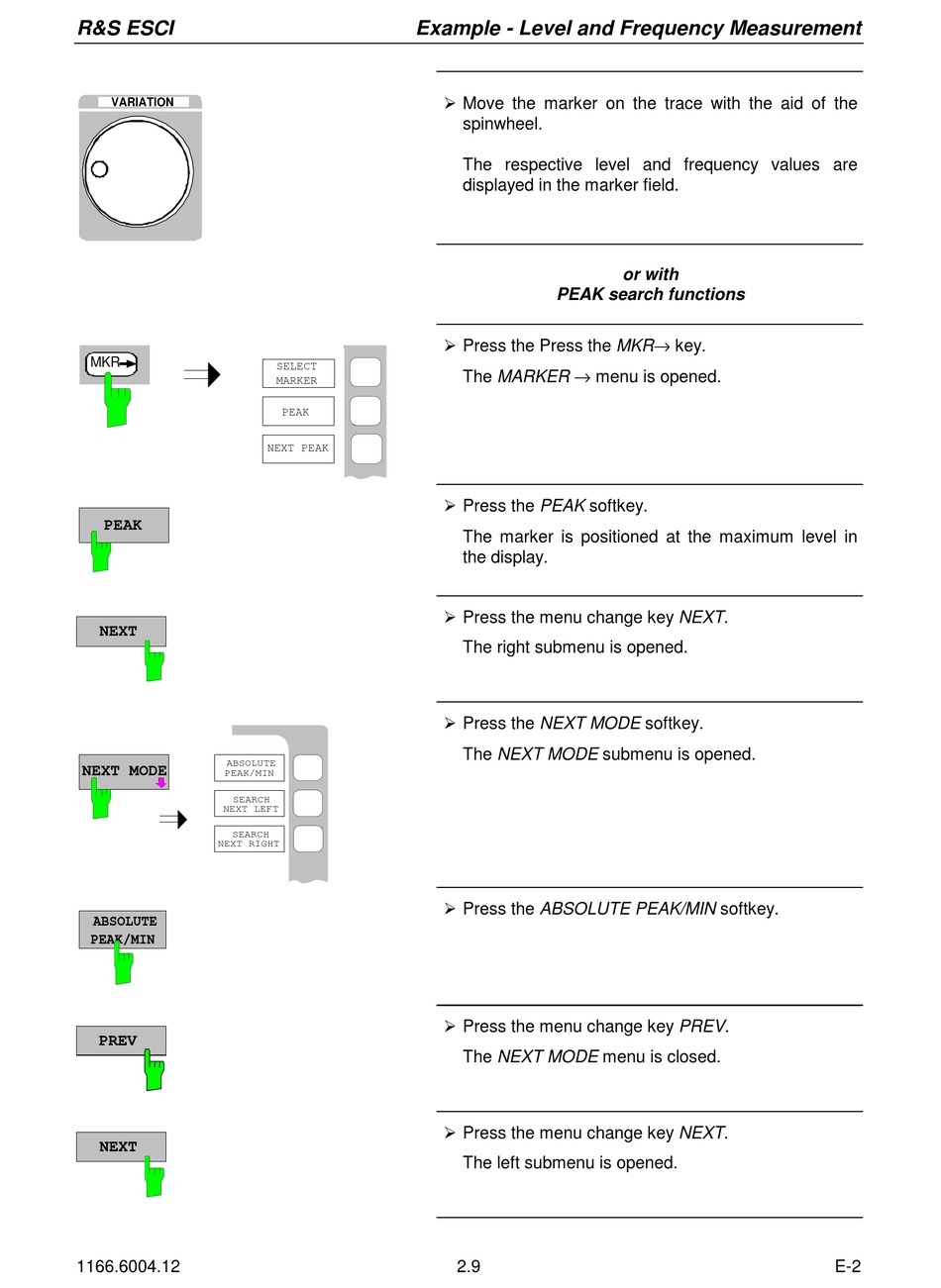

Example - Level and Frequency Measurement
! Move the marker on the trace with the aid of the
! Press the Press the MKR→ key.
SELECT
MARKER
PEAK
NEXT PEAK
! Press the PEAK softkey.
! Press the menu change key NEXT.
! Press the NEXT MODE softkey.
! Press the ABSOLUTE PEAK/MIN softkey.
! Press the menu change key PREV.
! Press the menu change key NEXT.
spinwheel.
The respective level and frequency values are
displayed in the marker field.
or with
PEAK search functions
The MARKER → menu is opened.
The marker is positioned at the maximum level in
the display.
The right submenu is opened.
The NEXT MODE submenu is opened.
The NEXT MODE menu is closed.
The left submenu is opened.
2.9 E-2
