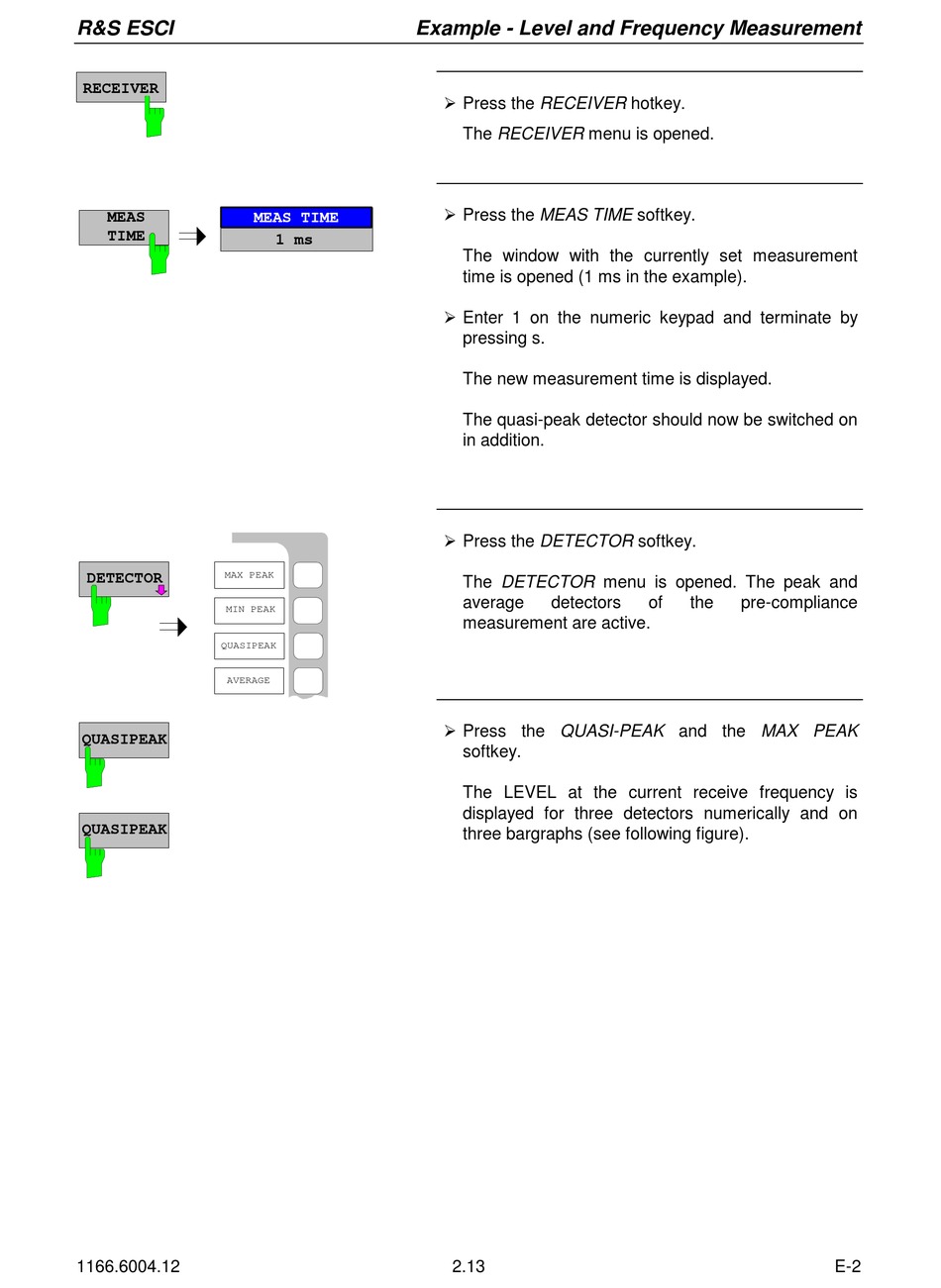

Example - Level and Frequency Measurement
MEAS TIME
1 ms
! Press the RECEIVER hotkey.
The RECEIVER menu is opened.
! Press the MEAS TIME softkey.
The window with the currently set measurement
time is opened (1 ms in the example).
! Enter 1 on the numeric keypad and terminate by
pressing s.
The new measurement time is displayed.
The quasi-peak detector should now be switched on
in addition.
! Press the DETECTOR softkey.
The DETECTOR menu is opened. The peak and
average detectors
measurement are active.
! Press the QUASI-PEAK and the MAX PEAK
softkey.
The LEVEL at the current receive frequency is
displayed for three detectors numerically and on
three bargraphs (see following figure).
