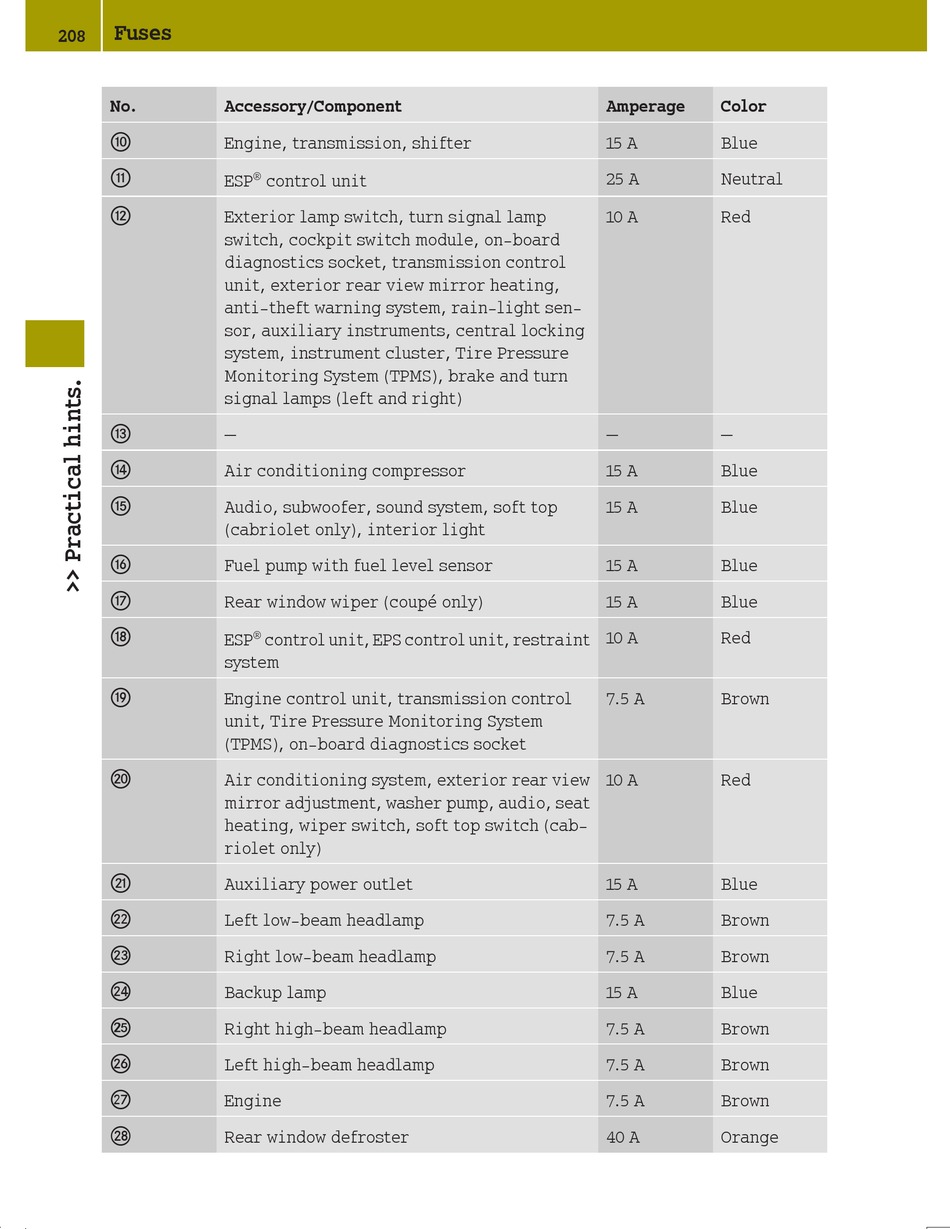

Fuses
208
No.
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Accessory/Component
Engine, transmission, shifter
®
ESP control unit
Exterior lamp switch, turn signal lamp
switch, cockpit switch module, on-board
diagnostics socket, transmission control
unit, exterior rear view mirror heating,
anti-theft warning system, rain-light sen-
sor, auxiliary instruments, central locking
system, instrument cluster, Tire Pressure
Monitoring System (TPMS), brake and turn
signal lamps (left and right)
—
Air conditioning compressor
Audio, subwoofer, sound system, soft top
(cabriolet only), interior light
Fuel pump with fuel level sensor
Rear window wiper (coupé only)
®
ESP control unit, EPS control unit, restraint
system
Engine control unit, transmission control
unit, Tire Pressure Monitoring System
(TPMS), on-board diagnostics socket
Air conditioning system, exterior rear view
mirror adjustment, washer pump, audio, seat
heating, wiper switch, soft top switch (cab-
riolet only)
Auxiliary power outlet
Left low‑beam headlamp
Right low‑beam headlamp
Backup lamp
Right high‑beam headlamp
Left high‑beam headlamp
Engine
Rear window defroster
Amperage Color
15 A Blue
25 A Neutral
10 A Red
— —
15 A Blue
15 A Blue
15 A Blue
15 A Blue
10 A Red
7.5 A Brown
10 A Red
15 A Blue
7.5 A Brown
7.5 A Brown
15 A Blue
7.5 A Brown
7.5 A Brown
7.5 A Brown
40 A Orange
