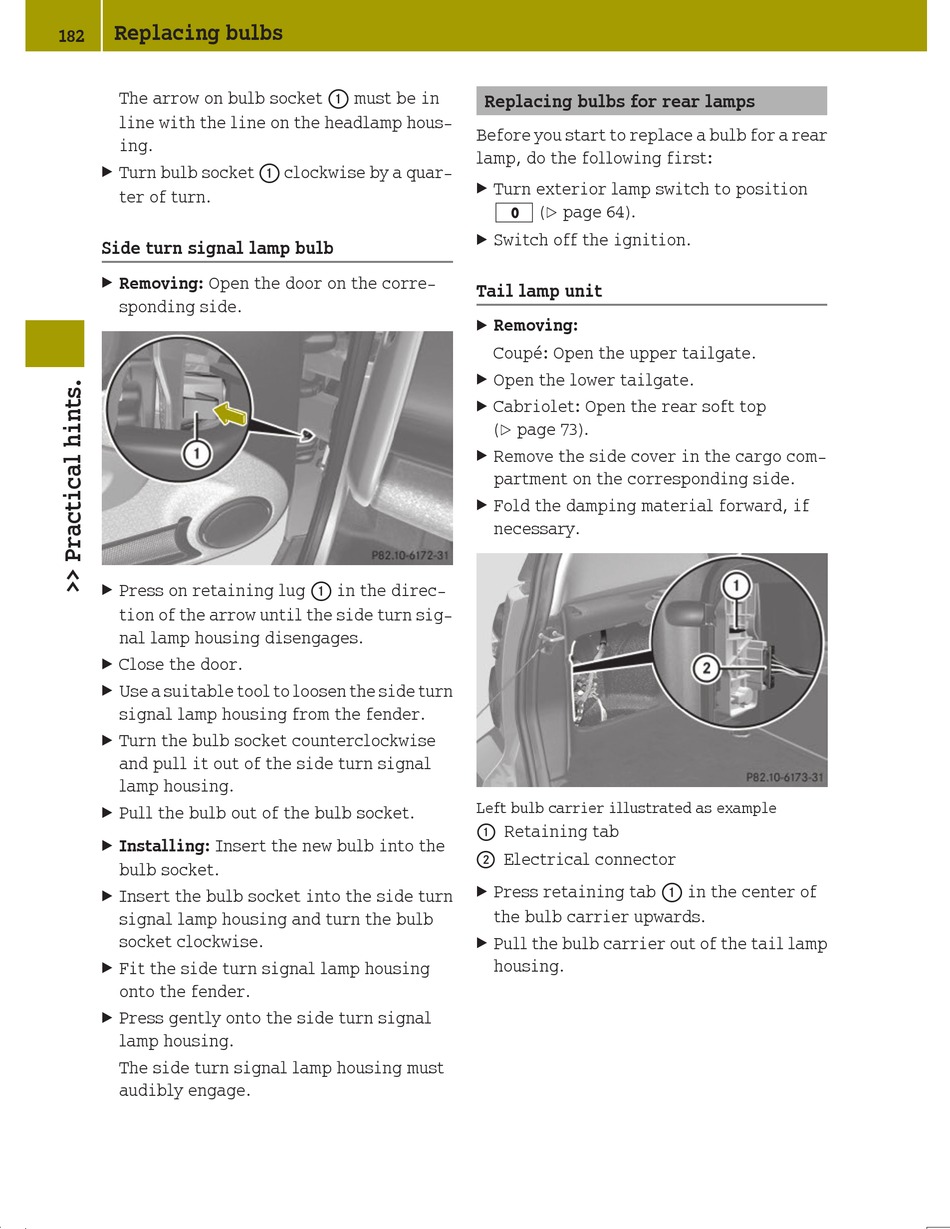

SMART For two coupé Operator's Manual page 184

Replacing bulbs
182
The arrow on bulb socket : must be in
line with the line on the headlamp hous-
ing.
Turn bulb socket : clockwise by a quar-
X
ter of turn.
Side turn signal lamp bulb
Removing: Open the door on the corre-
X
sponding side.
Press on retaining lug : in the direc-
X
tion of the arrow until the side turn sig-
nal lamp housing disengages.
Close the door.
X
Use a suitable tool to loosen the side turn
X
signal lamp housing from the fender.
Turn the bulb socket counterclockwise
X
and pull it out of the side turn signal
lamp housing.
Pull the bulb out of the bulb socket.
X
Installing: Insert the new bulb into the
X
bulb socket.
Insert the bulb socket into the side turn
X
signal lamp housing and turn the bulb
socket clockwise.
Fit the side turn signal lamp housing
X
onto the fender.
Press gently onto the side turn signal
X
lamp housing.
The side turn signal lamp housing must
audibly engage.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn exterior lamp switch to position
X
$ ( page 64).
Y
Switch off the ignition.
X
Tail lamp unit
Removing:
X
Coupé: Open the upper tailgate.
Open the lower tailgate.
X
Cabriolet: Open the rear soft top
X
( page 73).
Y
Remove the side cover in the cargo com-
X
partment on the corresponding side.
Fold the damping material forward, if
X
necessary.
Left bulb carrier illustrated as example
Retaining tab
:
Electrical connector
;
Press retaining tab : in the center of
X
the bulb carrier upwards.
Pull the bulb carrier out of the tail lamp
X
housing.
