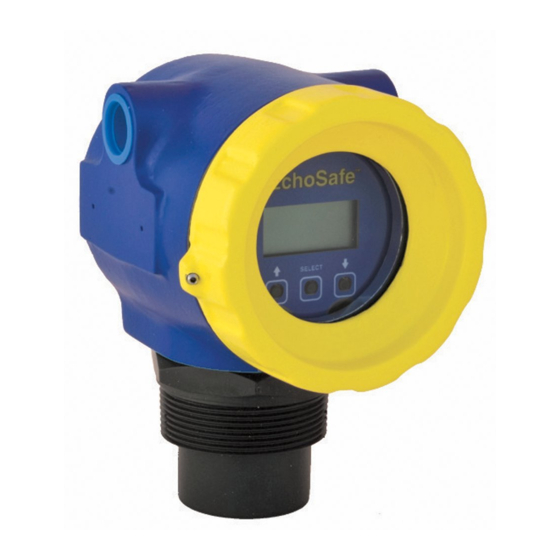

Echosafe explosion-proof ultrasonic level transmitter
Hide thumbs Also See for XP88:

Advertisement

Quick Links

Warranty, Service & Repair
To register your product with the manufacturer, go to the Flowline
website for on-line registration. The website address is as fol-
lows:
www.flowline.com
On-line Warranty Registration can be found under Contact Us on
the Navigation Bar along the side of the home page.
If for some reason your product must be returned for factory ser-
vice, contact Flowline Inc. at (562)598-3015 to receive a Material
Return Authorization number (MRA), providing the following
information:
1. Part Number, Serial Number
2. Name and telephone number of someone who can answer
technical questions related to the product and its applica-
tion.
3. Return Shipping Address
4. Brief Description of the Symptom
5. Brief Description of the Application
Once you have received a Material Return Authorization number,
ship the product prepaid in its original packing to:
Flowline Factory Service
MRA _____
10500 Humbolt Street
Los Alamitos, CA 90720
To avoid delays in processing your repair, write the MRA on the
shipping label. Please include the information about the malfunc-
tion with your product. This information enables our service tech-
nicians to process your repair order as quickly as possible.
WARRANTY
Flowline warrants to the original purchaser of its products that such
products will be free from defects in material and workmanship under
normal use and service for a period which is equal to the shorter of
one year from the date of purchase of such products or two years from
the date of manufacture of such products.
This warranty covers only those components of the products which
are non-moving and not subject to normal wear. Moreover, products
which are modified or altered, and electrical cables which are cut to
length during installation are not covered by this warranty.
Flowline's obligation under this warranty is solely and exclusively
limited to the repair or replacement, at Flowline's option, of the
products (or components thereof) which Flowline's examination
proves to its satisfaction to be defective. FLOWLINE SHALL
HAVE NO OBLIGATION FOR CONSEQUENTIAL DAMAGES
TO PERSONAL OR REAL PROPERTY, OR FOR INJURY TO ANY
PERSON.
This warranty does not apply to products which have been subject
to electrical or chemical damage due to improper use, accident, neg-
ligence, abuse or misuse. Abuse shall be assumed when indicated
by electrical damage to relays, reed switches or other components.
The warranty does not apply to products which are damaged during
shipment back to Flowline's factory or designated service center or
are returned without the original casing on the products. Moreover,
this warranty becomes immediately null and void if anyone other
than service personnel authorized by Flowline attempts to repair the
defective products.
®
EchoSafe Explosion-Proof
Ultrasonic Level Transmitter
Model XP88 / XP89
Owner's Manual
Version 1.1
© 2007 FLOWLINE Inc.
All rights reserved.
Manual # MN300600 B
Products which are thought to be defective must be shipped prepaid
and insured to Flowline's factory or a designated service center (the
identity and address of which will be provided upon request) within
30 days of the discovery of the defect. Such defective products must
be accompanied by proof of the date of purchase.
Flowline further reserves the right to unilaterally waive this warranty
and to dispose of any product returned to Flowline where:
a. There is evidence of a potentially hazardous material present
with product.
b. The product has remained unclaimed at Flowline for longer than
30 days after dutifully requesting disposition of the product.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE OF THIS WARRANTY.
This warranty and the obligations and liabilities of Flowline under
it are exclusive and instead of, and the original purchaser hereby
waives, all other remedies, warranties, guarantees or liabilities,
express or implied. EXCLUDED FROM THIS WARRANTY IS
THE IMPLIED WARRANTY OF FITNESS OF THE PRODUCTS
FOR A PARTICULAR PURPOSE OR USE AND THE IMPLIED
WARRANTY OF MERCHANT ABILITY OF THE PRODUCTS.
This warranty may not be extended, altered or varied except by a writ-
ten instrument signed by a duly-authorized officer of Flowline, Inc.
We Do Your Level Best
RoHS
Compliant
