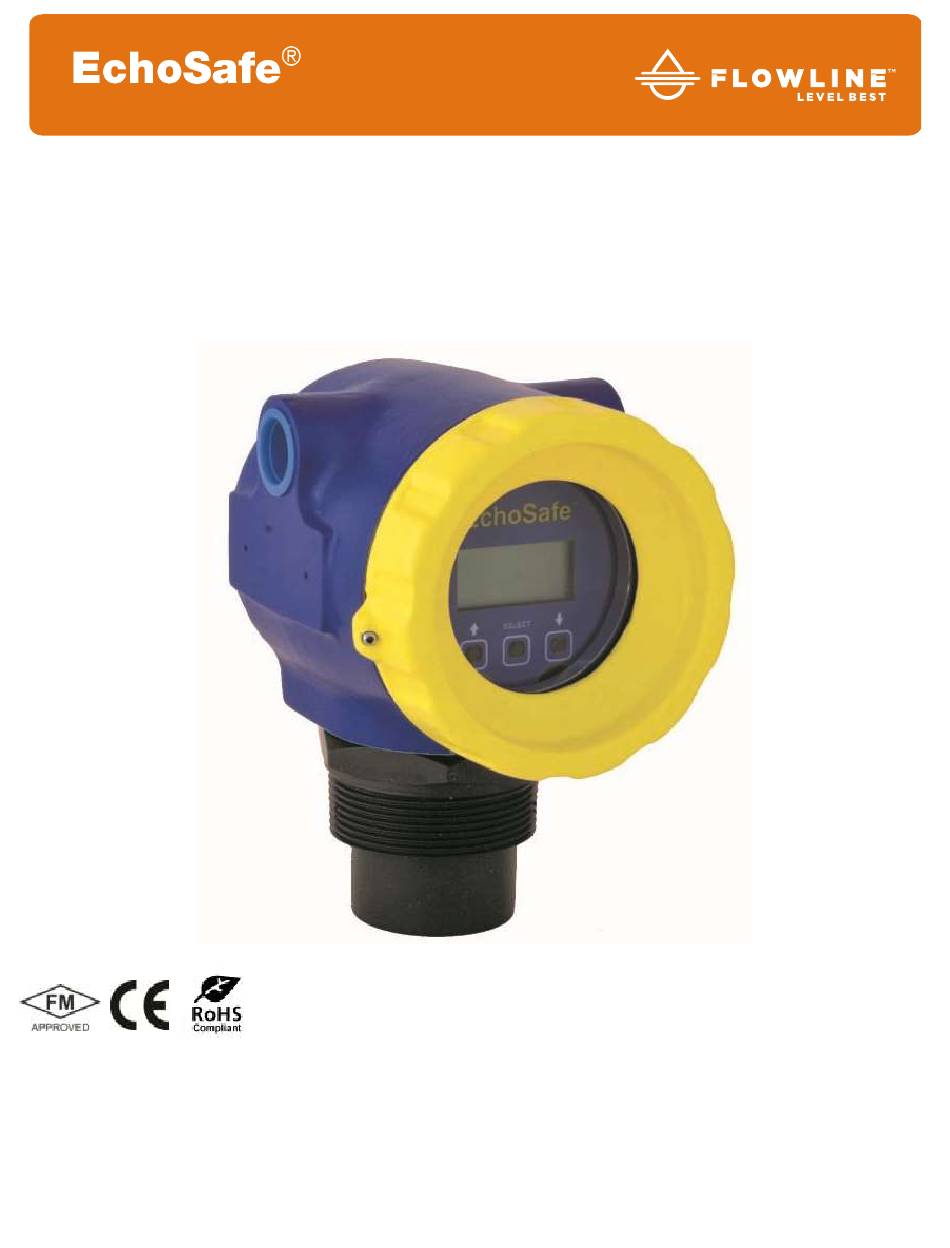

- Page 1 Ultrasonic Liquid Level Transmitter XP88 & XP89 Series Quick Start ©2016 Flowline, Inc. All Rights Reserved Made in USA Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 p 562.598.3015 f 562.431.8507 w flowline.com QS300600 Rev B1...
- Page 2 If you have a non-standard installation or setup requirement that is not ® addressed here, please refer to the EchoSafe Manual or other support documentation located at flowline.com. WE DO YOUR LEVEL BEST ® Thank you for purchasing EchoSafe .
- Page 3 12". For best results, follow a 2:1 Height to Inner Diameter ratio (example: 8” High to 4” Inner Diameter). MOUNTING IN SIDE MOUNT BRACKET Use Flowline's LM50-1001 side mount bracket. LM50-1001 Shown QS300600 Rev B1...
- Page 4 IMPORTANT MOUNTING GUIDELINES 1) Never mount the sensor at an angle. 2) Liquid should never enter the dead band. 3) Mount at least 3” from the side wall. 4) Never mount the sensor in a vacuum. 5) Do not obstruct the sensor’s beam width. MOUNTING WITH A STAND-PIPE A stand-pipe may be used to dampen turbulence, separate surface foam from the point of measurement or increase performance in heavy vapor.
- Page 5 ® WIRING THE ECHOSAFE ® The following wiring diagram can be used for the 4-20 mA output of the EchoSafe NOTES ON SAFETY Where personal safety or significant property damage can occur due to a spill, the installation must have a redundant backup safety system installed.
- Page 6 TOP-LEVEL MENU The sensor is configured with the three buttons on the sensor face (UP, DOWN and SELECT) and the sensor’s LCD. To access the sensor’s Top-level menu, simply hold down the SELECT button for five seconds. The display menu will automatically begin to scroll through the TOP-LEVEL MENU.
- Page 7 2) Select 4mA, 20mA, 21mA, 22mA or HOLD. SAVED will display. 3) Select EXIT to return to the TOP-LEVEL MENU. TROUBLESHOOTING If you face any issues not addressed in this Quick Start, please refer ® Manual located on Flowline’s website at to the EchoSafe flowline.com. QS300600 Rev B1...
- Page 8 PERSON IS AUTHORIZED TO MAKE ANY OTHER WARRANTIES OR REPRESENTATIONS ON BEHALF OF FLOWLINE. This warranty will be interpreted pursuant to the laws of the State of California. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision of this warranty.
