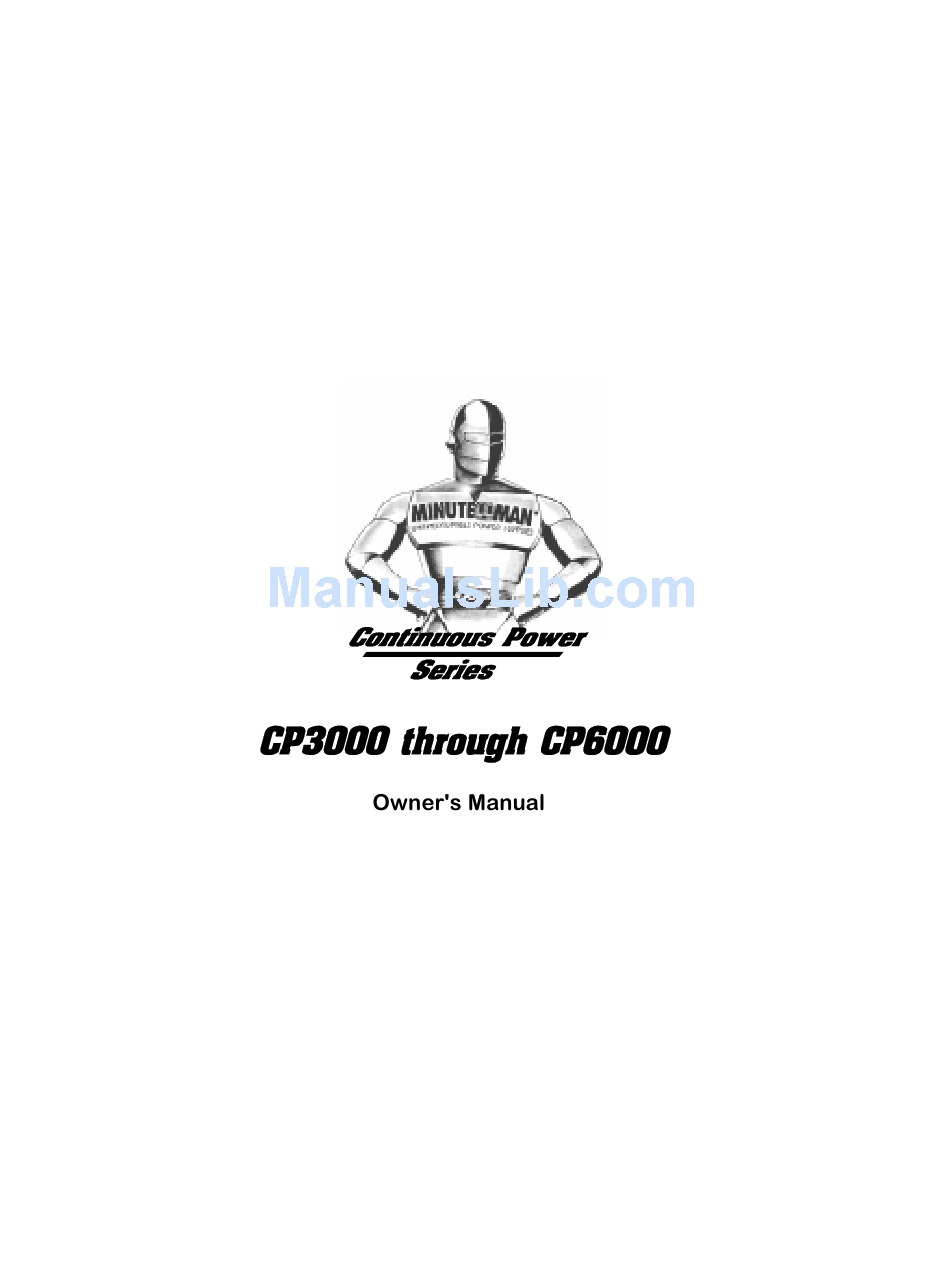

Minuteman Continuous Power Series Owner's Manual

Continuos power series

Advertisement

Quick Links

Advertisement

loading

Summary of Contents for Minuteman Continuous Power Series

  • Page 2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO THE FACTORY...
  • Page 6 24.0 in 16.0 in (61.0 cm) (40.6 cm) 5.0 & 6.0 KVA 2.1 & 3.1 KVA Tower Tower 16.0 in (40.6 cm) 19.0 in (48.2 cm) Including mounting wings 2.1 & 3.1 KVA Rack-Mount...
  • Page 7: Front Panel

    AUTO TRANSFER Utility INPUT AC/DC DC/AC OUTPUT SWITCH Source • Inverter • Filter • Rectification STD 5-15R + • Output Voltage • Back feed • Amplification Hard wire wave shaping • Redundancy protection • Input current • Hard wire • Synchronizing •...
  • Page 11 Standard Optional RS-232 Port Start-On-Battery Switch Optional Second RS-232 Relay Interface Port REPO Port 5-15R Standard Receptacles Ext. Battery Conduit Hole Connector Circuit Breakers 5-15R Standard Terminal Blocks Receptacles (located behind Rear rear panel plates) Panel Plates Circuit Breaker Manual Bypass Switch (optional) Conduit Hole...
  • Page 15 Conduit Hole Terminal Blocks (behind rear panel plates) Rack-Mount...
  • Page 16 Conduit Hole Terminal Blocks (located behind Rear rear panel plates) Panel Plates Conduit Hole 5.0 & 6.0 KVA Tower 2.1 & 3.1 KVA Tower...
  • Page 17 Removed Removed Plug Cap Rear Panel Plates Knockout from second conduit hole Exposed Terminal Blocks...
  • Page 18 Grounding Grounding Studs Studs 5.0 and 6.0 KVA 2.1 and 3.1 KVA 2.1 and 3.1 KVA Tower Rack-Mount Tower...
  • Page 20 Ground Ground Neutral Neutral Line 1 Line 1 Neutral must be connected. Failure to do so can damage the unit. Ground Ground Neutral Neutral Line 1 Line 1 Line 2 Line 2 Neutral must be connected. Failure to do so can damage the unit.
  • Page 21: Battery Input

    5-15R Duplex AC INPUT (Field-Wired Models) AC Power Source Line 1 CB-1 Line 1 Line 2 Line 2 Neutral Neutral Neutral IL3(N) OL3(N) Ground Ground Ground External DC Power Source Serial Comm. Port (Std.) Ground CB-2 (30A) Dry Contacts (Std.) Positive (–) Negative...
  • Page 22 Used only for two-phase units, dead on single- phase units. Used only for two-phase units, dead on single- phase units.
  • Page 23 AC Line Cord 5 -15 Standard Receptacles Ext. Battery Connector Optional Receptacles 5.0 & 6.0 KVA Models 2.1 & 3.1 KVA Models...
  • Page 24 Standard 5-15 Circuit Receptacles Breaker Optional AC Line Cord Receptacles...
  • Page 28 Transformer Output wiring IL2* OL2* Neutral must be connected. Failure to do so can damage the unit. Two-phase models only. Used only for two-phase units, dead on single-phase units...
  • Page 29 Transformer Ground Neutral Line 1 Line 2 Neutral must be connected. Failure to do so can damage the unit. Used for two-phase units only...
  • Page 30 Ground Neutral Line 1 Line 2 Used for two-phase units only.
  • Page 31 UPS Line Cord AC Utility Outlet Output Receptacle Transformer...
  • Page 32 External Battery External Battery External Battery Connector Ext. Battery Connector External Battery Line Cord...
  • Page 33 Internal Battery Connector...
  • Page 34 Internal Battery Connector...
  • Page 36 Optional Second RS-232 Start-On-Battery RS-232 Relay Interface Port REPO Port...
  • Page 38 On/Off Test/Reset button button button Press once for 3 seconds to start self test Press to reset alarm Press once to place UPS in Press once Press both buttons to bypass mode. Press again to to turn turn off power to rear place UPS back into operational mode.
  • Page 40: Ac Input Leds

    LOAD LEDs AC INPUT LEDs Line 1* Line 2* Line voltage high, UPS overload BATTERY on battery green LEVEL LEDs 75-100% UPS on AC input. If LED green green > 90% is not lit UPS is on battery 50-75% green power.
  • Page 42 ←LED 18 LED 8→ LED 13→ LED 3→ ←LED 17 LED 7→ LED 12→ ←LED 16 LED 6→ LED 11→ LED 2→ ←LED 15 ←LED 19 LED 5→ LED 10→ ←LED 14 LED 4→ LED 9→ LED 1→ Press button once to Press to scroll enable or disable through parameters while...
  • Page 44 Optional Second RS-232 Start-On-Battery RS-232 Relay Interface Port REPO Port...
  • Page 45 D—connector 15-pin 15 14 13 11 10 12 9 7 8 6 4 5 3 1 2 Summary Bypassed Alarm...
  • Page 57 L5-20R L5-30R 5-15R 5-20R CSA 5-20R L5-15R L6-30R L14-20R L14-30R 6-15R 6-20R L6-15R L6-20R...
