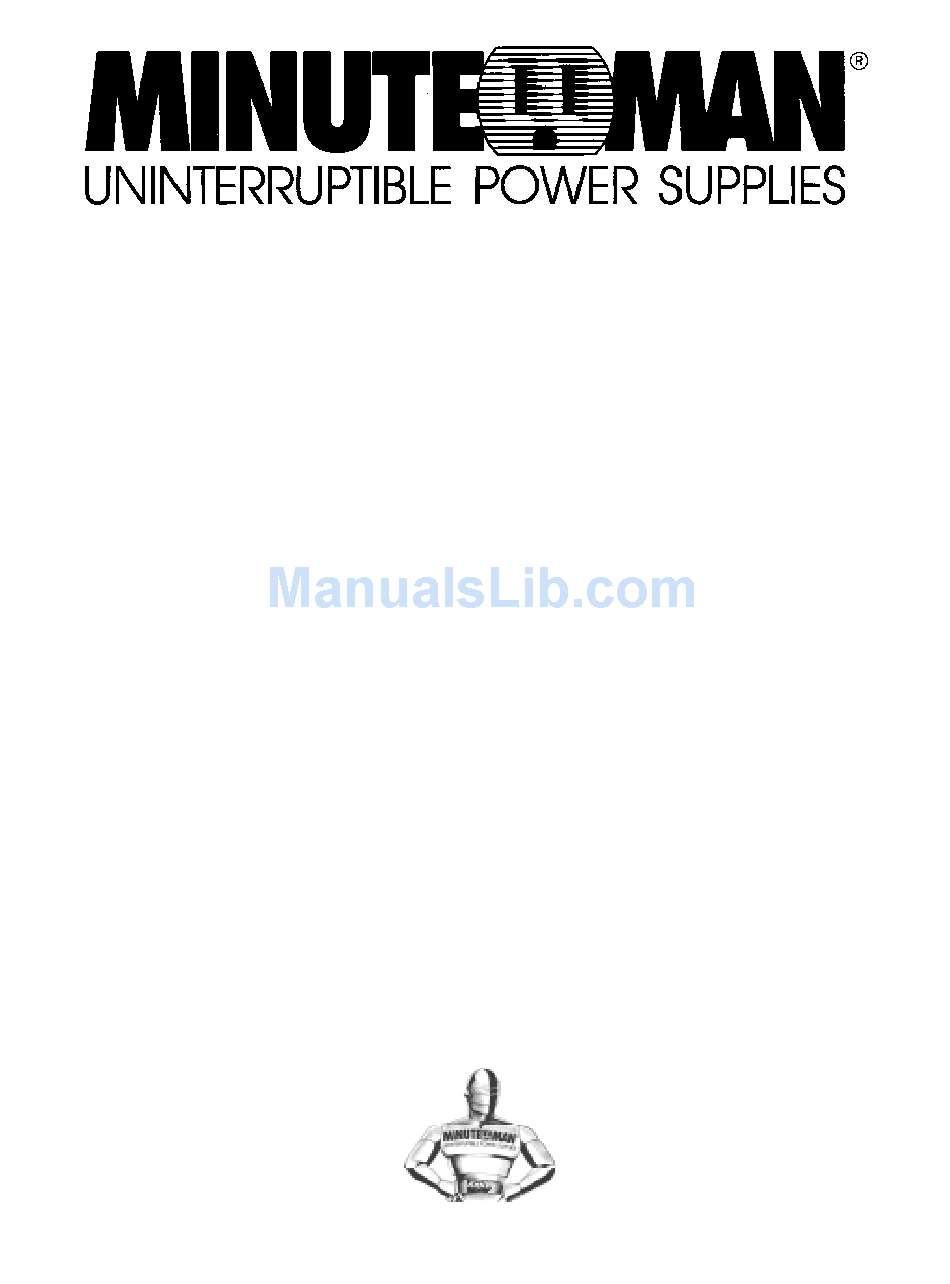

- Page 1 CP SERIES User's Manual...
-
Page 2: Table Of Contents
Table of Contents PAGE 1. INTRODUCTION 1.1 Systems Description ……………………………………………………….1 1.2 Product Specification ……………………………………………………...3 Electrical Specification …………………………………………………… 4 Mechanical Specification …………………………………………………4 Operating Environment ……………………………………………………4 Typical Battery Backup Time ……………………………………………..4 1.3 Safety ……………………………………………………………………….5 1.4 Displays and Switch ……………………………………………………….6 1.5 Communication Port ……………………………………………………….7 2. -
Page 3: Introduction
1. INTRODUCTION 1.1 SYSTEM DESCRIPTION The MINUTEMAN CP Series UPS is an advanced true on-line sinewave uninterruptible power system with bypass switch. It provides reliable, regulated, transient-free AC power to your sensitive equipment, ranging from computers and telecommunication systems to computerized instruments. - Page 4 Output Receptacle is optional, NEMA 5-15R or IEC 320.
-
Page 5: Product Specification
1.2 PRODUCT SPECIFICATION ELECTRICAL SPECIFICATION ELECTRICAL SPECIFICATION Power Rating Model Frequency Input Output (HZ) Voltage Current Voltage Current CP500 CP500 120VAC 6.0A 120VAC 4.2A Series CP500/2 220VAC 3.1A 220VAC 2.3A 500VA/350W CP1K CP1K 120VAC 120VAC 8.3A Series CP1K/2 220VAC 6.2A 220VAC 4.5A 100VA/700W... -
Page 6: Mechanical Specification
MECHANICAL SPECIFICATION MECHANICAL SPECIFICATION Model Dimension Weights (lbs) W x D x H (inches) Gross CP500 5.6 x 17.5 x 7.5 CP1K 7.5 x 17.7 x 10.4 CP2K/2 7.5 x 18.1 x 18.4 CP3K/2 7.5 x 20.7 x 19.8 OPERATING ENVIRONMENT Temperature: 0º... -
Page 7: Safety
IMPORTANT SAFETY INSTRUCTION -- SAVE THESE INSTRUCTIONS 1.3 SAFETY This manual contains important instructions for MINUTEMAN CP series that should be followed during installation and maintenance of the UPS and Batteries. CAUTION: The UPS contains voltages, which are potentially hazardous. Qualified service personnel should perform all repairs. -
Page 8: Displays And Switch
When replacing batteries, use the same number and the following type batteries: Matsushita (or Panasonic) Electric Works. Type LCR12V6.5P, rated 12V. Do not dispose of battery or batteries in a fire, the battery may explode. Do not open or mutilate the battery or batteries, released electrolyte is harmful to the skin and eyes. -
Page 9: Communication Port
FAULT LED: The light is on when the UPS is in fault condition. In the meantime, the alarm beeps continuously. LOAD LEVEL LED: The light is a bar graph and indicates how much load is on the UPS. The lights are in 25% increments. If the UPS is overloaded, the LED's show over 100%, then you have connected too many devices into the UPS. - Page 10 Pin 2: The relay will close when input power fails. Pin 3: The relay will become open when input power fails. Pin 4: Common for pins 2, 3, and 5. Pin 5: The relay will close when the battery inside the UPS has less than about 3 minutes (CP500: 1.5 minutes) of backup time left.
-
Page 11: Installation And Operation
Hardware: BAUD RATE ……………… : 2400 bps DATA LENGTH …………... : 8 bits STOP BIT …………………. : 1 bit PARITY ……………………. : NONE Cabling: COMPUTER RX →—- — — — — TX (PIN 9) TX — — — — — ≡ RX (PIN 6) DTR —... - Page 12 2. Charge the batteries for ten (10) hours before use. The UPS will recharge the batteries automatically whenever its power cord is plugged into a wall outlet. You may use the UPS immediately without recharging, but the backup time may be less than the rating. 3.
- Page 13 6. To test the UPS turn OFF commercial power by either turning OFF the breaker supplying power to the commercial receptacle, or using a switchable power strip. 7. Due to physical stability requirement for CP3K/2 series, please install the supporter to the UPS at the bottom side with two screws.
-
Page 14: Storage Instruction
2.3 STORAGE INSTRUCTION For extended storage in moderate climates, the batteries should be charged for 12 hours every 3 months by plugging the power cord into the wall receptacle. Repeat it every 2 months in high temperature locations. 3. TROUBLESHOOTING 3.1 TROUBLESHOOTING TIPS The TROUBLESHOOTING chart covers most of the difficulties that you may encounter under normal working conditions. -
Page 15: Troubleshooting Charts
Please note the following information when you call for service: 1. Model #, Serial # 2. Date of problem 3. Full description of problem 3.2 TROUBLESHOOTING CHART TROUBLESHOOTING CHART PROBLEM POSSIBLE CAUSE ACTION TO TAKE No light, no alarm (UPS Front panel switch in off position Turn on switch not ON)
