- Page 1 Continuous Power Series User’s Manual MCP 6001 MCP 10001...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 1.1 Explanation of symbols 1.2 System description 1.3 Product specification Electrical specifications Operating environment Mechanical specification 1.4 Switches and displays 1.5 Safety 1.6 Communication port 1.7 RS232 interface 2. INSTALLATION AND OPERATION 2.1 Unpacking and inspection 2.2 Installation 2.3 Wiring description 3. -
Page 3: Introduction

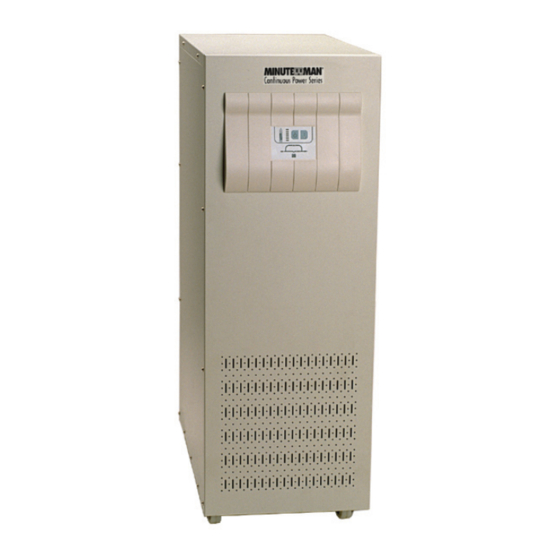

1.2 SYSTEM DESCRIPTION The MCP SERIES UPS is an advanced True On-Line sinewave Uninterruptible Power Supply (UPS) with automatic bypass. It provides reliable, regulated, transient-free AC power to your sensitive equipment, ranging from computers and telecommuni- cation systems to computerized instruments. -
Page 4: Product Specification
1.3 PRODUCT SPECIFICATIONS ELECTRICAL SPECIFICATIONS Freq. Model Power (Hz) Rating MCP 6001 6KVA 50/60 4.2KW MCP10001 50/60 10KVA INPUT Voltage: Phase: Frequency: Power factor: OUTPUT Output voltage regulation: Power factor: Frequency regulation: Distortion: Overload Capacity: Load Crest Ratio OPERATING ENVIRONMENT Ambient temperature: Operation humidity: Altitude:... -
Page 5: Switches And Displays
UPS will go to battery mode when AC line power fails and the bar graph displays remaining battery capacity. The number of “ON” LEDs decreases upwards with the decreasing of battery capacity. MCP Control Panel MCP 10001 Rear View Page 3... -
Page 6: Safety
1.5 Safety IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions for MCP SERIES series that SHOULD BE FOLLOWED DURING INSTALLATION AND MAINTENANCE of the UPS and the batteries. The sound pressure level at the operator’s position is equal to or less than 60dB(A). -
Page 7: Hazardous Voltage
CAUTIONS: The UPS contains voltages which are potentially hazardous. All repairs should be performed by qualified service person- nel. The UPS has its own internal energy source (battery). The output may be ‘hot” even when the UPS is not connected to the AC supply. -
Page 8: Communication Port
1.6 COMMUNICATION PORT The UPS provides an RS232 serial port to communicate with a host computer. The host computer can monitor the UPS through this RS232 communication port. The data format of RS232 is as follows: Baud Rate : 2400 bps Data Length : 8 bits Ending Code : 1 bit Parity Bit : none... -
Page 9: Wiring Description
2.3 WIRING DESCRIPTION The wiring method for the MCP SERIES is shown in Figure A. REAR VIEW Wiring Instructions: 1. Utility panel circuit breaker required is 35A or larger 2. Utility wire guage must be 8 guage or larger. 3. Connect utility per drawing. 4. - Page 10 OUTPUT VOLTAGE CONFIGURATIONS OUTPUT CONFIGURATION #1 = 120VAC 120VAC OUTPUT CONFIGURATION #2 = 120VAC / 120VAC 120VAC OUTPUT CONFIGURATION #3 = 208VAC OUTPUT CONFIGURATION #4 = 120VAC / 208VAC 120VAC 208VAC 120VAC 120VAC 208VAC Page 8...
- Page 11 OUTPUT CONFIGURATION #5 = 240VAC OUTPUT CONFIGURATION #6 = 120VAC / 240VAC 120VAC When using an isolation tranasformer, ensure that the load is balanced. When using #6 AWG wire 2 in. are required for wire bending space opposite the terminals. 1 1/2 in. for #8 AWG. 3 in.
-
Page 12: Troubleshooting
Possible cause UPS failure Battery is not fully charged, dead battery, charger failure Overloaded Para Systems Inc. MINUTEMAN UPS 1455 LeMay Drive Carrollton, Tx. 75007 ATTN: RMA# Page 10 Problem Call for service Recharge battery for at least 6 hours, retest the backup time. -
Page 13: Application Notes
APPLICATION NOTES 1. START-UP 1. Turn on Input breaker and the Battery breaker (10KVA) on the rear panel after checking the power wiring. The cooling fans should be rotating and the control panel should show the display as below. Figure 1.1-1 Bypass Mode (Load LED display depends of load level) 2. -
Page 14: Displays And Alarms
3. DISPLAYS AND ALARMS 1. Load level and battery capacity is represented by 5 LEDs on the upper half of control panel (the 6th LED means FAULT). (A). When the UPS is in the On-Line mode, the 5 LEDs represent load level. They denote 0%~35%, 35%~55%, 55%~75%, 75%~95% and 95%~105% (from buttom to top) of maximum load capacity. -
Page 15: Display And Alarm For Overload
4. An alarm sounds continuously during an over-temperature condition. Figure 3.4-1 Line Mode 5. Display and alarm for overload. The alarm will sound once every 0.5 seconds during an overload condition. While in inverter mode, the alarm can be silenced by pressing the “OFF”... -
Page 16: Alarm For Abnormal Input Voltage
7. Alarm for abnormal input voltage. A) During Start-up, the Line LED will flash if the input voltage drops below 185V or above 261V. Pressing the “|” button will not switch the UPS from Bypass Mode to Inverter Mode. (B)During operation, the UPS will switch from Inverter Mode to Battery Mode if the input voltage drops below 170V or above 276V. -
Page 17: Inverter Sts Short Alarm
10. Inverter STS short alarm. The system will detect if the inverter STS is shorted when the “ON” button on the control panel is pressed. If the STS short is detected, the display shows as below and the alarm sounds continuously. Figure 10.1 Inverter STS short alarm LIMITED PRODUCT WARRANTY Para Systems Inc. -
Page 18: Declaration Of Conformity
Year of Manufacture: Beginning 1998_ I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s). Shawn Delavar (Signature) Regulatory Compliance Engineer (Position) Place: Carrollton, Tx USA (MINUTEMAN UPS)_ _____Shawn Delavar____ (Name) Date: December 14, 1998 Page A6... - Page 19 Notes:...
- Page 20 Para Systems, Inc. 1455 LeMay Dr. Carrollton, TX 75007 Phone: (972) 446-7363 Fax: (972) 446-9011 Internet: www.minutemanups.com UPS Sizing: sizemyups.com P/N 34000139 Rev: 1...
