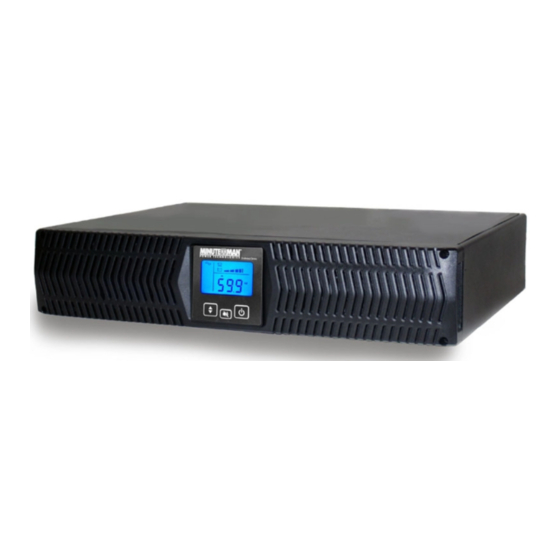

- Page 1 Endeavor LCD RTXL UPS Series User's Manual Para Systems, Inc. 1455 Lemay Dr. Carrollton, TX 75007 Phone: 1-972-446-7363 Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com PN - 34000516 R2...
-
Page 2: Table Of Contents
Table Of Contents Introduction Controls and Indicators Installation Operation Configurable Parameters & Settings Obtaining Service Troubleshooting Replacing the Battery Specifications Limited Product Warranty A1. Declaration of Conformity... -
Page 3: Introduction
WARNING: Qualified Service Personnel ONLY must perform the Installa- To ensure reliable operation of the UPS and to protect the UPS from over- tion and Servicing of these UPS systems. MINUTEMAN accepts no liabilities heating, these vents and openings must not be blocked or covered. Do not and is not limited to: injury to the Service Personnel, or damages to;... - Page 4 CAUTION! Receiving Inspection To de-energize the outputs of the UPS: After removing your UPS from its carton, it should be inspected for damage 1. If the UPS is On press and release the On/Off/Test button. that may have occurred in shipping. Immediately notify the carrier and place 2.
-
Page 5: Controls And Indicators
Chapter 2: Controls and Indicators The Battery Capacity Bar Graph operates as follows: LED #1: When the battery capacity is >20% the LED will illuminate. LED #2: When the battery capacity is >40% the LED will illuminate. LED #3: When the battery capacity is >60% the LED will illuminate. LED #4: When the battery capacity is >80% the LED will illuminate. -
Page 6: Installation
REAR PANEL Chapter 3: Installation INSTALLATION PLACEMENT This UPS series is ONLY intended to be installed in an indoor temperature controlled environment that is free of conductive contaminants. DO NOT oper- ate the UPS in: extremely dusty and/or unclean areas, locations near heating devices, water or excessive humidity, or where the UPS is exposed to direct 1. - Page 7 RACKMOUNT CONFIGURATION CONNECTING THE BATTERIES (QUALIFIED SERVICE PERSONNEL ONLY) This UPS series comes with mounting brackets for the standard 19" (46.5cm) Please read all of the WARNINGS and CAUTIONS before attempting to con- rack pre-installed on the UPS. The mounting brackets to fit a 23" (59.2cm) nect the batteries.
- Page 8 TOWER CONFIGURATION WALLMOUNT CONFIGURATION The tower configuration allows the user to install the UPS in the up-right position The wallmount configuration allows the user to mount the UPS on the wall. There is next to a tower computer. The tower brackets are provided with the UPS. WARNING: a wallmount bracket kit available for the UPS.
-
Page 9: Operation
CONNECTING YOUR EQUIPMENT RJ11 EPO (Emergency Power Off) PORT (OPTIONAL) Connect one end of the RJ11 cable to the EPO port and the other end of the RJ11 cable Plug the equipment into the output receptacles on the rear panel of the UPS. Ensure that to the EPO switch. - Page 10 EMERGENCY POWER OFF (EPo) FUNCTION Block Diagram of the Basic Wiring and Internal Circuit Configuration Connect one end of the RJ11 cable to the REPO port and the other end of the RJ11 cable to the EPO switch. In the AC or the Battery mode short pin4 to pin5 for approximately 0.5-seconds to shutdown the UPS.
- Page 11 Downloads, and then Software Download Center. Please download (Free of Charge) the latest version (These items may require optional software or hardware) of the Minuteman SentryHD software. See the software CD for the installation of User Choices Description...
-
Page 12: Obtaining Service
The UPS has an internal fault. Call for service. Error Code: E22. Output volt- Para Systems Inc. age abnormal. MINUTEMAN UPS Error Code: E23. Low battery The batteries are too low to for the UPS to DC start. Charge the 1809 W. Frankford Road, Suite 150 DC start shutdown. -
Page 13: Replacing The Battery
Chapter 8: Replacing the Battery BATTERY REPLACEMENT PROCEDURE PLEASE READ THE CAUTIONS AND WARNINGS BEFORE ATTEMPTING QUALIFIED SERVICE PERSONNEL ONLY TO REPLACE THE BATTERY MODULE Hot-swappable batteries mean that the battery modules can be replaced with- Please read all of the WARNINGS and CAUTIONS before attempting to ser- out powering down the whole UPS system. -
Page 14: Specifications
8. Remove the two retaining screws for the battery retaining bracket. (FIG. 3) Chapter 9: Specifications 9. Remove the battery retaining bracket. (FIG. 3) 10.Disconnect the Battery connectors (red and black). (FIG. 4) SYSTEM SPECIFICATIONS 11. Grasp the battery pull tab and gently pull the battery module out of the UPS and set aside. -
Page 15: Limited Product Warranty
Chapter 10: Limited Product Warranty SURGE PROTECTION AND FILTERING Surge Energy Rating 1000 Joules Para Systems, Inc. (Para Systems) warrants this equipment, when properly applied and Surge Current Capability 6500 Amps total operated within specified conditions, against faulty materials or workmanship for a pe- riod of five (5) years from the date of purchase. -
Page 16: A1. Declaration Of Conformity
EN62040-2, IEC61000-2-2 IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEEE C62.41 Category A1, UL1778, CSA 22.2 no. 107.3-14, FCC Class A and Class B Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS) Manufacturer’s Address: 1455 LeMay Drive Carrollton, Texas 75007 USA Type of Equipment: Uninterruptible Power Supplies (UPS)
