manufacturer. On standard fans, the red is positive (+12V), the black is ground, and
the yellow wire is the rotation signal. Connect the north-bridge cooling fan to FAN3.

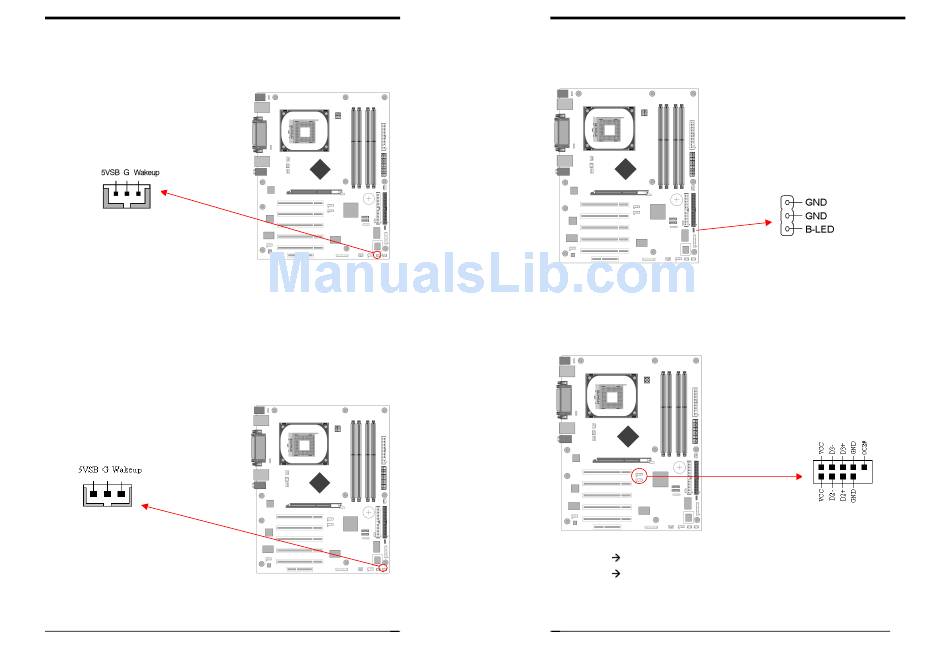

CN5 [WOL (Wake-on-LAN) Connector]:
Enable the Wake Up On LAN selection in BIOS's Power Management Menu to use
this function. The capability to remotely manage PCs over networks is a significant
factor in reducing administrative and ownership costs. Magic Packet technology is
designed to give WOL function to LAN controller. This header is used to connect an
add-in NIC (Network Interface Card) that provides WOL function to the
motherboard.
CN5A [WOM (Wake-on-Modem) Connector]:
Enable the Wake Up On Modem selection in BIOS's Power Management Menu to
activate this function. This header is used to connect an add-in modem card, which
Chapter 2
21
Chapter 2
provides WOM function to the motherboard.
CN17 (Blue LED Connector)
This feature works exactly the same as the power indicator LED, of which both
indicate the system's power status. The only difference is that this one is blue while
the other one is red.
CN23/CN23A (CBOX™ 3 Front USB Connector for USB 2/3 and 4/5):
USB Port 2/3 CN23
USB Port 4/5 CN23A
If you want to use a USB Keyboard, you must enable the USB keyboard support
function in BIOS's Integrated Peripherals menu (See Section 3.4). This board
