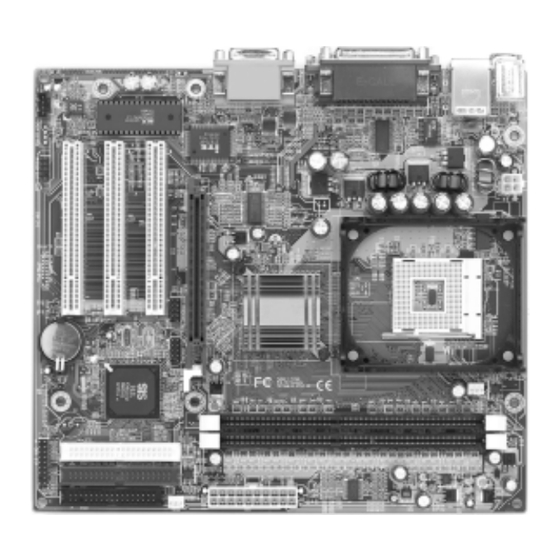

CHAINTECH 9SIF7 User Manual

Intel socket 478 sis 650gx / 645dx + 962l u-atx motherboard
Hide thumbs

Advertisement

Quick Links

Download this manual
9SIF7 / 9SIL7
Declaration of Conformity
Motherboard
According to 47 CFR, Parts 2 and 15 of the FCC Rules
The following designated product:
EQUIPMENT: MAINBOARD
MODEL NO.: 9SIF7 / 9SIL7
Intel® Socket 478
SiS® 650GX / 645DX + 962L
is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC
Rules. Operation is subject to the following two conditions:
u-ATX Motherboard
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
This declaration is given to the manufacturer:
User's Guide
CHAINTECH-EXCEL COMPUTER INC.
4427 Enterprise St. Fremont, CA 94538, U.S.A.
http://www.chaintech-excel.com
V2.0
Chaintech President: Simon Ho
Signature:

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9SIF7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHAINTECH 9SIF7

Summary of Contents for CHAINTECH 9SIF7

  • Page 1 According to 47 CFR, Parts 2 and 15 of the FCC Rules The following designated product: EQUIPMENT: MAINBOARD MODEL NO.: 9SIF7 / 9SIL7 Intel® Socket 478 SiS® 650GX / 645DX + 962L is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules.
  • Page 2 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: * This device may not cause harmful interference. * This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Chapter 1 Introduction.............1 1-1 Product Specifications..................1 1-2 Package Contents .................... 2 1-3 9SIF7 / 9SIL7 Motherboard Diagram ............. 3 1-4 9SIF7 / 9SIL7 Motherboard Layout..............4 Chapter 2 Hardware Setup ............5 2-1 Installing a CPU Processor for Socket 478 ............. 5 2-2 Setting Your CPU’s Performance..............
  • Page 4 Supports the Intel® Pentium 4 system bus at 400/533(9SIL7) MHz Boot-Block Flash ROM Chipset Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting SiS® 650GX(9SIF7) / 645DX(9SIL7) + 962L Chipset features Main Memory Supports two 184-pin Double Data Rate (DDR) DIMM up to 2GB...
  • Page 5 Chapter 1 Chapter 1 1-3 9SIF7 / 9SIL7 Motherboard Diagram 1-4 9SIF7 / 9SIL7 Motherboard Layout...
  • Page 6 Chapter 2 Chapter 2 By turning on your system’s power. Enable the CMOS Setup Utility by pressing the Chapter 2 Hardware Setup delete key when your BIOS identification screen appears, then go to the Frequency/ If your motherboard has already been installed in your computer you may still need Voltage control option and select your CPU clock ration and CPU clock speed to refer to this chapter if you plan to upgrade your system's hardware.
  • Page 7 Chapter 2 Chapter 2 power supply provides a single 20-pin connector interface, which incorporates 2-4 Connector and Jumper Reference Chart standard +/-5V, +/-12V, optional 3.3V and Soft-power signals. The Soft power signal, Jump Connector Function Page a 5V trickle supply is continuously supplied when AC power is available. When the PW1 / 3 ATX Power Supply Connector system is in the Soft-Off mode, this trickle supply maintains the system in its...
  • Page 8 Chapter 2 Chapter 2 FDD1 (Floppy Connector) JP1 (CMOS Clear Jumper) Definition 1-2 Normal (default) 2-3 Clear CMOS Data This motherboard provides a standard floppy disk drive connector that supports There is a CMOS RAM on board that has a power supply from external battery to 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
  • Page 9 Chapter 2 Chapter 2 FAN1 / FAN2 (CPU/System Cooling Fan Connectors) than [4 seconds] will switch the system completely off. See Over-ride Power Button Operation diagram. 2. P-LED (Power LED Connector): The power indicator LED shows the system's power status. It is important to pay attention to the correct cables and pin orientation (i.e., not to reverse the order of these two connectors.) 3.
  • Page 10 Chapter 2 Chapter 2 CN5 [WOM (Wake-on-Modem) Connector] CN23 / 23A (USB Connector for USB 0/1, 4/5) Enable the Wake Up On Modem selection in BIOS's Power Management Menu to If you want to use a USB Keyboard, you must enable the USB keyboard support use this function.
  • Page 11 Chapter 3 Chapter 3 Chapter 3 BIOS Setup Program 3-1 Standard CMOS Setup The Standard CMOS Setup allows users to configure system components such as hard Phoenix-Award BIOS ROM has a built-in setup program that allows users to modify disk drive, floppy disk drive and video display as well as date, time and boot-up error the basic system configuration.
  • Page 12 Chapter 3 Chapter 3 Halt On CPU L2 Cache ECC Checking When the system is powered on, BIOS performs a series of diagnostic tests called Enable this function for the CPU L2 Cache Error Checking and Correcting (ECC) POST (Power On Self Test). This function stops the computer if BIOS detects a operation.
  • Page 13 Chapter 3 Chapter 3 Security Option 3-3 Advanced Chipset Features The Supervisor and/or User Password functions shown in Figure 3-1 must be set to By choosing the [Advanced Chipset Features] option from the CMOS Setup Utility take advantage of this function. See Section 3.11 for password setting information. menu (Figure 3-1), the screen below is displayed.
  • Page 14 [Disabled] and [15M – 16M]. AGP Aperture Size (9SIF7 Only) This function determines the amount of system memory that is given to the AGP card. Options range from 4MB to 256MB. This is a dynamic memory allotment in that the AGP card will only use the amount of memory that it needs.
  • Page 15 Chapter 3 Chapter 3 1. Internal PCI/IDE 5. SIS AC97 Audio This field allows you to enable either the primary IDE channel or secondary IDE This feature allows you to [Enabled] or [Disables] the on-board AC97 audio channel, or both. function.
  • Page 16 System Share Memory Size (9SIF7) 2. V/H SYNC+Blank - The system turns off the vertical and horizontal This feature sets the size of shared memory for VGA graphic data.
  • Page 17 Chapter 3 Chapter 3 Power Button Override 3-6 PNP/PCI Configurations When set to Delay 4 Sec., this function allows the power button to put the system in This section provides IRQ and DMA setting information. By choosing the PNP/PCI Suspend, a power saving mode. When set to Instant-Off the Soft-Off by PWR-BTN Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen function is disabled and the computer turns completely off when the power button is below is displayed.
  • Page 18 Chapter 3 Chapter 3 3-7 Frequency/Voltage Control 3-8 Load Fail-Safe Defaults By choosing the Frequency/Voltage Control option from the CMOS Setup Utility Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS Setup menu (Figure 3-1), the screen below is displayed. This sample screen contains the Utility menu (Figure3-1).
  • Page 19 Chapter 4 Chapter 4 3. To restart you computer now, select [Yes, I want to restart my computer now.] Chapter 4 Driver Setup Then please click [Finish] to restart you computer. If you do not want to restart Please insert the driver CD into the CD-ROM, the setup utility will automatically start your computer select [No, I will restart my computer later.] then click [OK] to if it does don’t start please click My computer, then select your CD-ROM drive, then continue.
  • Page 20 Chapter 4 Chapter 4 4-3 Video Application (9SIF7 only) 3. Please, click [Next>] to continue install SiS IDE Driver. 1. Please, select [Video Application] to begin installation. 2. Please, click [NEXT>] to start installation. 4. To restart you computer now, select [Yes, I want to restart my computer now.] Then please click [Finish] to restart you computer.
  • Page 21 Chapter 4 Chapter 4 4. Please, click [Next>] to continue installing the Video Application. 7. To restart you computer now, select [Yes, I want to restart my computer now.] Then please click [Finish] to restart you computer. If you do not want to restart your computer select [No, I will restart my computer later.] then click [OK] to continue.
  • Page 22 Chapter 4 Chapter 4 4-5 LAN Driver 3. Please, click [Next>] to install the Audio Driver. 1. 1. Please, select [LAN Driver] to begin installation. 2. Please, click [NEXT>] to start installation. 4. To restart you computer now, select [Yes, I want to restart my computer now.] Then please click [OK] to restart you computer.
  • Page 23 Chapter 4 Chapter 5 4-6 USB 2.0 Driver Chapter 5 How to update your BIOS? 1. Please, select [USB 2.0 Driver] to begin installation. Updating BIOS may result an unstable system. All the data of the old BIOS 2. Please, click [Yes] to continue. will be replaced by the new BIOS.
  • Page 24 Chapter 5 NOTE On the screen the program will ask for the [File Name to Program]. Type in the exact name of the BIOS update binary file, including the *.BIN, and press [ENTER]. The program will now ask you if you want to save your current BIOS version.
  • Page 25 How To Contact CHAINTECH How To Contact CHAINTECH Please do not hesitate to contact us if you have any problem about our products. Any opinion will be appreciated. For Asia, Africa, Australia and Pacific Island: For America: CHAINTECH COMPUTER CO., LTD CHAINTECH AMERICA CORP.
