2. Power On by Modem:
When enabled, a Modem will be able to receive a signal and activate the system
from soft off and green mode. You should connect the modem to the COM port and
signal your PC to power on.
3. Wake up on LAN:
When enabled, a LAN that receives a signal will activate the system from soft off
and green mode.
4. USB KB Wake –up From S3:
Enables the system to be activated from S3 power-saving modes. Settings are
[Enabled] and [Disabled].
5. Power On by Alarm:
When enabled, this setting allows the system to turn back on at specified date of
the month. User must designate date of month and time of day.
This function is only available when using an ATX power supply and the Software
Power-Off function to turn off the computer.
6. POWER ON Function:
This function enables PS/2 mouse and keyboard to power on the system. Available
settings are [Password], [Hot KEY], [Mouse Move], [Mouse Click], [BUTTON
ONLY] and [Keyboard 98].
7. KB Power ON Password:
If POWER ON function is set to [Password], then you can seta password for the
PS/2 keyboard to power on the system.
8. Hot Key Power ON:
If POWER ON function is set to [Hot Key], you can assign hot key combinations
from [Ctrl –F1] to [Ctrl-F12] for the PS/2 keyboard to power on the system.
Chapter 3
45
Chapter 3

3-6 PNP/PCI Configurations

This section provides IRQ and DMA setting information. By choosing the PNP/PCI
Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen
below is displayed. This screen contains the manufacturer's default values for the
motherboard.

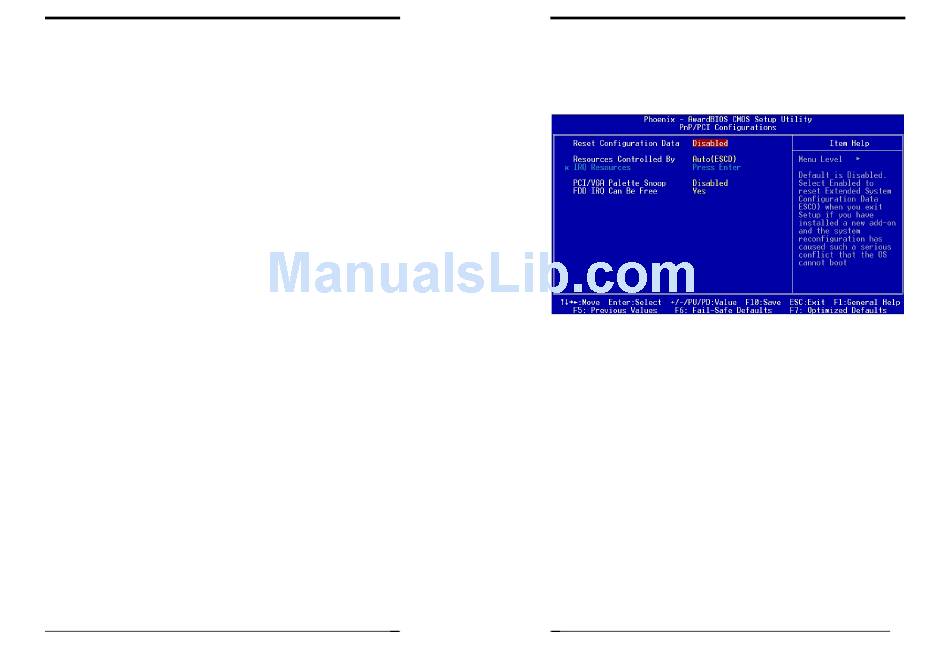

Figure 3-6 PNP/PCI Configurations
Reset Configuration Data:
Select Enabled to reset Extended System Configuration Data (ESCD) when you exit
Setup if you have installed a new add-on and the system reconfiguration has caused
such a serious conflict that the OS cannot boot.
Resources Controlled By:
When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning IRQ &
DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy
information. ESCD (Extended System Configuration Data) provides a detailed
format of the configuration data structures stored in flash memory. Each data
structure defines the resources used by a device or a card in the system. This
includes legacy and PCI/ISA PnP devices.
PCI/VGA Palette Snoop:
When set to [Enabled], multiple VGA devices operating on different buses can
handle data from CPU to each set of palette registers on every video device. Bit 5 of
the command register in the PCI device configuration space is the VGA Palette
Snoop bit (0 is disabled). Available options are [Enabled] and [Disabled].
