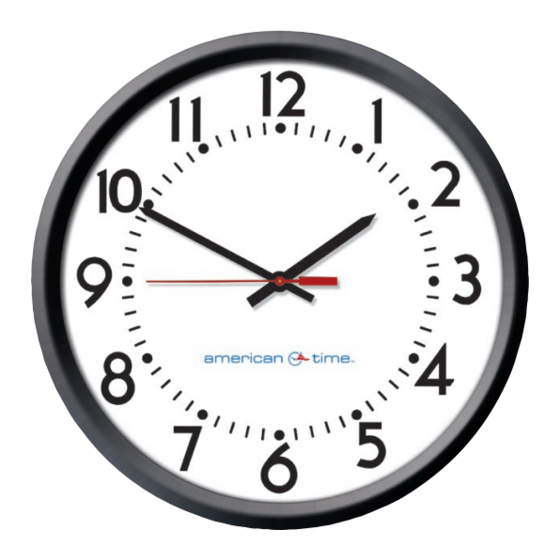

- Page 1 Wi-Fi Installation Manual Installation and Operation Manual Wi-Fi Clocks Part # H004768 Rev. 1 January 2014...
-
Page 2: Safety Precautions
The Wi-Fi clock(s) should be installed in a secure location protected from: —Physical damage —Water, including condensation Operation of this product in a manner inconsistent with the instructions in the manual may result in damage to the product and will void the warranty. © American Time... -
Page 3: Table Of Contents
Firmware update ..................................16 Factory Defaults restore ................................17 Troubleshooting ..................................18 Appendix A - SNTP Time Servers ............................19 Appendix B- Supported Time Zones ............................20 American Time 140 3rd Street South PO Box 707 Dassel, MN 55325-0707 Phone: 866-748-3796 Fax: 800-789-1882 atsclock.com © American Time... -
Page 4: Introduction
Each Wi-Fi clock is factory-configured to receive the precise time signal from your network time server. They also automatically correct for the Daylight Saving Time changes and require no maintenance for up to 5+ years. These Wi-Fi clocks only require synchronization twice per day using SNTP and create very little network traffic. -
Page 5: Specifications
• Staggered wake times for reduced network load • Wi-Fi Alliance Radio/FCC/ICC certified • RoHS Compliant Specifications Dimensions: Varies by model Weight: Varies by model Operating Humidity: 0% to 95%, non-condensing Operating Temperature: 41˚F to 131˚F Storage Temperature: 41˚F to 131˚F Accuracy: ±1 second © American Time... -
Page 6: Installation
• Green gear locking pin (A) is removed from the movement 1. Adjustments/Configuration via limited access Point mode If clock was preconfigured at American Time as recommended, skip to step 2. Otherwise, refer to Button Operation and Configuration (Limited Access Point mode) sections to configure clock manually. -
Page 7: Button Operation
Send clock hands to 12 O'clock position then stop until seconds Clock Homing ORANGE power is reset 10-15 Flash GREEN/ seconds Firmware Update Update the firmware from the internet (port 80) Factory Defaults Flash ORANGE/ seconds Restore Reset configuration to factory settings © American Time... -
Page 8: Configuration
If your clock was preconfigured by American Time this process is unneeded unless changes are required. To enter configuration (limited access point mode) complete the following process: Apply power to Wi-Fi module by inserting the barrel plug (C) of the battery pack into the left side of the Wi-Fi module where the power connection is located. -
Page 9: Clock
9. FW Version – The current firmware version used on the Wi-Fi clock. 10. MAC Address – The Media Access Control (MAC) address is a unique identifier assigned to the Wi-Fi clock network hardware for communications. © American Time... -
Page 10: Wi-Fi
Go to page 11 if you select this option. b. Click on “Manual Configuration to Join a Network” if beckon is not active or is unavailable. Go to page 13 if you select this option. © American Time... - Page 11 “Manual Configuration to Join a Network” go to “b. Manual Configuration to Join a Network” (page 13). 5. The above screen will appear when the clock has completed the SSID scan process. 6. Click on the select button next to the SSID you wish to configure your clock to. © American Time...
- Page 12 7. Enter security information (if required for your network) and click next. nNote: if a static IP address is required check the Advanced Options and select “Static IP Address Configuration” radial button. 8. Select Save and Apply button to save and exit to normal operation. © American Time...
- Page 13 IP address is required check the Advanced Options and select “Static IP Address Configuration” radial button. 6. Click the next button to continue. 7. Click on the Save and Apply button to save and exit to normal operation. © American Time...
-
Page 14: Administrator Settings
3. Enter Username into text field (leave blank to disable security for limited access point mode). 4. Enter Password and confirm in to the the password text fields (leave both blank to disable security for limited access point mode). 5. Click on click on “Save and Apply”. © American Time... -
Page 15: Homing Clock (Check Hand Position)
7. Verify all three hands (second hand, minute hand and hour hand) stop at the 12 position. a. If not, contact American Time technical support at 866-748-3796. 8. Power cycle Wi-Fi module by disconnecting barrel plug of the battery pack for 5 seconds and reconnecting. -
Page 16: Firmware Update
Firmware Update Wi-Fi Installation Manual Occasionally American Time will have new firmware updates available. Contact American Time for the most recent firmware version available. Firmware updates require access to the internet through port 80. nNote: if traffic is redirected on port 80 firmware updates will fail. Prior to completing the firmware update process verify internet access is available on port 80. -
Page 17: Factory Defaults Restore
American Time preconfigures your clock settings prior to shipment to you. These preconfigured settings are stored in memory even after settings have been changed. nNote: if your clock was not preconfigured at American Time completing the factory defaults restore process will not help. Refer to configuration section of this manual to reconfigure your clock. -
Page 18: Troubleshooting
NIST time servers will reject multiple time requests from the same IP address. • Change to internal time server. If the above steps do not resolve the issue, please contact American Time at 866-748-3796 or techs@atsclock.com. © American Time... -
Page 19: Appendix A: Sntp Time Servers
Mountain View, California nist1.symmetricom.com 069.025.096.013 San Jose, California nist1-sj.ustiming.org 216.171.124.036 San Jose, California nist1-la.ustiming.org 064.147.116.229 Los Angeles, California nNote: Please reference http://tf.nist.gov/tf-cgi/servrs.cgi for the latest NIST Internet Time servers list, which includes the status of each server. © American Time... -
Page 20: Appendix B- Supported Time Zones
UTC+01:00 UTC+01:00 UTC+03:00 UTC+03:30 +3.5 +3.5 UTC+04:00 UTC+05:00 UTC+05:30 +5.5 +5.5 UTC+05:45 +5.75 +5.75 UTC+06:00 UTC+06:30 +6.5 +6.5 UTC+07:00 UTC+08:00 UTC+08:45 +8.75 +8.75 UTC+09:00 UTC+09:30 +9.5 +9.5 UTC+10:00 UTC+10:30 +10.5 +10.5 UTC+11:00 UTC+12:00 UTC+12:45 +12.75 +12.75 UTC+13:00 © American Time... - Page 21 Appendix B: Supported Time Zones (cont) Wi-Fi Installation Manual Hours Difference Hours Difference Observes Daylight Description from UTC (Winter) from UTC (Summer) Saving Time UTC-01:00 UTC-02:00 UTC-03:00 UTC-03:30 -3.5 -3.5 UTC-04:00 UTC-04:30 -4.5 -4.5 UTC-05:00 UTC-06:00 UTC-07:00 UTC-08:00 UTC-09:00 UTC-10:00 UTC-11:00 UTC-12:00 © American Time...
