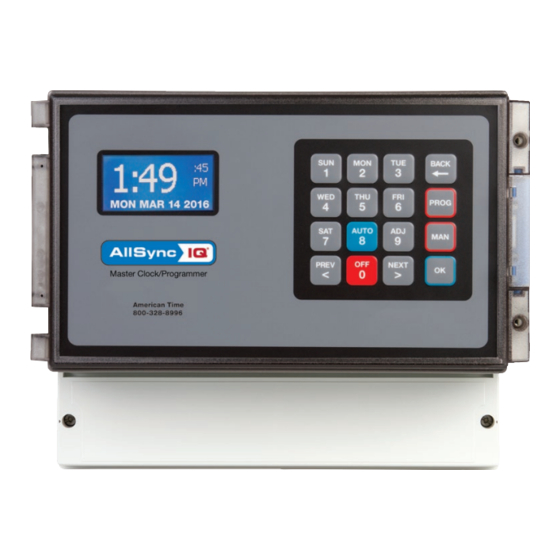

Wired master clock

Advertisement

Installation and Operation Manual
AllSync IQ
Wired Master Clock
®
Part # H004658
Rev. 4
February 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AllSync IQ ASQMSTR-00X8E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Time AllSync IQ ASQMSTR-00X8E

  • Page 1 Installation and Operation Manual AllSync IQ Wired Master Clock ® Part # H004658 Rev. 4 February 2016...
  • Page 2 FCC Conformity AllSync IQ Installation Manual (USA only) Responsible Party: American Time, 140 3rd St. S., PO Box 707, Dassel, MN 55325-0707 USA TEL: 320-275-2101, declares that the product(s): AllSync IQ Master Comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
  • Page 3: Table Of Contents

    Port Diagram ...............................48 Appendix G: Maintenance Guide .............................. 49 Appendix H: Clock Circuit Wiring Diagrams ........................50-54 Glossary....................................56-57 American Time 140 3rd Street South PO Box 707 Dassel, MN 55325-0707 Phone: 800-328-8996 Fax: 800-789-1882 american-time.com © American Time...
  • Page 4: Introduction

    Flexible control of 6 signal circuits and/or 1 set of clock circuits • Manual control of signal circuits The following table shows the relay options included with each model number. Model No. 1 Clock Circuit (2 Signal Circuits (6 Relays) Relays) ASQMSTR-00X8E ASQMSTR-00X6E ASQMSTR-00X2E © American Time...
  • Page 5: Allsync Iq Installation

    Connector for Ethernet and power switch are are located on the left side of the enclosure. The AllSync IQ master is designed to be wall-mounted by a keyhole hanger and screws. The Quick Start Guide shows a template for locating wall hangers to mate with these openings. © American Time...
  • Page 6: Allsync Iq Setup Wizard

    Option 9 allows a custom DST to be entered. Press and skip to z. • Option 0 turns off DST. Press and skip to STOP If you chose Auto or Off in y, skip to . If you chose Custom, continue to z. © American Time...
  • Page 7 <> Set Menu DST - LOCAL • Use to enter the start time. Press End Time: to move to the next field. 01:00 AM <> • Use to select AM/PM. Press to accept. <> = AM/PM OK=ACPT © American Time...
  • Page 8 Use the keypad to enter the Alternate Time Server address. Enter preceding <=Bksp Ok=Done zeros as necessary. • Alt. Time Server Address: • Press Press to accept the default set at the factory from the list of known good Internet Time Servers in Appendix A. © American Time...
  • Page 9 Your AllSync IQ is now set up for proper operation. You can continue to the other sections of this manual for further information on other features. If you have any questions or problems that cannot be resolved by following the steps in the Troubleshooting Guide, please contact Technical Support at American Time Setup Wizard (800-328-8996).
  • Page 10: Ethernet Installation

    DHCP. Important Note: Time Servers provide time sync for UTC Time, but do not set Time Zone or DST settings. Note: This option automatically syncs once per hour at a time preset at the factory. © American Time...
  • Page 11 Note: When Ethernet synchronization is working, ETH=S will be displayed on the screen in small text mode as shown in screen shot . If a synchronization attempt 2008 fails, ETH=N will be displayed. 10:30:06 AM USCT American Time Circts=Auto ETH=S © American Time...
  • Page 12: Wired Clock Circuit Installation

    CLOCK 1 CLOCK 2 BELL 1 BELL 2 BELL 3 BELL 4 BELL 5 BELL 6 Clock Circuit Terminals Clock Circuit Fuses Surge Supression ON/OFF Switches See Appendix H on Page 50 for Clock Circuit Wiring Diagram © American Time...
  • Page 13: Adjust Time Menu

    Adjust System Clocks successful, a message confirming this flashes before the Time Display screen Manual Adj. Impulsed appears. >=Advance Clocks (1 per min) OK=Done *The time sync priority can be configured. Reference Settings and Configuration on Page 33. © American Time...
  • Page 14: Wired Signal Circuit Installation

    ON. In these cases, the surge protection switches (see illustration below) can be moved to the OFF position. Contact American Time Technical Support at 800-328-8996 with any questions.
  • Page 15 Sec (1-9, < or >) Off=< On=> OK=Set > Press to latch assigned circuits on until a later event turns them off, or < Press to turn off assigned circuits that were previously turned on. Press to accept event duration. © American Time...
  • Page 16 Year: 2008 All=0000 OK=Accept Event Menu Enter Event Month Month=02 February All=00 OK=Accept Event Menu Choose: 1=Set Date (1-31) 2=Set Weekday(s) Event Menu Select event date Day of month= 15 All=00 OK=Accept © American Time...
  • Page 17 The Event Saved screen briefly appears followed by the Select Event Event Menu Time screen. Y=All M=All To see a programming example, see Appendix D. MTWTF 05:03 AM Event 0000 Saved Press exit the Event Menu. © American Time...
  • Page 18 M=All the first event scheduled to start on or after a specified hour, or MTWTF 05:03 AM Press to view, edit or delete events by weekday. Event 0000 Saved Event Menu View Events by 1=Schedule/Event 2=Dte/Tme 3=WKD © American Time...
  • Page 19 < Press to turn off assigned circuits that were previously turned on. Press to accept event duration. Press to save event changes. To see a programming example, see Appendix D. © American Time...
  • Page 20 The steps for reviewing and editing selected events <>=Scroll OK=Edit are the same as those listed in Reviewing and Editing Events by Schedule with one exception: event number cannot be used to jump directly to an event. © American Time...
  • Page 21 (Pressing 0 disables the circuit) Press accept. 01 01 02 02 03 03 This returns you to the Signal Circuit Schedule Assignment screen (b). Press Circuit Menu Cir:01 Choose Sch Press to bring up the Duration screen. Sch: 01 00=Special OK=Accept © American Time...
  • Page 22 Setting the system controller status to OFF disables all signal circuits. Enable Cir: OK=Done To set the status to OFF: 1=On 2=On 3=On 4=On 5=On 6=On Press , enter the User Lock (unless User Lock is disabled) and press (unless User Lock is disabled) © American Time...
  • Page 23 These options will occur chronologically by the date and time entered for each. Time Sched Change to Sch:05 2008-10-31 To see a programming example, see Appendix D. 08:00 AM <>=AM/PM OK=Next © American Time...
  • Page 24: Remote Connect Web Interface

    4. The Remote Connect utility will appear with the General tab selected. The tabs displayed may differ depending on the configuration of the unit. Figure 3 For more details on the features of Remote Connect, click on the Support link in the upper right-hand corner of the utility (Figure 3). © American Time...
  • Page 25 9. Previous/Next Signal – This will display the next circuit activation to occur. 10. Last Powered On – This will display when the AllSync IQ Master was last turned on. This is usefull to determine if the unit has lost power. © American Time...
  • Page 26 Note: Time will always be in military time. 2. Date: This allows the user to set the date. After changing the date, the Update button must be pressed to take effect. © American Time...
  • Page 27 2. Export: This allows the user to export their schedules to a .ats file for backup. 3. Import: This allows the user to import a .ats file. Note: A browse button will appear after selecting the Import button. Selecting the browse button will allow the user to import events. © American Time...
  • Page 28 8. Print: This will print the events that are displayed in the table. Circuit Tab: The Circuit Tab contains circuit designations to specific schedules. This tab also contains the Manual Activation feature which allows manual activation of relays. Schedule: Figure 10 © American Time...
  • Page 29 Wired button. 3. Circuit Description: This is the description of the circuit as assigned in the Schedule Tab. 4. Wired: This will signal the enabled circuits for the duration specified in the Signal Duration. © American Time...
  • Page 30 Reset Packets Rx/Tx button. *Note: When changing these settings in Remote Connect, close your browser and log in again (with the new IP address, if applicable). Use caution when revising these settings, as you could lose connectivity after pressing Update. © American Time...
  • Page 31: Remote Connect Web Interface

    12. Reset All Settings: Pressing this button will reset the AllSync IQ master to factory defaults. Note: Pressing this will change the IP address of the unit. It will have to be reconfigured to meet the network specifications. © American Time...
  • Page 32: Settings & Configurations

    4=12/24 9=Sync Now Set Menu Year 2015 - 01 - 01 >=Month Back=Day <=BkSpc OK=Accept Set Menu Month 2015 - 01 - 01 >=Day Back=Year OK=Accept Set Menu Day 2015 - 01 - 01 >=Year Back=Month OK=Accept © American Time...
  • Page 33: Manage Locks

    This feature allows for the deletion of all events or restoration of the System Controller to factory defaults. • a. Press to delete all events or to cancel. Config Menu • b. Press to restore factory defaults or to cancel. Restore Factory Settings 1=Confirm 0=Cancel © American Time...
  • Page 34: Setup Manager

    End of DST: Use the keys to choose the ending week, day and month. Press after each selection. Press when finished. USB Flash Drive Refer to Appendix F for instructions on updating the software on the AllSync IQ Master. © American Time...
  • Page 35: Allsync Iq

    FRI OCT 3 2014 American Time 800-328-8996 CAUTION: Warranty may be voided if LCD/Keypad cover is removed prior to contacting Technical Support at American Time at the number listed below. If you have any of these problems, follow the appropriate steps: 1.
  • Page 36: Ethernet

    9. Test the time server by attempting to get a time stamp from another computer. Check with your Network Administrator if you do not know how to do this. If the problem cannot be resolved after following these steps, please call Technical Support at American Time at 800-328-8996.
  • Page 37: Remote Connect

    6. Ping the IP address of the unit from another computer to see if it is responding. Check with your Network If the problem cannot be resolved after following these steps, please call Technical Support at American Time at 800- 328-8996.
  • Page 38: Wired Clock Circuit

    Contact American Time Technical support for information on adding a Resistor Pack (Part #H001941) to your system. If the problem cannot be resolved after following these steps, please call Technical Support at American Time at 800- 328-8996.
  • Page 39: Wired Signal Circuit

    Remove power to the AllSync IQ master and signal circuit lines before removing cover to access wiring. If the problem cannot be resolved after following these steps, please call Technical Support at American Time at 800-328-8996. Circuit Protection...
  • Page 40: Secondary Clocks

    If secondary clocks still have not corrected, you may need additional hardware. Contact American Time Technical Support for information on adding a Resistor Pack (Part #H001941) to your system. If the problem cannot be resolved after following these steps, please call Technical Support at American Time at 800- 328-8996.
  • Page 41: Appendix A: Ethernet Timekeeping - Known Good Internet Time Servers

    Domain controllers using the Windows Time Service can be set up by your network administrator to synchronize directly to time servers on the Internet or to the AllSync IQ master. Contact American Time Technical Support at 800-328-8996 with any questions.
  • Page 42: Appendix B: Supported Time Zones

    CONFIG UTC+11 CONFIG UTC+12 CONFIG UTC+13 CONFIG UTC-1 CONFIG UTC-2 CONFIG UTC-3 CONFIG UTC-4 CONFIG UTC-5 CONFIG UTC-6 CONFIG UTC-7 CONFIG UTC-8 CONFIG UTC-9 CONFIG UTC-10 CONFIG UTC-11 CONFIG UTC-12 CONFIG Custom Time Zone CONFIG CONFIG CONFIG © American Time...
  • Page 43: Appendix C: Tone Generator Wiring

    Appendix C: Tone Generator Wiring AllSync IQ Installation Manual Multi-Tone Generator GAIN SPKR SPKR AUDIO IN AUDIO OUT PA/AMP RED (+) 12VDC (500 mA MAX) BLACK (-) ALLSYNC IQ MASTER TERMINALS © American Time...
  • Page 44 Step 12: 6 for event duration Step 13: O to accept duration Step 14: O to save event Step 15: Press B to exit Event Menu. Press B again to exit Program Menu if review/edit is complete. © American Time...
  • Page 45: Appendix D: Wired Signal Circuit Programming Examples

    2008 to change year to 2008 Step 11: O to accept year Step 12: 10 to change month to October Step 13: O to accept month Step 14: 1 to select Set Date Step 15: 31 to set date Step 16: © American Time...
  • Page 46 Enter the time (minutes) 00 and press O. Step 20: Select AM using the < > keys and press O. Step 21: This should return you to the replacement schedule screen (Step 4). Press PB to exit to the main screen. Step 22: © American Time...
  • Page 47: Appendix E: Checking Allsync Iq Master Status Information

    Event 0005 : 12:00 AM • b. Special Events SMTWTFS OK=Done • Press to exit. Status Menu Next Event : _ 2 _ 4 5 6 Event 0009 : 10:01 AM 2008 - 02 - 09 OK=Done © American Time...
  • Page 48: Appendix F: Port Diagram

    BELL 2 BELL 3 BELL 4 BELL 5 BELL 6 C D E F=Ethernet RJ45 port G=Power ON/OFF switch H=Ethernet (orange) full duplex LED I=Ethernet (red) collision LED J=Ethernet (yellow) 100 Base T LED K=Ethernet (green) link LED © American Time...
  • Page 49: Appendix G: Maintenance Guide

    1. Keep AllSync IQ Master and clocks free from dust and debris to extend service life - Annually (or as needed) 2. Visually inspect all system components, cables, etc. - Every 6 months (or before Daylight Saving Time changes twice per year) © American Time...
  • Page 50: Appendix H: Clock Circuit Wiring Diagrams

    Clock Code 05 - 3 wire Minute Impulse (58th minute) Clock Code 16 - 3 wire Minute Impulse (59th minute) with 12hr Correction Clock Code 47 - Standard Electric Time AR-3 (3 wire Impulse) Clock Code: 02, 05, 16, 47 Rectifier diodes recommended for relay protection. © American Time...
  • Page 51 Clock Code 12 - Cincinnati D6 - 2 wire Reverse Polarity Minute Impulse (59th minute) with 12hr Correction Clock Code 26 - Stromberg 2 wire Minute Impulse (58th minute) Hourly Correction Only Clock Code: 07, 08, 12, 26 Rectifier diode recommended for proper operation of reversing polarity. © American Time...
  • Page 52 AllSync IQ Installation Manual Circuit Wiring Diagrams Clock Code 15 - Straight Frequency Electronic Clock Clock Code: 15 Clock Code 21 - Cincinnati D1 Clock Code: 21 Clock Code 22 - Dukane Synchronous Wired Clock Code: 22 © American Time...
  • Page 53 Appendix H: Clock Circuit AllSync IQ Installation Manual Wiring Diagrams Clock Code 27 - Digital Clock Reset - 12:00 AM/PM Clock Code: 27 Clock Code 37 - 2 wire Reverse Polarity Minute Impulse Clock Code: 37 © American Time...
  • Page 54 Appendix H: Clock Circuit AllSync IQ Installation Manual Wiring Diagrams Clock Code 38 - 2 wire Reverse Polarity Minute Impulse (59th minute) with 12hr Correction Clock Code: 38 © American Time...
  • Page 55 User Notes AllSync IQ Installation Manual © American Time...
  • Page 56: Glossary

    Static IP Address - An Internet Protocol (network) address permanently assigned to an individual machine, account or user. Subnet Mask - A number that helps to define the relationship between the host (computers, routers, switches, etc.) and the rest of the network. © American Time...
  • Page 57: American Time

    UTC - Universal Coordinated Time. A time-scale that forms the basis of a coordinated distribution of standard frequencies and time signals throughout the world. It is often referred to as Greenwich Mean Time (GMT) or Zulu Time (military and aviation). American Time 140 3rd Street South, PO Box 707 Dassel, MN 55325-0707 Phone: 800-328-8996 Fax: 800-789-1882 american-time.com © American Time...
