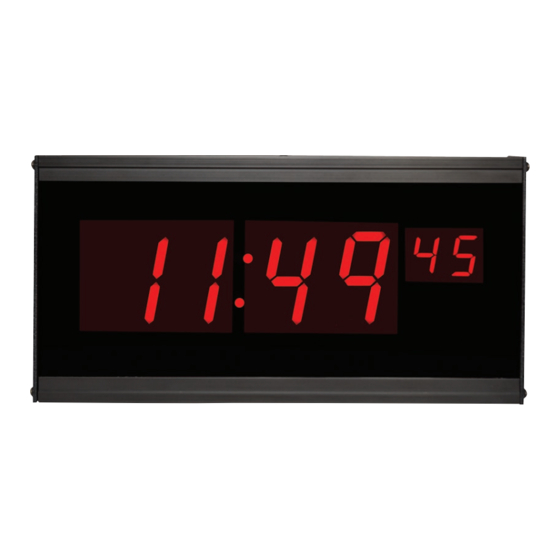

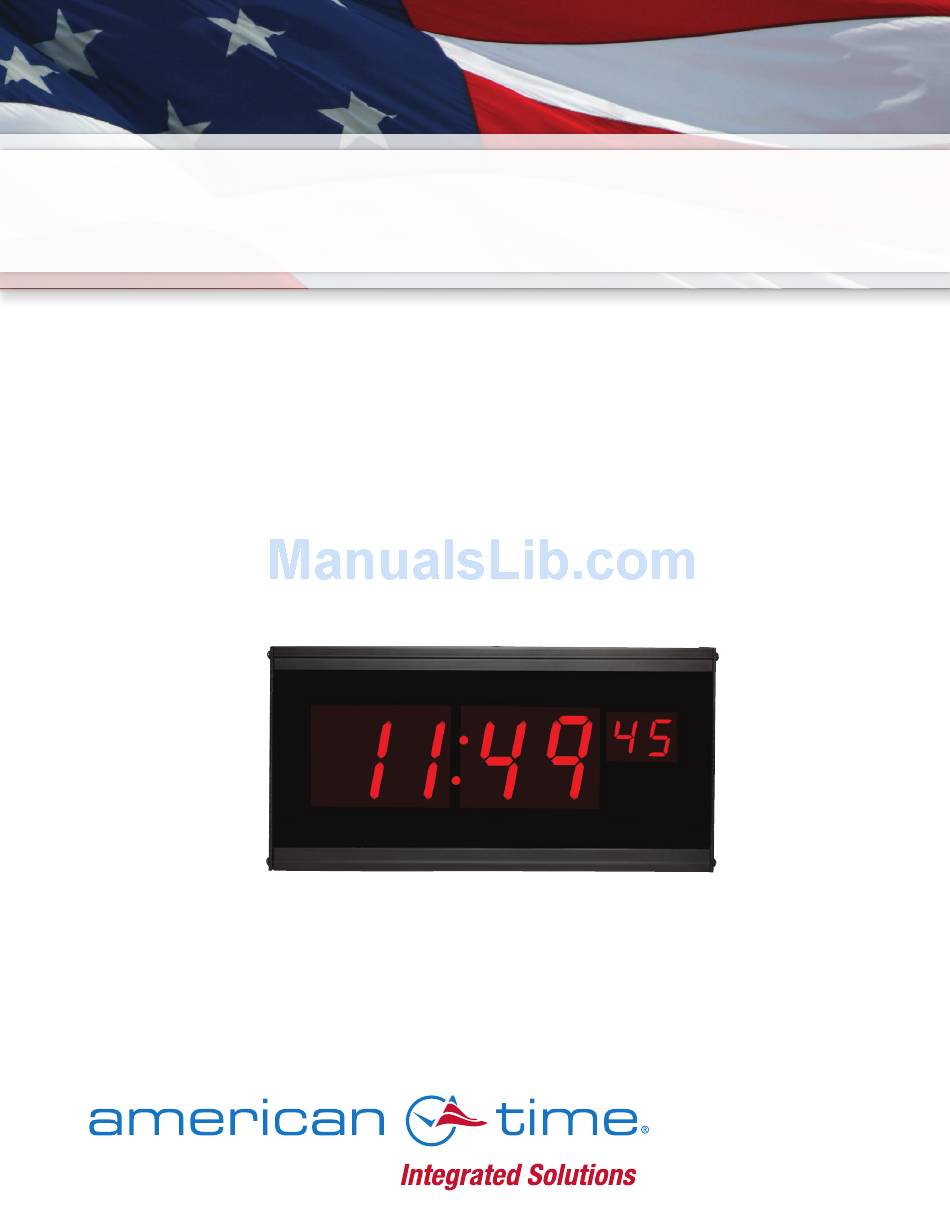

- Page 1 Installation and Operation Manual DSY261RSxE Digital Clock/Elapsed Time Indicator with Code Blue Part # H004825 Rev. 1 August 2015...
- Page 2 Electrical Shock Hazard DSY261RSxE Owner's Manual WARNING: Hazardous voltage in electrical equipment can cause severe personal injury or death. Inspection, installation, and preventive maintenance should only be performed on equipment to which power has been turned off, disconnected and electrically isolated so no accidental contact can be made with energized parts.
-
Page 3: Table Of Contents
Table of Contents DSY261RSxE Owner's Manual Important Installation and Warranty Information ....................4 Specifications ................................5 Description .................................6 DSY261RSxE Digital Clock/Timer ........................6 ATSTCS Control Station ...........................7 Installation Instructions ............................8 DSY261RSxE Installation Instructions ........................8 ATSTCS Installation Instructions ........................9 Operation ................................10 Power Up ...............................10 Setting Time ..............................10... -
Page 4: Important Installation And Warranty Information
DSY261RSxE Owner's Manual IMPORTANT INSTALLATION AND WARRANTY INFORMATION WARRANTY INFORMATION: American Time (the Manufacturer) provides a limited warranty to the Original Purchaser of this product. The Original Purchaser is the party to whom the Manufacturer issued its Sales Order, generally the Manufacturer’s distributor. -
Page 5: Specifications
Specifications DSY261RSxE Owner's Manual GENERAL Weight: ......Digital Clock/Timer ....... 4.0 lb........ATSTCS Control Station ......0.27 lb. External Dimensions: ..Digital Clock/Timer ....... 6.1"h x 12"w x 3.5"deep ATSTCS Control Station ......4.63"h X 4.56"w X 1.25"deep SPECIFICATIONS ELECTRICAL Power Requirements (Digital Clock/Timer only): Line Voltage: .................. -
Page 6: Description
ATSTCS control panel. The Code Blue up counting elapsed timer will override all other modes of operation if used. The DSY261RSxE can function as a 12-hour or 24 hour stand-alone clock or can be wired as a 12-hour secondary clock for synchronous time. -
Page 7: Atstcs Control Station
Control Station Switch Functions DSY261RSxE Owner's Manual Run/Set Switch - Set Position: This position is used to set the clock or a preset up or down counting time (Timer). It is also used to reset the Code Blue timer. Run Position: This position is used to permit Clock/Timer to operate. -
Page 8: Installation Instructions
Clock/Timer Installation DSY261RSxE Owner's Manual The Digital Clock/Timer can be mounted to a single or double gang box. To install the Digital Clock/Timer, follow the instructions below. Ensure that installation conforms to the National Electrical Code and local wiring codes. -
Page 9: Atstcs Installation Instructions
Control Station Installation DSY261RSxE Owner's Manual The ATSTCS Control Station can be mounted to a double gang box, 1 inch deep or deeper. The Control Station can be mounted up to 30 feet away from the Digital Clock/Timer. The recommended minimum interconnecting field wire size is #22.8 AWG stranded wire. -
Page 10: Operation
Apply power to the unit. The displays may rotate during the power on self test and then a version number will appear for a few seconds. The DSY261RSxE will display 1:00:00 and begin keeping time. If the backup battery is not depleted, the self test will be bypassed and the DSY261RSxE may display a time other than 1:00:00. -
Page 11: Up Counter Elapsed Time Operation
Operation DSY261RSxE Owner's Manual Up Counter Elapsed Time Operation Once the desired preset value has been set, the unit is now ready to function as an UP count elapsed timer. Be sure the SET/RUN switch is in the RUN position. -
Page 12: Free Running Clock Operation
Operation DSY261RSxE Owner's Manual Free Running Clock Operation The Digital Clock/Timer can be used as a free running clock. No additional connections are required. It will run as a line syn- chronous clock once time has been set. Synchronous Secondary Clock Operation The Digital Clock/Timer can be used as a correctable synchronous secondary clock. -
Page 13: Code Blue
Code Blue DSY261RSxE Owner's Manual Description The Code Blue feature provides an override which forces the clock into a special count up elapsed time mode. No matter which of the three normal functions is being displayed, Code Blue input will cause the unit to begin counting elapsed time from 00:00:00. -
Page 14: Important Considerations
Important Considerations DSY261RSxE Owner's Manual The ATSTCS must be in the RUN mode for Code Blue to override. The 12vac/vdc to 30vac/vdc signal that starts the Code Blue timer originates from equipment external to the Digital Clock/ Timer. The external equipment usually employs a switch device (i.e., a relay contact) to apply this signal. That switching device is often referred to as the Code Blue contact. -
Page 15: Maintenance
An incompatible battery may leak or explode, causing equipment damage and/ or personal injury! If battery must be replaced, contact American Time at 800-328-8996. System Maintenance The Digital Clock/Timer and ATSTCS Control Station have been manufactured for years of dependable, reliable use. However, to assure the reliability of this product, it is recommended that the Digital Clock/Timer be tested at least every six (6) months with the Control Station and Code Blue contact for operation in accordance with wiring configurations used. -
Page 16: Appendix 1: Wiring For 3-Wire Secondary Clocks
Appendix DSY261RSxE Owner's Manual Appendix 1 Wiring Diagram for Synchronous Secondary Clock Operation For use with 3 Wire Clocks Clock Power (AC voltage and frequency P/N dependent. see page 5) from Previous Clock or Master Clock Common Correct Run (black) -
Page 17: Appendix 2: Operators Flowchart
DSY261RSxE Owner's Manual Appendix 2 Operator's Flowchart To Set Time To Set UP Counter Preset To Set DOWN Counter Prese UP/CLOCK/DOWN switch in UP/CLOCK/DOWN switch in UP UP/CLOCK/DOWN switch in CLOCK position position DOWN position SET/RUN switch in SET position...
