Installation and Operation Manual
AllSync Plus
Clocks
®
®
Part # P000018
Rev. 3
January 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AllSync Plus and is the answer not in the manual?

Questions and answers

Related Manuals for American Time AllSync Plus

Summary of Contents for American Time AllSync Plus

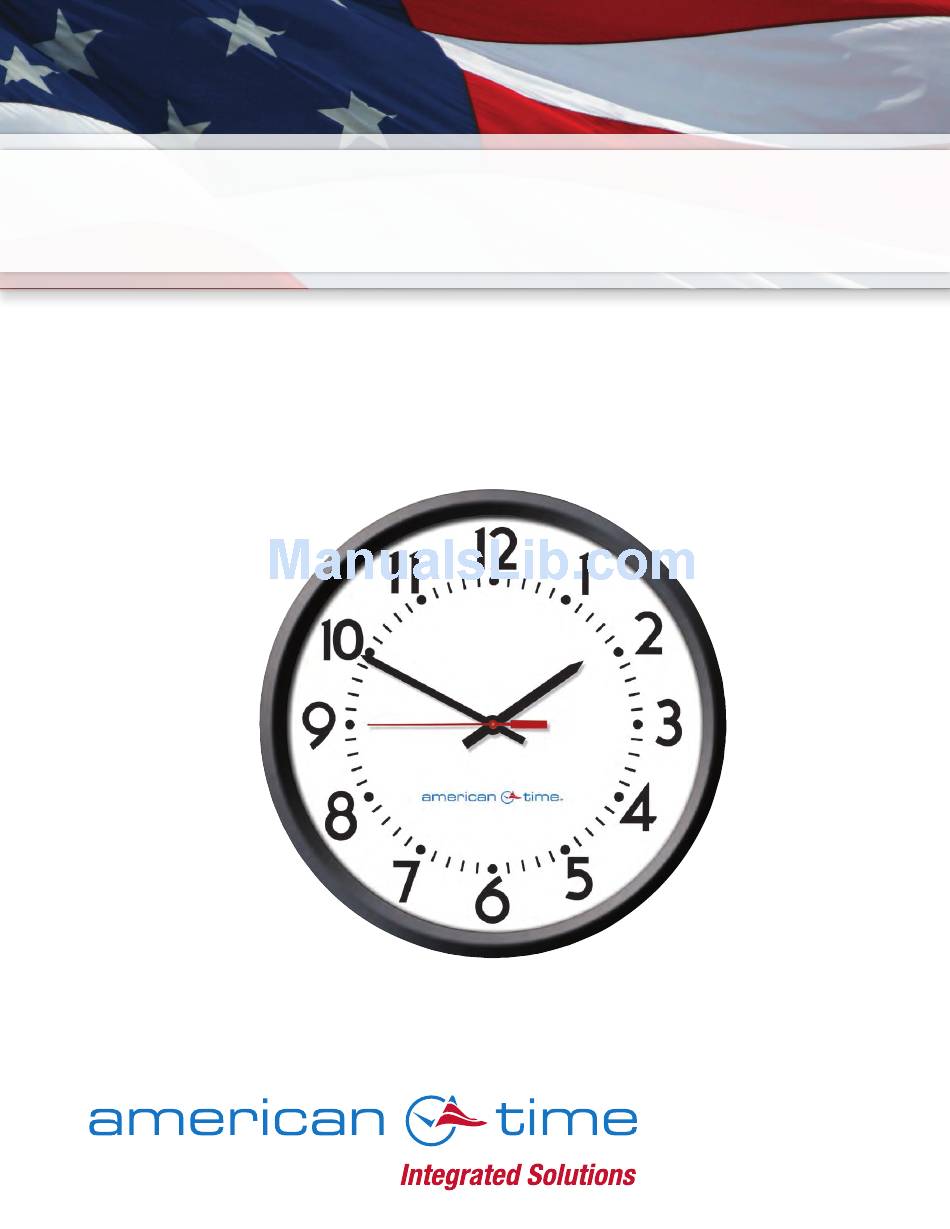

  • Page 1 Installation and Operation Manual AllSync Plus Clocks ® ® Part # P000018 Rev. 3 January 2013...
  • Page 2 AllSync Plus Clock Installation & Operation Manual American Time 140 3rd Street South, PO Box 707 Dassel, MN 55325-0707 Phone: 800-328-8996 Fax: 800-789-1882 atsclock.com © American Time...

  • Page 3: Table Of Contents

    AllSync Plus Dual Motor Plastic Case Specifications ....................26 AllSync Plus 15" Surface Plastic Case Specifications .................... 28 AllSync Plus Surface & Double Dial Metal Case Specifications ................30 AllSync Plus Surface & Double Dial Plastic Case Specifications ................32 Appendix B - LED Indication ............................

  • Page 4: Safety Precautions

    AllSync Plus Clock Installation & Operation Manual All wiring to AllSync Plus clock(s) and Master must be installed by qualified persons in conformance with applicable national and local electrical codes. Improper installation of this equipment can result in lethal electrical shock and fire.

  • Page 5: Introduction

    The AllSync Plus Clock Manual explains how to install AllSync Plus Clocks and understand their operation. The American Time AllSync Plus clock is the second generation of the AllSync Chameleon clock. The AllSync Plus clock incorporates all of the first generation AllSync clock features with improved accuracy and 15 minutes of reserve power for short power outages.

  • Page 6: Installation

    The AllSync Plus clock can run off either 24vac/60 Hz or 120vac/60 Hz. To change between the two different supply voltages two jumpers must be set inside each clock. This setting is completed by American Time when your clock(s) are built according to the part number ordered.

  • Page 7: Plastic Surface Mount Clock Installation

    AllSync Plus Clock Installation & Operation Manual Plastic Surface Mount Clock Installation Warning: The AllSync Plus plastic surface mount clock should be mounted according to these instructions to meet UL clock listing. 1. Remove the AllSync Plus clock, mounting bracket, and wiring harness (if applicable) from the packaging.
  • Page 8 Installation AllSync Plus Clock Installation & Operation Manual Plastic Surface Mount Clock Installation (cont) 6. Make connection between clock and wall wiring using attached four conductor mating connectors. 7. Bundle wires inside clock bezel. 8. Slide keyhole hanger over ribbed hanging stem on mounting bracket 9.

  • Page 9: Metal Surface Mount Clock Installation

    & Operation Manual Metal Surface Mount Clock Installation Warning: The AllSync Plus metal surface mount clock should be mounted according to these instructions to meet UL clock listing. 1. Remove the AllSync Plus clock, mounting bracket, and wiring harness (if applicable) from the packaging.

  • Page 10: Metal Round Double Dial Clock Installation

    & Operation Manual Metal Round Double Dial Clock Installation Warning: The AllSync Plus metal double dial clock should be mounted according to these instructions to meet UL clock listing. 1. Remove the AllSync Plus clocks, double dial ring, wiring harnesses, backbox plate and plastic bushings from the packaging.
  • Page 11 Installation AllSync Plus Clock Installation & Operation Manual 5. Attach mounting clips by threading the 1 " screws included through them in each of the three positions. Do not completely tighten, they should be loose at this point. 6. Using UL approved wire nuts, make connections between flying leads and wiring inside electrical box.

  • Page 12: Plastic Double Dial Clock Installation

    & Operation Manual Plastic Double Dial Clock Installation Warning: The AllSync Plus plastic double dial clock should be mounted according to these instructions to meet UL clock listing. 1. Remove the AllSync Plus plastic double dial clock from packaging. 2. Using UL approved wire nuts, make connections between flying leads and wiring inside electrical box.

  • Page 13: Metal Square Double Dial Clock Installation

    & Operation Manual Metal Square Double Dial Clock Installation Warning: The AllSync Plus metal square double dial clock should be mounted according to these instructions to meet UL clock listing. 1. Remove the AllSync Plus square metal double dial clock from packaging.

  • Page 14: Allsync Plus Startup Routine

    AllSync Plus clock will rapidly advance to match the exact time on of the master (hour hand will correct). Note: The AllSync Plus clock is set up at the factory for clock code 01 (xx:57:54 – 8 second hourly correction, 5:57:54 – 14 second 12 hour correction). If running a different clock protocol, the AllSync Plus clock may require an additional 12 hour correction to recognize the different clock protocol.
  • Page 15 User Notes AllSync Plus Clock Installation & Operation Manual © American Time...

  • Page 16: General Operation

    4 times a day at 2am, 8am 2pm and 8pm. For this reason if your master time is changed, the AllSync Plus clock will not correct until it has both received a correction from the master and reached one of its four daily correction times.

  • Page 17: Start Up Example Operation

    AllSync Plus Clock Installation & Operation Manual Start Up Example Operation: Note: This is an example of how the AllSync Plus clock will operate with an ATS master running clock code 01 and actual (master) plug in time at 9 am. Actual Time...

  • Page 18: Troubleshooting

    Troubleshooting AllSync Plus Clock Installation & Operation Manual Note: The LED indicator on the back of the AllSync Plus clock is intended for troubleshooting purposes. AllSync Plus Clock not correcting the hour hand • LED is solid green º Wait for 8:00 or 2:00 on clock face º...
  • Page 19 Note: You may damage clock by changing power supply settings to 24vac and applying 120vac. • LED lit o Wait for 30 minutes. The AllSync Plus clock requires a short period (up to 15 minutes) to charge its backup power supply.

  • Page 20: Appendix A - Allsync Plus Clock Specifications

    AllSync Plus clocks are designed to work with multiple master clocks and correction signals. This unit is programmed to identify the signal it receives from the master and operate as that style of clock. Changing clock operation from one style to another is as easy as unplugging the clock from one system and plugging it into another.
  • Page 21 " for 12" clocks At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications or the suitability of a particular product for a particular application.

  • Page 22: Allsync Plus Flush Plastic Case Specifications

    AllSync Plus clocks are designed to work with multiple master clocks and correction signals. This unit is programmed to identify the signal it receives from the master and operate as that style of clock. Changing clock operation from one style to another is as easy as unplugging the clock from one system and plugging it into another.

  • Page 23: Specifications

    2" At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications or the suitability of a particular product for a particular application.

  • Page 24: Allsync Plus Dual Motor Metal Case Specifications

    The american time AllSync Plus clock is designed to work with multiple master clocks and correction signals. This unit is ™ programmed to identify the signal it receives from the master and operate as that style of clock. Changing clock operation from one style to another is as easy as unplugging the clock from one system and plugging it into another.
  • Page 25 At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications Steel square or the suitability of a particular product for a particular application.

  • Page 26: Allsync Plus Dual Motor Plastic Case Specifications

    Other bezel colors available. Consult factory. The american time AllSync Plus clock is designed to work with multiple master clocks and correction signals. This unit is ™...
  • Page 27 At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications or the suitability of a particular product for a particular application.

  • Page 28: Allsync Plus 15" Surface Plastic Case Specifications

    Stylish hour and minute hands are aluminum with a black finish and a red sweep hand. The american time AllSync Plus clock is designed to work with multiple master clocks and correction signals. This unit is ™ programmed to identify the signal it receives from the master and operate as that style of clock. Changing clock operation from one style to another is as easy as unplugging the clock from one system and plugging it into another.
  • Page 29 At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications or the suitability of a particular product for a particular application.

  • Page 30: Allsync Plus Surface & Double Dial Metal Case Specifications

    The american time AllSync Plus clock is designed to work with multiple master clocks and correction signals. This unit is ™ programmed to identify the signal it receives from the master and operate as that style of clock. Changing clock operation from one style to another is as easy as unplugging the clock from one system and plugging it into another.
  • Page 31 At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications or the suitability of a particular product for a particular application.

  • Page 32: Allsync Plus Surface & Double Dial Plastic Case Specifications

    Other bezel colors available. Consult factory. The american time AllSync Plus clock is designed to work with multiple master clocks and correction signals. This unit is ™...
  • Page 33 Plastic double At American Time, we continually strive to improve our products to meet our customers’ needs and to provide the best possible value. The above specifications dial pro le are believed to be correct, are subject to change without notice and may otherwise vary from the above. Please call if you need verification of any specifications or the suitability of a particular product for a particular application.

  • Page 34: Appendix B - Led Indication

    Alternating Red and Green (0.5 sec Red – 0.5 sec. Green) = AllSync Plus circuit board receiving correction signal from master. Both colors OFF 1 sec. = At the top of each minute the AllSync Plus clock LED will turn off at the 00 sec. and continue with normal operation at 01 sec.
  • Page 35 Appendix B - LED Indication AllSync Plus Clock Installation & Operation Manual Startup diagnostics routine 1. 5 sec. – solid red only 2. 1 sec. – OFF 3. 1 sec. – Green (DIP Switch 1 ON) or Red (DIP Switch 1 OFF) 4.

  • Page 36: Glossary

    Cold Start - AllSync Plus operational state in which power is applied for the first time or after the clock has not had power for a sufficient amount of time to drain it to the point it resets its internal processor.
