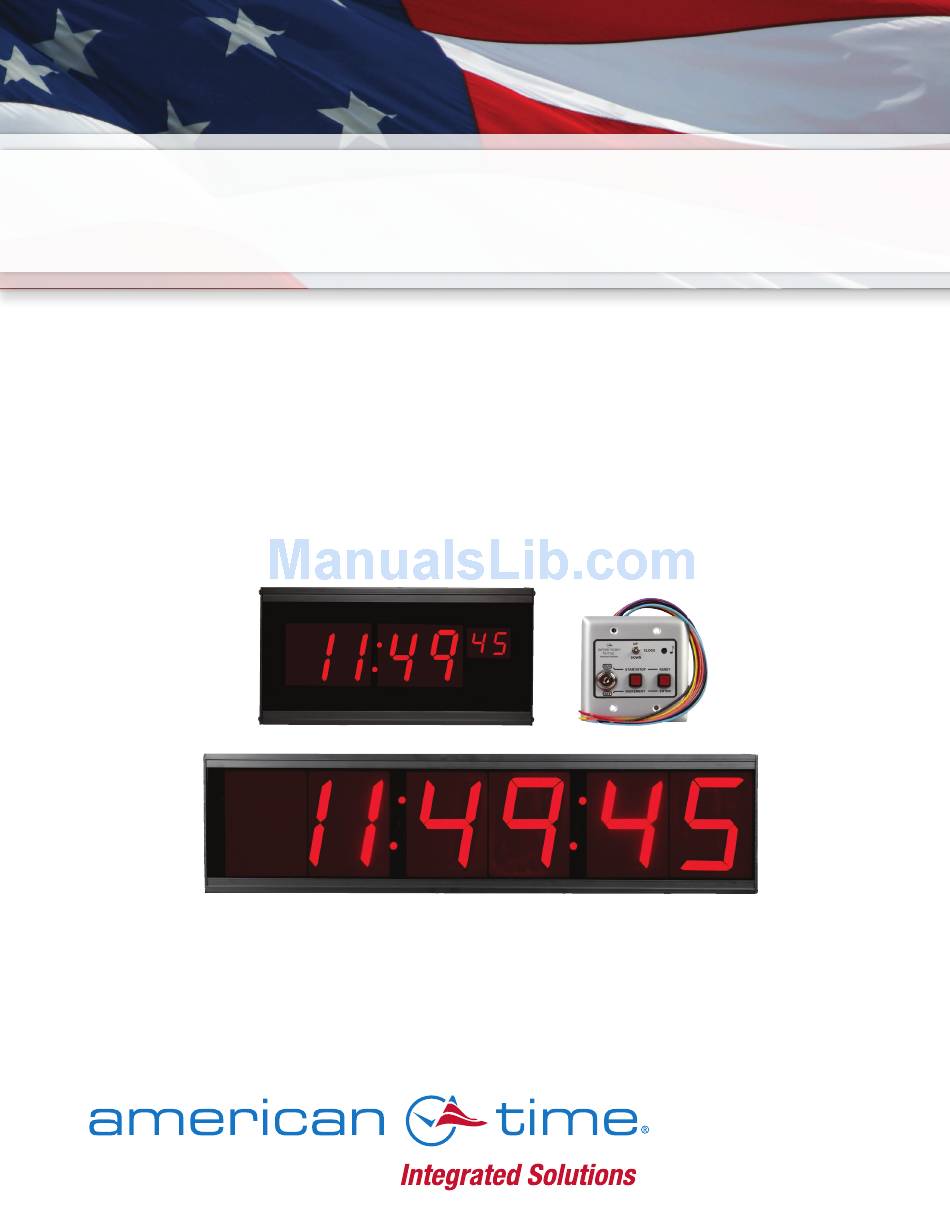

- Page 1 Installation and Operation Manual WN261RSxE and WN461RSxE Wi-Fi Digital Clock/Elapsed Time Indicator with Code Blue Part # H004905 Rev. 1 November 2017...
- Page 2 Any technician or other personnel working on this unit must wear a static grounding wrist strap or similar ATTENTION device to provide protection of sensitive components. OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES © American Time...
-
Page 3: Table Of Contents
Firmware Update / Factory Defaults Restore ......................25 Troubleshooting .................................26 Operator Maintenance ...............................27 Appendix A - Enterprise Security Configuration ....................28-29 Appendix B - SNTP Time Servers / Appendix C - Supported Time Zones ............30 Appendix D - Operator Flowchart ..........................31 © American Time... -
Page 4: Specifications
• Non-glare lens • Selectable 12 or 24-hour format • ±1 second accuracy • Black anodized aluminum frame (except American series digital clocks use steel enclosures) • Visibility: 1.8 inches=75 ft.; 2.5 inches=150 ft.; 4 inches=250 ft. © American Time... -
Page 5: Timer Control Station
Indications: ....Digital Clock/Timer ........hours and minutes - 4", bright red, seven segment LED’s hours and minutes are separated by a colon seconds - 2", bright red, seven segment LED’s ATSTCS Control Station ......2 second audible alarm © American Time... -
Page 6: Introduction
Network Preconfigured Wi-Fi Clocks are plug and play on networks with Dynamic Hosting Configuration Protocol (DHCP). A limited access point mode is also available for clocks that are not preconfigured at American Time as recommended. American Time 140 3rd Street South, PO Box 707... -
Page 7: Important Installation And Warranty Information
Code Blue Installation Manual IMPORTANT INSTALLATION AND WARRANTY INFORMATION WARRANTY INFORMATION: American Time (the Manufacturer) provides a limited warranty to the Original Purchaser of this product. The Original Purchaser is the party to whom the Manufacturer issued its Sales Order, generally the Manufacturer’s distributor. -
Page 8: Clock/Timer Description

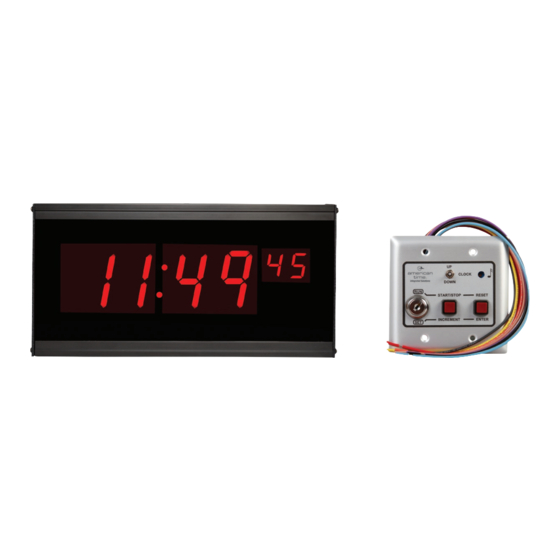

Clock/Timer Description Wi-Fi Digital Clock/Elapsed Time Indicator with Code Blue Installation Manual Introduction Digital Clock/Timer 24” ” 6.1” Control Station ATSTCS Control Station 4 9/16” CLOCK DOWN START/STOP RESET INCREMENT ENTER © American Time... -
Page 9: Atstcs Control Station Switch Functions
Run/Set Switch is in Run position. • This button can also be used to select a field (i.e. format, minute digits, hour digits) when the ENTER Run/Set Switch is in Set position. CLOCK DOWN START/STOP RESET INCREMENT ENTER © American Time... -
Page 10: Installation
9. Upon startup, the clock will flash the version number and then correct on the first successful SNTP time sync. This should take less than one minute. If the clock is not updating, review the steps listed above and reference Troubleshooting (page 26) for instruction. © American Time... -
Page 11: Control Station
(min.) RESET CHASSIS PIEZO RESET ENTER PIEZO BUZZER ENTER BUZZER NEUTRAL Green-Earth Gnd 120 VAC START/STOP White-Neutral line INCREMENT START/STOP 50/60Hz Black-Hot line INCREMENT ATSTCS Control Station Typical wiring for the Digital Clock/Timer with Control Station © American Time... -
Page 12: Digital Clock - Button Operation
Scrolling CANCEL Display Software Version Fig. 3 Press Enter Button Press Enter Button SOFt SOFt Display the software version Scrolling currently installed. sOFt UPdAtE Press Increment Button Press Increment Button Continue to Software Update on Following Page © American Time... - Page 13 Press Enter Button XXX_ XXX_ XXX_ XXX_ Press Increment Button Press Increment Button Press Enter Button -065 Range Example Optimal is: -070 Press Increment Button Press Enter Button SEtU CANC SEtU Scrolling Scrolling Scrolling SEtUP CANCEL SEtUP © American Time...
-
Page 14: Operation
Set the desired seconds the same way, then press ENTER. The display will then flash donE Set the SET/RUN switch back to the RUN position. n Note: A preset of 00:00:00 allows the digital clock/timer to be used as a standard elapsed timer with a maximum elapsed time of 30:59:59. © American Time... -
Page 15: Elapsed Time Counter
When the timer reaches 00:00:00, the timer will stop counting and the audible alarm will sound for 2 seconds. During a DOWN count elapsed time operation, you can display any of the other time functions using the UP/ DOWN/CLOCK switch as desired © American Time... -
Page 16: Code Blue
Digital Clock/Timer 20 ft. supplied cable. Can be extended to 30 ft. maximum using #22 AWG wire (min.) with 1/32” insulation (min.) RESET PIEZO ENTER BUZZER Green-Earth Gnd White-Neutral line START/STOP Black-Hot line INCREMENT ATSTCS Control Station © American Time... -
Page 17: Important Considerations
If the Code Blue contact opens and closes again before the Digital Clock/Timer is reset back to normal operation, the Code Blue timer will start over from 00:00:00. If a power failure occurs during any Code Blue event, the Code Blue timer will start over from 00:00:00. © American Time... -
Page 18: Limited Access Point Mode
. Press the Enter button and the clock Wi-Fi module will go into provisioning mode. SEtUP 1. Connect to the clock with a Wi-Fi enabled device (SSID will show up as American Time - xxxxxx under available wireless networks, where xxxxxx is the last 6 digits of the mac address. -
Page 19: Clock Configuration
14. FW Version – The current firmware version used on the Wi-Fi clock. 15. MAC Address – The Media Access Control (MAC) address is a unique identifier assigned to the Wi-Fi clock network hardware for communications. © American Time... -
Page 20: Wi-Fi Configuration
If you select this option, go to "a. Select an Existing Network" on page 21. b. Click on “Manual Configuration to Join a Network” if beacon is not active or is unavailable. If you select this option, go to "b. Manual Configuration to Join a Network" on page 23. © American Time... - Page 21 6. (a) Click on the "Select" button next to the SSID you wish to configure your clock to. 7. (a) Enter security information (if required for your network) and click next. Example Example Example Example Example Example Example Example Example © American Time...
- Page 22 Note: If a static IP address is required, check the Advanced Options and select “Static IP Address Configuration” radial button. n Note: For Enterprise Security, see Appendix C 8. (a) Select "Save and Apply" button to save and exit to normal operation. © American Time...
- Page 23 Note: If a static IP address is required, check the Advanced Options and select “Static IP Address Configuration” radial button. n Note: For Enterprise Security, see Appendix C. 6. (b) Click the next button to continue. 7. (b) Click on the Save and Apply button to save and exit to normal operation. © American Time...
-
Page 24: Administrator Settings
3. Enter Username into text field (leave blank to disable security for limited access point mode). 4. Enter Password and confirm in to the the password text fields (leave both blank to disable security for limited access point mode). 5. Click on click on “Save and Apply”. © American Time... -
Page 25: Firmware Update / Factory Defaults Restore
American Time preconfigures your clock settings prior to shipment to you. These preconfigured settings are stored in memory even after settings have been changed. n Note: If your clock was not preconfigured at American Time, completing the factory defaults restore process will not help. Refer to configuration section of this manual to reconfigure your clock. -
Page 26: Troubleshooting
Note: NIST time servers will reject multiple time requests from the same IP address. a. Change to internal time server or use Pool Domain Name option of SNTP configuration. If the above steps do not resolve the issue, please contact American Time at 800-328-8996 or techs@atsclock.com. -
Page 27: Operator Maintenance
However, to assure the reliability of this product, it is recommended that the Digital Clock/Timer be tested at least every six (6) months with the Control Station and Code Blue contact for operation in accordance with wiring configurations used. © American Time... -
Page 28: Appendix A: Enterprise Security Configuration
7. Click on "Upload Certificates" button (if applicable) a. If certificates are used, continue with step 8, otherwise skip to step 12 n Note: The CA certificate upload to the clock(s) is not required for clock to function on PEAPv0 security. © American Time... - Page 29 9. Select CA Root Certificate n Note: This file must be DER encoded to function properly on clock(s) 10. Click on "Upload" button 11. Close certificate upload window 12. Click on "next" button 13. Click on "Save and Apply" button © American Time...
-
Page 30: Appendix B - Sntp Time Servers / Appendix C - Supported Time Zones
+9.5 +9.5 UTC+10:00 UTC+10:30 +10.5 +10.5 UTC+11:00 UTC+11:30 +11.5 +11.5 UTC+12:00 UTC+12:45 +12.75 +12.75 UTC+13:00 UTC+14:00 UTC-01:00 UTC-02:00 UTC-03:00 UTC-03:30 -3.5 -3.5 UTC-04:00 UTC-04:30 -4.5 -4.5 UTC-05:00 UTC-06:00 UTC-07:00 UTC-08:00 UTC-09:00 UTC-09:30 -9.5 -9.5 UTC-10:00 UTC-11:00 UTC-12:00 © American Time... -
Page 31: Appendix D - Operator Flowchart
Press RESET to reset counter To stop and hold code blue time for viewing, press START/STOP To Reset Clock/Timer to Normal Operation CLOCK DOWN Place SET/RUN switch START/STOP RESET momentarily in SET position and return switch to RUN position INCREMENT ENTER © American Time...
