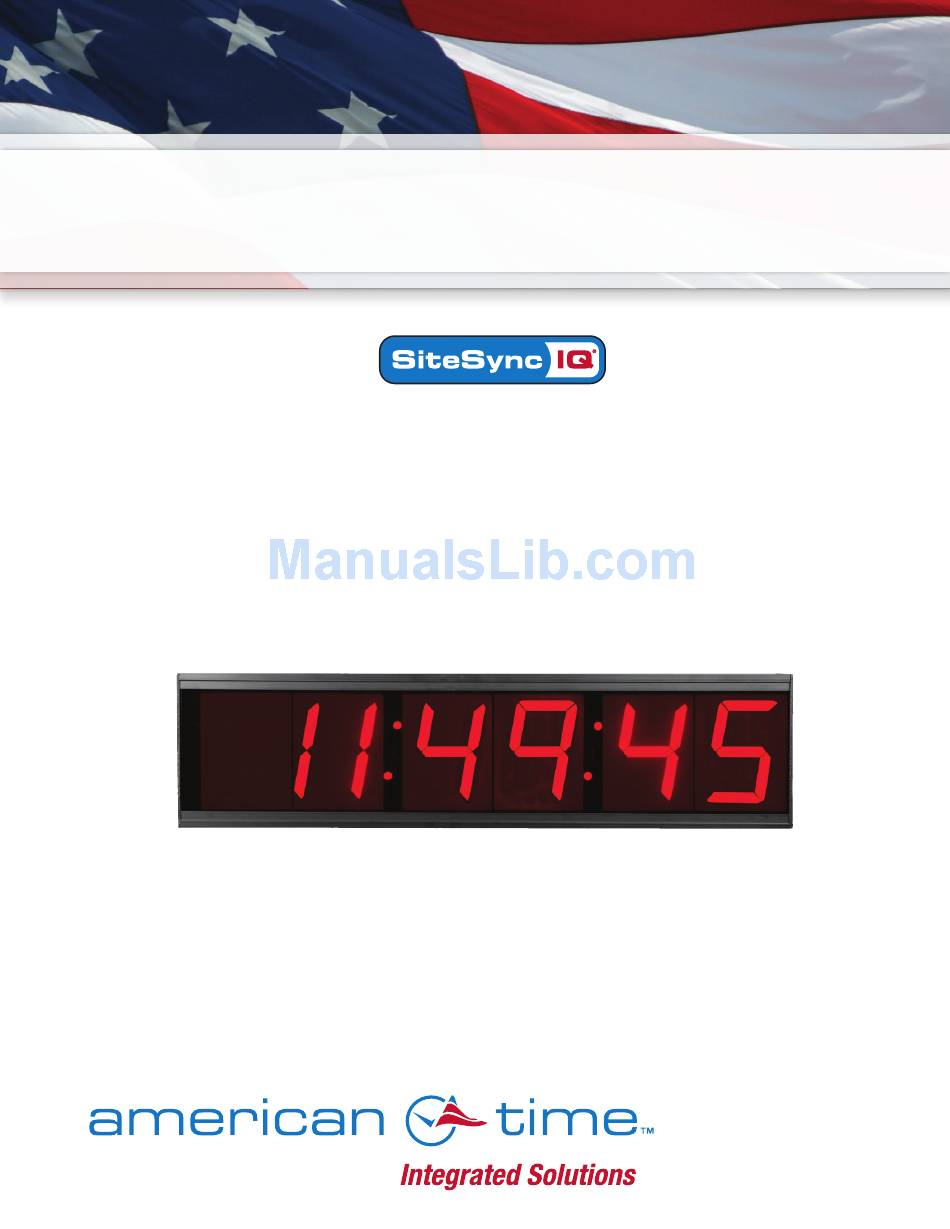

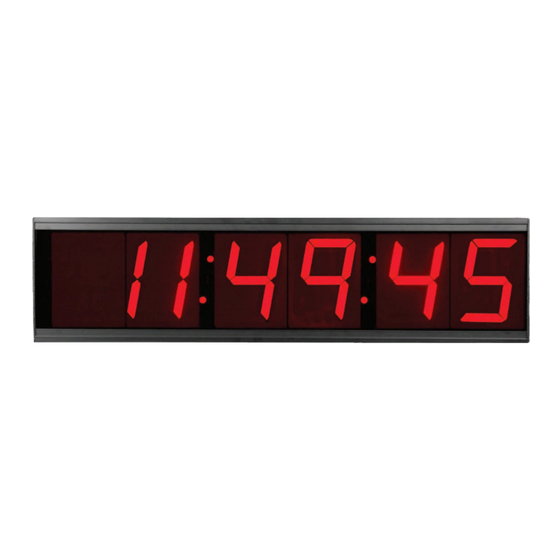

- Page 1 Installation and Operation Manual Wireless Digital Clock/Elapsed Time Indicator with Code Blue Part # H004789 Rev. 1 June 2014...
- Page 2 Electrical Shock Hazard SQA461RSxE Owner's Manual WARNING: Hazardous voltage in electrical equipment can cause severe personal injury or death. Inspection, installation, and preventive maintenance should only be performed on equipment to which power has been turned off, disconnected and electrically isolated so no accidental contact can be made with energized parts.
-
Page 3: Table Of Contents
Table of Contents SQA461RSxE Owner's Manual Important Installation and Warranty Information ....................4 Specifications ................................5 Description .................................6 SQA461RSxE Digital Clock/Timer ........................6 ATSTCS Control Station ...........................7 Installation Instructions ............................8 SQA461RSxE Installation Instructions ........................8 ATSTCS Installation Instructions ........................9 Operation ................................10 Power Up ...............................10 Setting Time ..............................10... -
Page 4: Important Installation And Warranty Information
SQA461RSxE Owner's Manual IMPORTANT INSTALLATION AND WARRANTY INFORMATION WARRANTY INFORMATION: American Time (the Manufacturer) provides a limited warranty to the Original Purchaser of this product. The Original Purchaser is the party to whom the Manufacturer issued its Sales Order, generally the Manufacturer’s distributor. -
Page 5: Specifications
Specifications SQA461RSxE Owner's Manual GENERAL Weight: ......Digital Clock/Timer ....... 8.80 lb........ATSTCS Control Station ......0.27 lb. External Dimensions: ..Digital Clock/Timer ....... 6.1"h x 24"w x 3.5"deep .......ATSTCS Control Station ......4.63"h X 4.56"w X 1.25"deep SPECIFICATIONS ELECTRICAL Power Requirements (Digital Clock/Timer only): Line Voltage: .................. -
Page 6: Description
ATSTCS control panel. The Code Blue up counting elapsed timer will override all other modes of operation if used. The SQA461RSxE can function as a 12-hour or 24 hour clock which is synchronized by the SiteSync IQ wireless clock system. -
Page 7: Atstcs Control Station
Control Station Switch Functions SQA461RSxE Owner's Manual Run/Set Switch - Set Position: This position is used to set a preset up or down counting time (Timer). It is also used to reset the Code Blue timer. This position is not used for setting time. The controller will allow you to enter in a 12/24 hour mode and set a time. -
Page 8: Installation Instructions
Clock/Timer Installation SQA461RSxE Owner's Manual The Digital Clock/Timer can be mounted to a single or double gang box. To install the Digital Clock/Timer, follow the instructions below. Ensure that installation conforms to the National Electrical Code and local wiring codes. -
Page 9: Atstcs Installation Instructions
Control Station Installation SQA461RSxE Owner's Manual The ATSTCS Control Station can be mounted to a double gang box, 1 inch deep or deeper. The Control Station can be mounted up to 30 feet away from the Digital Clock/Timer. The recommended minimum interconnecting field wire size is #22.8 AWG stranded wire. -
Page 10: Operation
Operation SQA461RSxE Owner's Manual Powering Up Before applying power, place the SET/RUN switch to the RUN position and the UP/DOWN/CLOCK switch to the CLOCK position. Apply power to the unit. The displays may rotate during the power on self test and then a version number will appear for a few seconds. -
Page 11: Up Counter Elapsed Time Operation
Operation SQA461RSxE Owner's Manual Up Counter Elapsed Time Operation Once the desired preset value has been set, the unit is now ready to function as an UP count elapsed timer. Be sure the SET/RUN switch is in the RUN position. -
Page 12: Code Blue
Code Blue SQA461RSxE Owner's Manual Description The Code Blue feature provides an override which forces the clock into a special count up elapsed time mode. No matter which of the three normal functions is being displayed, Code Blue input will cause the unit to begin counting elapsed time from 00:00:00. -
Page 13: Important Considerations
Importan Considerations SQA461RSxE Owner's Manual The ATSTCS must be in the RUN mode for Code Blue to override. The 12vac/vdc to 30vac/vdc signal that starts the Code Blue timer originates from equipment external to the Digital Clock/ Timer. The external equipment usually employs a switch device (i.e., a relay contact) to apply this signal. That switching device is often referred to as the Code Blue contact. -
Page 14: Maintenance
An incompatible battery may leak or explode, causing equipment damage and/ or personal injury! If battery must be replaced, contact American Time at 800-328-8996. System Maintenance The Digital Clock/Timer and ATSTCS Control Station have been manufactured for years of dependable, reliable use. However, to assure the reliability of this product, it is recommended that the Digital Clock/Timer be tested at least every six (6) months with the Control Station and Code Blue contact for operation in accordance with wiring configurations used. -
Page 15: Appendix 1: Operators Flowchart
Appendix SQA461RSxE Owner's Manual Appendix 1 Operator's Flowchart To Set Time To Set UP Counter Preset To Set DOWN Counter Prese UP/CLOCK/DOWN switch in UP/CLOCK/DOWN switch in UP UP/CLOCK/DOWN switch in CLOCK position position DOWN position SET/RUN switch in SET position...
