Safety Vision RoadRecorder 7000 User Manual

Hide thumbs Also See for RoadRecorder 7000:
Table of Contents

Advertisement

Quick Links

ROADRE CO RDER
7000 NVR
®
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoadRecorder 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Safety Vision RoadRecorder 7000

Summary of Contents for Safety Vision RoadRecorder 7000

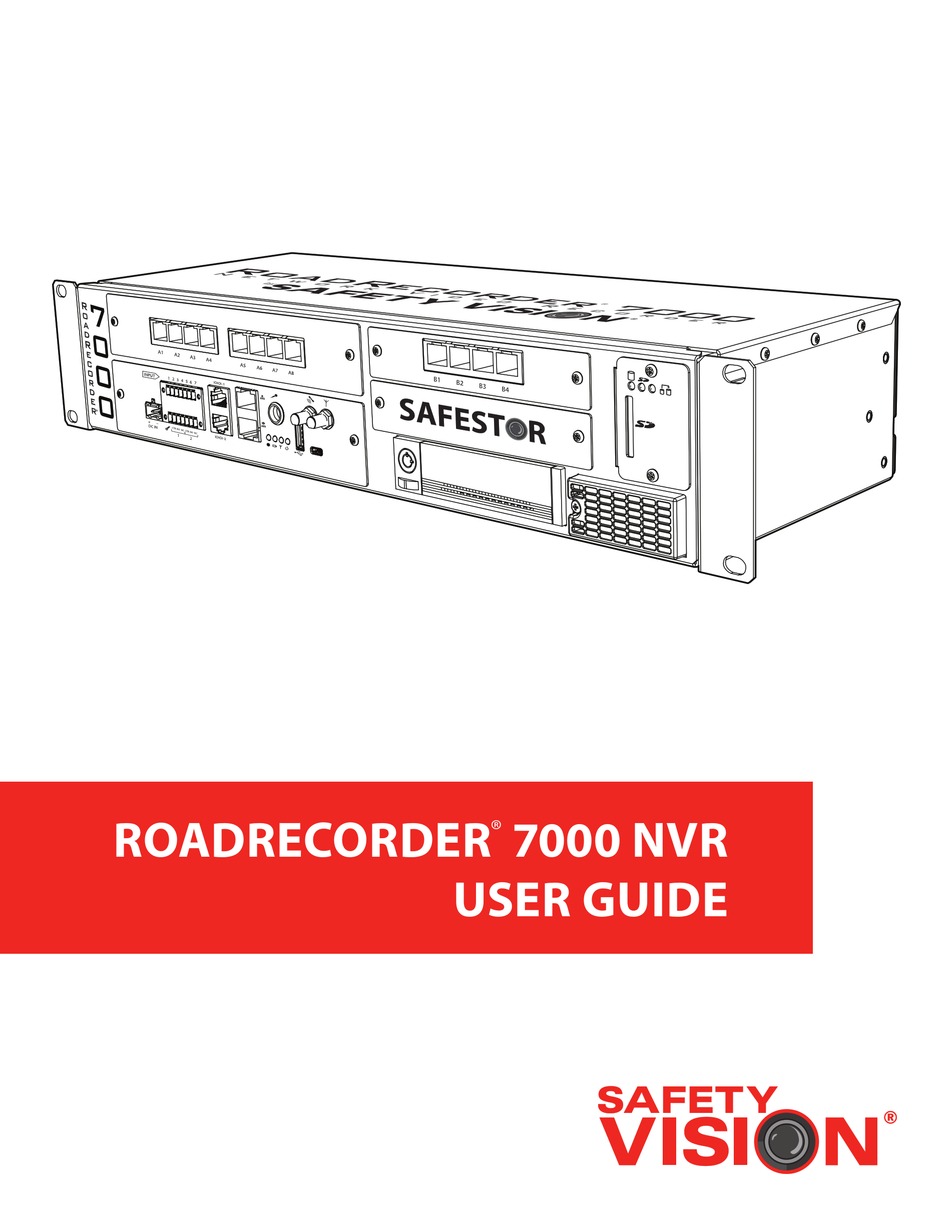

  • Page 1 ROADRE CO RDER 7000 NVR ® USER GUIDE...

  • Page 2: Important Notices

    This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.

  • Page 3: Table Of Contents

    ROADRECORDER 7000 NVR USER GUIDE CONTENTS Components Front Panel Communications Module SD Card/UPS Module LCD Control Panel 200043 50-000001 Installation Main Wiring Diagram Rack Mount Flat Mount Lock Box Air Filter Replacement Video Retrieval Hard Drive SD Card 50-000001 LCD Control Panel...
  • Page 4 ROADRECORDER 7000 NVR USER GUIDE Audio/Video Settings PoE Settings Sensor Settings Recording Thresholds GPS/GEO Fence Camera Sensor Status GPS Status Recorder Status Tag Events Appendix A: Specifications Appendix B: Dimensions Appendix C: Axis Device Configuration Appendix D: GPS Coordinate Conversion...

  • Page 5: Components

    ROADRECORDER 7000 NVR USER GUIDE Components Front Panel 1 - Primary Modular Slot - Camera inputs A1 through A8. Each input is power over Ethernet (POE) enabled. 2 - Secondary Modular Slot - Camera inputs 9 through 12 (labeled B1 through B4, respectively).

  • Page 6: Communications Module

    200043). For further information regarding the configuration of the 5 and 6 - Antenna Connectors - Reserved for future RoadRecorder 7000 NVR, see the Configuration chapter. development. 7 - Micro-B USB Port - For Service Technician use only. 8 - Standard-A USB Port - Use a USB to serial port adapter...

  • Page 7: Sd Card/Ups Module

    ROADRECORDER 7000 NVR USER GUIDE SD Card/UPS Module 1 - SSD Status LED LED Color Status 1, 2, 3 - Status LEDs - See tables at right. Green On: SSD OK (mounted) Blink: SSD activity Orange On: SSD in offload 4 - SD Card Slot - Insert or remove the SD card.

  • Page 8: Lcd Control Panel

    50-000001 The 50-000001 LCD Control Panel is designed to provide advanced functionality with the RoadRecorder 7000 NVR. See the 50-000001 LCD Control Panel chapter for more information. 1 - LCD Display - Displays alerts and statuses. 2 - Esc Button - Press the Esc Button to cancel the current command a return to the display.

  • Page 9: Installation

    ROADRECORDER 7000 NVR USER GUIDE Installation Main Wiring Diagram...
  • Page 10 Be aware that removing and reconnecting power to the NVR in short periods of time (such as during some vehicle maintenance procedures) may cause hard drive failure, leading to corrupt recorded video and other data. Safety Vision recommends properly shutting down the NVR before removing the main power harness when cycling of the vehicle’s power is to occur: Remove the ignition source.

  • Page 11: Rack Mount

    Ensure that the front panel of the RoadRecorder NOTE: 7000 NVR remains visible and accessible. Do not install the RoadRecorder 7000 NVR in an area of the vehicle cabin that could interfere with the safe operation of the vehicle. Flat Mount...

  • Page 12: Lock Box

    T15 security bit screws. NOTE: Do not install the RoadRecorder 7000 NVR lock box in an area of the vehicle cabin that could interfere with the safe operation of the vehicle.

  • Page 13: Air Filter Replacement

    ROADRECORDER 7000 NVR USER GUIDE Air Filter Replacement The RoadRecorder 7000 NVR includes a replaceable air filter behind the front air intake to protect the internal components from potential contaminates. Use the following procedure to replace the air filter. Remove the T10 security bit screw securing the filter housing to the front panel.

  • Page 14: Video Retrieval

    ROADRECORDER 7000 NVR USER GUIDE Video Retrieval The RoadRecorder 7000 NVR can be configured to record video on the hard drive or both the hard drive and the SD card. See the SD Card Settings section of the Configuration chapter for more information.

  • Page 15: Sd Card

    Use only SD cards obtained from Safety Vision. Reinsert the SD card in the same manner: push it straight in until a “click” is felt, then release. WARNING: Do not force the SD card into the RoadRecorder 7000 NVR upside down or backwards.

  • Page 16: 50-000001 Lcd Control Panel

    Select Firmware version to display the firmware version currently installed on the NVR. This information may be To HDD useful when speaking with Safety Vision Technical Support. Press the center navigation key to select To HDD. Use the directional navigation keys to highlight the characters of the...

  • Page 17: Configuration

    ROADRECORDER 7000 NVR USER GUIDE Configuration The RoadRecorder 7000 NVR can be configured through the on-board web interface, which must be accessed with a PC and web browser. Connecting to the NVR Use the following procedure to access the configuration web server using the default IP address: Connect the PC to the NVR’s Ethernet WAN RJ-45 port...

  • Page 18: Help Windows

    ROADRECORDER 7000 NVR USER GUIDE Help Windows Each screen of the RoadRecorder 7000 NVR configuration interface includes a comprehensive help menu. The help menus explain the functionality and parameters of each field. To access the help menu for a screen, simply click the Help button at the top right of the screen.

  • Page 19: Product Details

    ROADRECORDER 7000 NVR USER GUIDE Product Details Select the information icon on the top left hand corner to view the Product Details page. The Product Details page displays factory configured identification fields as well as the status of the removable hard drive (primary), SafeStor (secondary), and SD card.

  • Page 20: Live View

    ROADRECORDER 7000 NVR USER GUIDE Live View The Live View page allows you to see the field of view of any connected camera, allowing you to focus and properly adjust the image. The Live View requires the installation of VLC Media Player, available free from the developer.

  • Page 21: Snapshot Viewer

    ROADRECORDER 7000 NVR USER GUIDE Snapshot Viewer The Snapshot Viewer allows you to see still images taken from camera configured to record MJPEG. To view a camera’s snapshots, first select the camera. As the camera produces MJPEG still images, they will be available to view in sequential order.

  • Page 22: Firmware/Config

    A status bar appears as the firmware update is automatically applied. Download NVR Firmware from Safety Vision If the connected PC has internet access, click this link to be directed directly to Safety Vision’s FTP site. Contact your Account Executive for login information.

  • Page 23: Storage

    ROADRECORDER 7000 NVR USER GUIDE Storage The Storage page allows you to configure the storage device(s) of the NVR. Primary Storage Primary Storage Media Device: Select “Internal SSD” as the Primary storage device. Primary Storage Media Setup: Single Partition is by default enabled for Media Setup.

  • Page 24: Network Settings

    ROADRECORDER 7000 NVR USER GUIDE Network Settings The Network Settings page configures the WLAN interface and Mail server settings. NVR Detail NVR name: Enter the name of the Restrictions: Only alphanumeric characters are allowed with a maximum length of 15 characters.

  • Page 25: Date/Time

    ROADRECORDER 7000 NVR USER GUIDE Date/Time The Date/Time settings page configures allows modification of the NVR’s time zone. Timezone Select the time zone the vehicle travels in most frequently. Time Sync Priority Use the Time Sync Priority fields to select which device has priority in providing the NVR with time stamp data.

  • Page 26: Change Password

    ROADRECORDER 7000 NVR USER GUIDE Change Password webUI Password Change password for login into NVR system User: Select the user for which you want to change webUI password. Several different levels of user access can be selected in the User field:...

  • Page 27: Startup & Shutdown

    ROADRECORDER 7000 NVR USER GUIDE Startup & Shutdown The Startup & Shutdown page configures conditions when the NVR can automatically start and shut down. Startup Enable startup due to acceleration: If enabled, acceleration above threshold value will be counted as a start-up condition and recording will be done for user-configurable duration.
  • Page 28 ROADRECORDER 7000 NVR USER GUIDE Startup & Shutdown (cont.) Shutdown Continue recording after Ignition Off: If enabled, Recording continues for the specified period, even after the shutdown even is triggered, provided that vehicle power is available. Record Duration: Specified the time up to which recording should be continued.

  • Page 29: Audio/Video Settings

    ROADRECORDER 7000 NVR USER GUIDE Audio/Video Settings The Audio/Video Settings page sets the number of cameras connected to the NVR in addition to their individual configurations. Camera Discovery Click Discover All to search for all available connected cameras upon initial installation and setup of the NVR.
  • Page 30 ROADRECORDER 7000 NVR USER GUIDE Audio/Video Settings (cont.) Device Name: Enter a unique name. A device can be Snapshot: Streams configured as mjpeg can be used for uniquely identified by this name. taking photos at regular intervals. To configure a stream...

  • Page 31: Poe Settings

    ROADRECORDER 7000 NVR USER GUIDE PoE Settings The PoE Settings page configures the PoE ports of the NVR. If the checkbox is checked, PoE port is active and is receiving power. If not utilizing a PoE port, uncheck the checkbox to turn off power to selected port.

  • Page 32: Sensor Settings

    ROADRECORDER 7000 NVR USER GUIDE Sensor Settings The Sensor Settings page configures settings for the sensors and fault statuses. Sensor Inputs Name: The NVR has trigger inputs, and for easy identification these trigger inputs can be configured to have user defined names which can be entered in this field for any particular trigger input.
  • Page 33 ROADRECORDER 7000 NVR USER GUIDE Sensor Settings (cont.) Selecting External Device will turn ON that Control output to switch ON the external device connected to that control out, selecting Fault Status will enable functionality to support Fault Status interface on that control output & selecting None will disable that control output.

  • Page 34: Recording

    Restrictions: File size can be configured from 50 MB to 1024 MB. Decimal values not allowed. Safety Vision strongly recommends retaining the default settings of 100MB. Event Recorder Settings When any event is triggered, audio/video data of event interval is recorded in a different file which can be extracted later.

  • Page 35: Thresholds

    ROADRECORDER 7000 NVR USER GUIDE Thresholds Ignition Startup minimum ignition value: Minimum ignition value, given in volts, to start NVR system. The NVR system will power on only if given ignition power is greater than configured ignition value. Restrictions: Start-up ignition value should be always greater than shutdown ignition value.

  • Page 36: Gps/Geo Fence

    ROADRECORDER 7000 NVR USER GUIDE GPS/GEO Fence The GPS/GEO Fence page configures the GPS signal priority and sets up the Geo Fence feature. GPS Priority Use the GPS Priority fields to select which device has priority in providing the NVR with GPS data. In...

  • Page 37: Camera

    ROADRECORDER 7000 NVR USER GUIDE Camera The Camera diagnostics page provides comprehensive support for technicians installing and troubleshooting the NVR’s camera installation. Camera Status The Camera Status display shows the camera name, IP address, and operational status of each camera.

  • Page 38: Sensor Status

    ROADRECORDER 7000 NVR USER GUIDE Sensor Status The Sensor Status diagnostics page provides assistance when installing or troubleshooting the NVR’s sensors. Select a Refresh Interval (the frequency at which the web page will refresh) and the Test Duration (in minutes), then click Go.

  • Page 39: Gps Status

    ROADRECORDER 7000 NVR USER GUIDE GPS Status The GPS Status diagnostics page provides assistance when installing or troubleshooting the NVR’s GPS. Select a Refresh Interval (the frequency at which the web page will refresh) and the Test Duration (in minutes), then click Go.

  • Page 40: Recorder Status

    ROADRECORDER 7000 NVR USER GUIDE Recorder Status The Recorder Status page allows you to download NVR logs and diagnostic reports, as well as display the status of the removeable hard drive (primary) SafeStor (secondary). NVR Status The status of the NVR is displayed as Recording, Configuring, Offloading, or Safetynet Offloading.

  • Page 41: Tag Events

    ROADRECORDER 7000 NVR USER GUIDE Tag Events The Tag Events screen allows a supervisor or other authorized user to manually and immediately trigger an event by clicking Tag Supervisor Event. This feature is useful in emergency situations where the web interface can be accessed wirelessly by a supervisor vehicle.

  • Page 42: Appendix A: Specifications

    ROADRECORDER 7000 NVR USER GUIDE Appendix A: Specifications SPECIFICATIONS Part Nos. 7000-NVR Operating System Embedded Real Time Linux Audio: 12 channels (network RJ45 connector) Audio/Video Inputs Video: 12 channels (network RJ45 connector) 16 channels with external PoE switch Audio/Video Outputs N/A Audio/Video Compression G.711/H.264...

  • Page 43: Appendix B: Dimensions

    ROADRECORDER 7000 NVR USER GUIDE Appendix B: Dimensions 17.06...

  • Page 44: Appendix C: Axis Device Configuration

    ROADRECORDER 7000 NVR USER GUIDE Appendix C: Axis Device Configuration The RoadRecorder 7000 NVR supports both the Safety Vision SVC-2200 series cameras in addition to Axis network cameras. Configuration is identical except Axis cameras must be configured with the login and password both set to root.

  • Page 45: Appendix D: Gps Coordinate Conversion

    ROADRECORDER 7000 NVR USER GUIDE Appendix D: GPS Coordinate Conversion The Threshold Settings page of the Web Configuration requires GPS coordinates be entered in degrees, minutes, and decimal minutes format. However, GPS coordinates are typically displayed in decimal degree format. Use...
  • Page 46 ROADRECORDER 7000 NVR USER GUIDE FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 48 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640 www.safetyvision.com...
