Setup
IMPORTANT:
Before following these instructions, your monitor must be wall mounted or attached to a stand or cart which meets
or exceeds the safety requirements for this monitor and follows all manufacturer safety precautions and instructions.
Removing Orange Tape
After mounting the INF7020 monitor, carefully remove all orange tape.

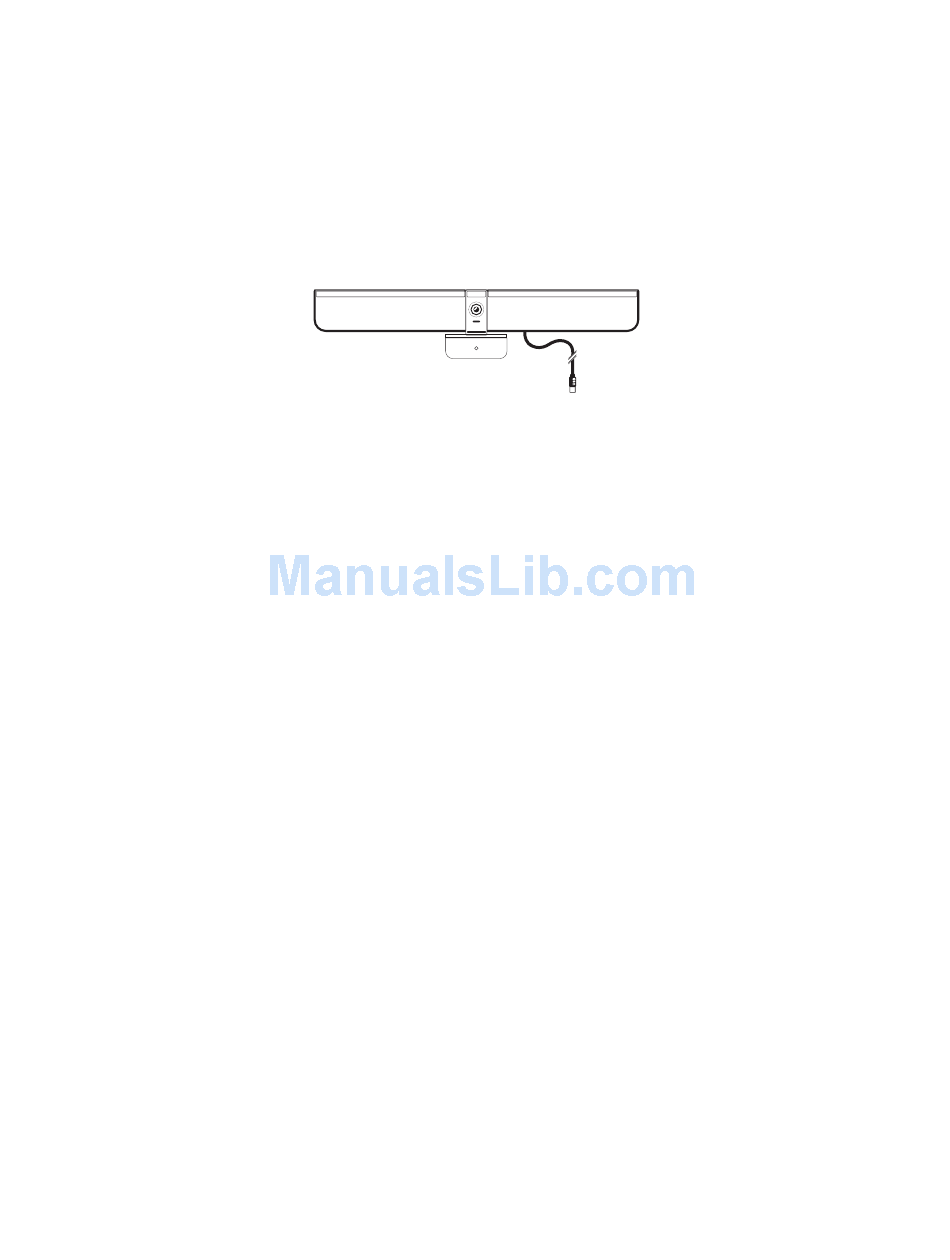

Attaching the HD Video Conferencing Camera
1)
Center the camera along the top edge of the monitor, aligning the camera bracket with the screw hole on the back of the moni-
tor.
2)
Securely attach the camera bracket to the monitor using the provided screw.
3)
Plug the USB cable into an available USB slot on the computer module.
been pre-measured.
4)
Remove the plastic film from the camera lens.
5)
Manually tilt and pan the camera (+/40°) as desired.
Attaching the Antennas
1)
Attach the two antennas into the computer module on the back of the monitor by turning the antennas clockwise until secure.
2)
Adjust the angle of the antennas as needed to maximize wireless signal strength.
Attaching the Sound Bar
Refer to the Sound Bar user documentation.
Page 2
NOTE:
It is not necessary to unwrap the cable. It has
