INF7012
Hardware Guide
70吋液晶電腦
009-1660-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INF7012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InFocus INF7012

Summary of Contents for InFocus INF7012

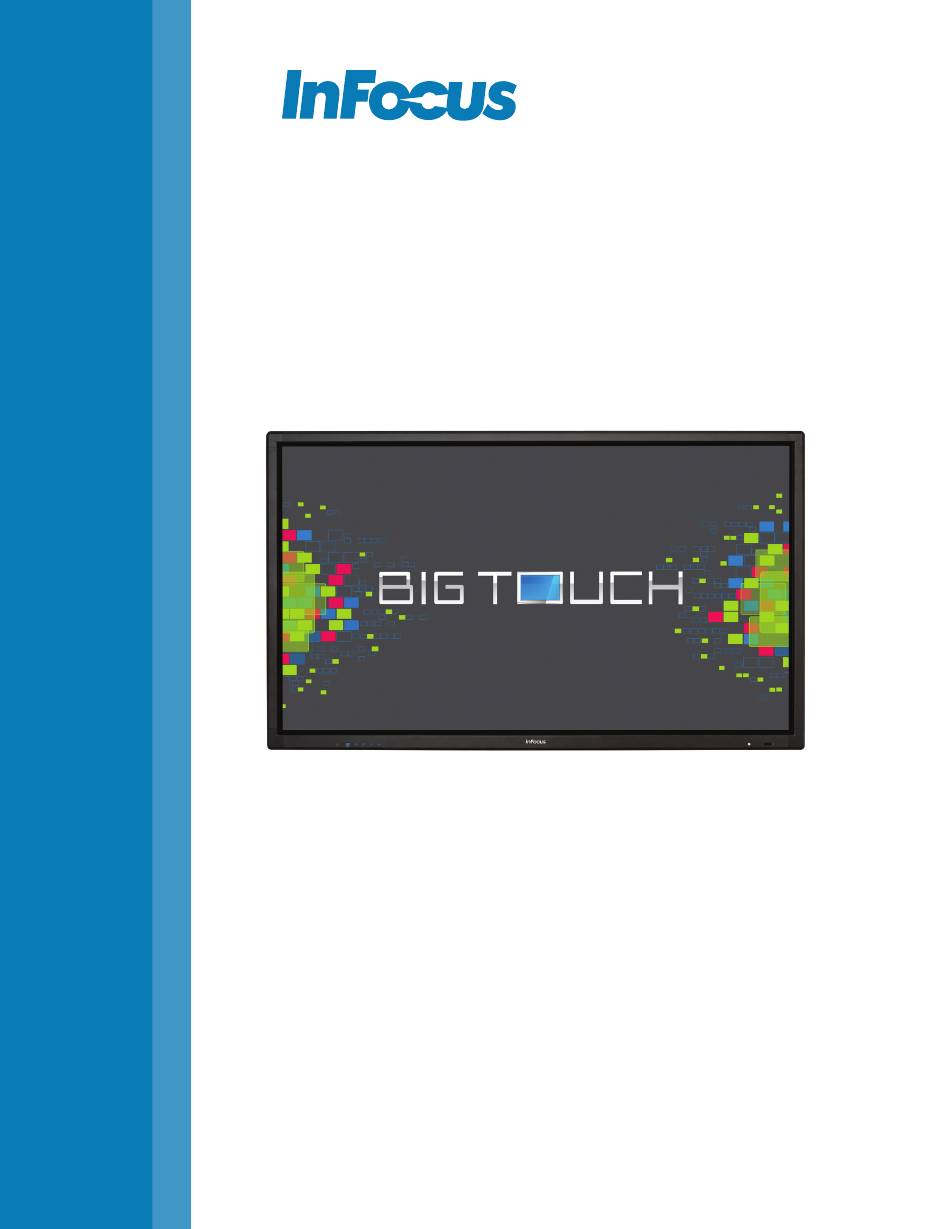

  • Page 1 INF7012 Hardware Guide 70吋液晶電腦 009-1660-00...

  • Page 2: Table Of Contents

    CONTENTS Declaration of Conformity ..........................................3 Safety Considerations ............................................. 4 安全資訊 ................................................5 What’s Included ..............................................7 Setup ..................................................8 Mounting ..............................................8 Connecting to other devices .........................................9 Connecting AC power..........................................12 External PC touchscreen control setup ................................... 12 Turning the Display On/Off .......................................... 12 Setting up the Wireless Mouse and Keyboard ..................................

  • Page 3: Declaration Of Conformity

    SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference.

  • Page 4: Safety Considerations

    This document applies to regulatory model: INF7023 Input ratings: AC 100-240V AC, 4.5A, 50-60Hz InFocus reserves the right to alter product offerings and specifications at any time without notice. SAFETY CONSIDERATIONS Please read and follow all safety instructions provided below and on the display before connecting the display to a power source. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by the equipment.

  • Page 5: 安全資訊

    Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own display can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...
  • Page 6 • 僅使用 InFocus 指定的更換零件。未經授權進行更換可能會造成火災、電擊或人身傷害，並可能使保修失效。 • 將顯示器安裝到牆上時，必須使用 8 枚公制（12 毫米）螺絲。此外，安裝介面應符合北美地區的 UL1678 標準。安裝方法應結實牢固，足以承受顯 示器的重量（參見產品技術規格）。 • 遵守這些指示有助於確保使用壽命內顯示器的圖像品質。不遵守這些指示可能會影響保修。 • 鋰電池注意事項（僅適用于發運時配有內嵌 PC 箱的型號）：如果更換的電池類型不正確，可能會有爆炸的風險。應按 照製造商的建議，使用相同或 同類型的電池進行更換。按照當地廢棄物品處理法規處理廢舊電池。 • [使用過度恐傷害視力] • 注意事項: • 1. 使用30分鐘請休息10分鐘 • 2. 2歲以下幼兒不看螢幕，2歲以上每天看螢幕不要超過1小時。 Page 6...

  • Page 7: What's Included

    (batteries not included) *Not included for all countries. For setup purposes, a keyboard and mouse are recommended. For additional accessory options, such as stands, feet, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. INF7012 Series Hardware Guide...

  • Page 8: Setup

    SETUP Mounting This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet this product's specifications and follow the manufacturer installation instructions. • Only use properly rated wall and stand mounting hardware that meet this product’s specifications and follow the manufacturer installation instructions.

  • Page 9: Connecting To Other Devices

    A (6), RJ45 (2), DisplayPort Out (1), RS232 (1), PC Audio Line In 3.5mm (1), Audio In 3.5mm (2), Audio In RCA (1-R/L), and Audio Out RCA (1-R/L). Antennas TOUCH CONTROL HDMI PC IN COMPONENT INF7012 Series Hardware Guide Page 9...
  • Page 10 Connect a USB cable from the display to an external computer in order to use TOUCH TOUCH touchscreen gestures on the display, or connect to another monitor in order to CONTROL CONTROL use touchscreen gestures on dual screens. Connect a wireless mouse, USB thumb drive or other USB device to this USB USB 1-4 Type A connector.
  • Page 11 AUDIO IN1 and component inputs. Connect an RCA L/R audio cable to an external device for the VGA and AUDIO IN2 component inputs. AUDIO OUT Connect an RCA L/R audio cable to external stereo speakers. INF7012 Series Hardware Guide Page 11...

  • Page 12: Connecting Ac Power

    Connecting AC power Connect one end of the AC power cord to the AC In jack on the back of the display. Connect the other end of the AC power cord to an AC outlet. Press the power switch. (The LED on the front of the display turns on.) NOTES: •...

  • Page 13: Setting Up The Wireless Mouse And Keyboard

    Replace the cover. If the keyboard is not auto-detected, press the CONNECT button on the top of the keyboard and hold it for one second to allow the keyboard to bind with the dongle. INF7012 Series Hardware Guide Page 13...

  • Page 14: Using The Remote

    USING THE REMOTE The remote uses two (2) AAA batteries (not included). Install the batteries by removing the cover from the remote’s back, aligning the + and – ends of the batteries, sliding them in place and replacing the cover. To operate, point the remote at the display sensor at the bottom right-hand corner of the display.
  • Page 15 Vol up: Increases the audio volume. VOL UP Vol down: Decreases the audio volume. VOL DOWN Mute: Switches the audio on or off. MUTE Freeze: When enabled, freezes the image which is currently displayed. INF7012 Series Hardware Guide Page 15...

  • Page 16: Using The Keypad

    Blank: Toggles between the source and a blank black screen. Dimming: Adjusts brightness level. USING THE KEYPAD The keypad, located on the side of the display, has the following buttons: Power button: Switches the power on or puts the display into Standby. Input button: Turns the Source menu on allowing the user to change sources.

  • Page 17: Osd (On-Screen Display) Menu System

    Enter Back Quit Adjust Enter Back Quit Adjust Enter Back Quit ADVANCED OPTION GAMMA SELECTION MODE1 OVER SCAN IR CONTROL NORMAL KEYPAD CONTROL LOCK DDC/CI ADVANCED OPTION RESET < > Adjust Enter Back Quit INF7012 Series Hardware Guide Page 17...

  • Page 18: Picture

    Picture PICTURE BRIGHTNESS CONTRAST SHARPNESS NATIVE COLOR TEMPERATURE COLOR CONTROL GREEN BLUE STANDARD PICTURE MODE PICTURE RESET < > Adjust Enter Back Quit Brightness: changes the intensity of the image. Range: 0-100. (Default 70.) Contrast: controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.

  • Page 19: Screen

    Dimming: Adjusts brightness level. Options: 10, 30, 70 or 100. (Default 70.) Aspect Ratio: adjusts the ratio of the image width to image height. Options: 4:3 and Wide. (Default Wide.) Screen Reset: resets all Screen menu items to factory default settings. Options: Yes and No. INF7012 Series Hardware Guide Page 19...

  • Page 20: Audio

    Audio AUDIO SPEAKER INTERNAL AUDIO SOURCE MONDOPAD AUDIO RESET < > Adjust Enter Back Quit Speaker: controls whether both the internal and external speakers (sound bar, etc.) or just external speakers are used. Options include: Internal (both internal and external speakers operate) and External (only external speakers operate). Default Internal. Audio Source: selects the audio input source.

  • Page 21: Pip

      HDMI1             HDMI2      HDMI3 HDMI4      Mondopad      INF7012 Series Hardware Guide Page 21...

  • Page 22: Configuration 1

    Configuration 1 CONFIGURATION 1 LANGUAGE ENGLISH AUTO SOURCE USB HUB SWITCH AUTO CONFIGURATION RESET FACTORY RESET < > Adjust Enter Back Quit Language: switches the OSD menu language. Auto Source: When enabled, automatically searches for an active source. If no source is detected, the display will revert to the previously active source.

  • Page 23: Configuration 2

    OSD V Position: adjusts the vertical position of the OSD menu. Range: 0-100. (Default: 50) OSD Rotation: rotates the image to either a landscape or portrait mode. Options include: Portrait and Landscape. Display Information: This read-only submenu displays the model name, serial number, operation hours, and software version. INF7012 Series Hardware Guide Page 23...

  • Page 24: Advanced Option

    Advanced option ADVANCED OPTION GAMMA SELECTION MODE1 OVER SCAN IR CONTROL NORMAL KEYPAD CONTROL LOCK DDC/CI ADVANCED OPTION RESET < > Adjust Enter Back Quit Gamma Selection: adjusts the gamma value of the image and optimizes image brightness and contrast. Options include: Mode 1, Mode 2, Mode 3.

  • Page 25: Troubleshooting

    Verify you are pointing the remote at the table and are within 26’ (8m) and 30 degrees (horz/vert) of the sensor. • Verify that the IR Control setting in the Advanced Option OSD menu is set to Normal. INF7012 Series Hardware Guide Page 25...
  • Page 26 Keypad and/or mouse is not working • Make sure the batteries are installed in the proper orientation and are not dead. • Press the Connect button on the bottom of the keypad. • Verify the USB adapter is installed into the display's USB port. •...
  • Page 27 3) Plug another electrical device to the power outlet to verify that the outlet is supplying the proper voltage. For additional troubleshooting support, please contact: InFocus Corporation - Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support...

  • Page 28: Limited Warranty

    If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or...
  • Page 29 (l) if the product is not used under normal operating conditions which are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced.
  • Page 30 InFocus will provide warranty service either (i) at an ASP location, where service is performed at the location, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you prepaid way bills (and if...
  • Page 31 InFocus specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to InFocus.  In cases where it is required to return the defective part to InFocus, you must ship the defective part back to InFocus within a defined period of time, normally five (5) business days, and clearly display the Return Material Authorization (RMA#) on the outside of the shipping carton or a similar package affording an equal degree of protection.

  • Page 32: 安全注意事項

    安全注意事項 在將顯示器連接到電源之前，請仔細閱讀並遵守顯示器上提供的下述安全說明。如不遵守安全說明則可能導致火災、觸電或 人身傷害，並可能損壞或 損害對設備所提供的保護。 請妥善保存所有安全說明。 • 這種顯示器是非常沉重的，應由至少兩個人進行搬動和安裝。不要試圖自行搬動或安裝顯示器，否則可能造成傷害和/ 或損害。 • 搬動顯示器時，利用手柄和側板或底板始終牢固地把持住顯示器。不要把持頂板。 • 在搬動顯示器紙箱時，不要傾斜或倒置紙箱。始終將其保持在豎直方向。 • 在移動顯示器前，請斷開所有配件和電纜。 • 如果顯示器安裝在牆上，顯示器與牆壁之間的距離至少保持為 1.98 英寸（5釐米），以提供足夠的通風。 • 請參閱正確的開機和關機程式方面的指南。 • 遵循本手冊和顯示器上的所有警告和注意事項。 • 顯示器的安放位置遠離加熱和冷卻通風孔至少 4 英尺（1.2米）。 • 請勿堵塞通風口。顯示器放在通風良好且不阻礙進氣口和排氣口的地方。 • 不要在諸如散熱器、熱記錄器、火爐或其他發熱設備（包括放大器）等熱源附近安裝或使用顯示器或揚聲器。 • 不要將顯示器放置在陽光直射、潮濕、油膩或灰塵較多的地方，或顯示器可能接觸到雨水、煙霧或蒸汽的地方。 • 顯示器使用的電源線不應該靠近水，例如靠近浴缸、洗臉盆、廚房水槽、游泳池等。 • 不要在靠近水的地方使用顯示器的任何元件，包括揚聲器。警告：為減少火災或觸電的危險，請勿將本設備和該設備的 任何元件淋雨或受潮。 • 請勿摔落顯示器。 • 不要將液體灑在顯示器上。濺落的液體可能損壞顯示器。...
  • Page 33 • 只使用富可視公司指定的更換零部件。未經認可的代用品可能會導致火災、觸電或人身傷害，並可能導致保修失效。 • 在將顯示器安裝到牆上時，必須使用 M8 (12 毫米) 規格的螺栓。此外，安裝介面應符合北美 UL1678 標準。安裝方 式應牢固到足以承受顯示器的重量。 • 請遵照以下說明，以確保顯示器使用壽命期間的圖像品質。不遵守這些說明可能會影響保修。 • 鋰電池（PC 主機殼中的）注意事項：如果更換的電池類型不正確，則有爆炸的危險。更換的電池應為相同類型，或製 造商推薦的等效類型。根據當地 處理法規處理廢舊電池。 INF7012 Series Hardware Guide Page 33...

  • Page 34: Bigtouch 70"顯示器I/O Port 介紹前/後面板

    BIGTOUCH 70"顯示器I/O PORT 介紹前/後面板 Antennas TOUCH CONTROL HDMI PC IN COMPONENT TOUCH 將USB纜線從顯示器連接至外部電腦，以便使用觸控模組。 通过 USB 线 TOUCH CONTROL 缆，将另一台Monitor的触控模组分享至该设备，实现双触控功能. CONTROL 連接無線鼠標、U盤等其他連接USB Type-A的設備，兼容 USB2.0&USB3.0。 Page 34...
  • Page 35 差視訊(YPbpr)訊號。 ANTENNAS 無線數據的接收和發射。 Antennas POWER 開啟/關閉主機。 DISPLAYPORT 將內部信號通過DISPLAYPORT線纜輸出至另一台顯示器上。 連接無線鼠標、U盤等其他連接USB Type-A的設備，兼容 USB-A USB2.0&USB3.0。 連接到乙太網絡 (10/100/1000 Mbps)。 RJ45 通過遠程操作控制設備。 RS232 PC AUDIO 連接 PC 模組的音訊源中的一行。 LINE IN 接收來自外部裝置（例如iPod播放器）所發出的音頻訊號。 AUDIO IN1 接收來自外部裝置（例如DVD播放器）所發出的音頻訊號。 AUDIO IN2 連接到外接式立體聲喇叭。 AUDIO OUT INF7012 Series Hardware Guide Page 35...
  • Page 36 開啟或關閉顯示器。 功能1：切換屏幕顯示Source功能。2：選取/確認OSD功能表中的選項。 在OSD 功能表中向上捲動瀏覽各個設定和選項。 在OSD 功能表中向下捲動瀏覽各個設定和選項。 在OSD 功能表中向左捲動瀏覽各個設定和選項。 當OSD菜單關閉時，這個按鈕降低音 量。 在OSD 功能表中向右捲動瀏覽各個設定和選項。當OSD菜單關閉時，這個按鈕提高音 量。 開啟或關閉OSD 功能表。 Page 36...
