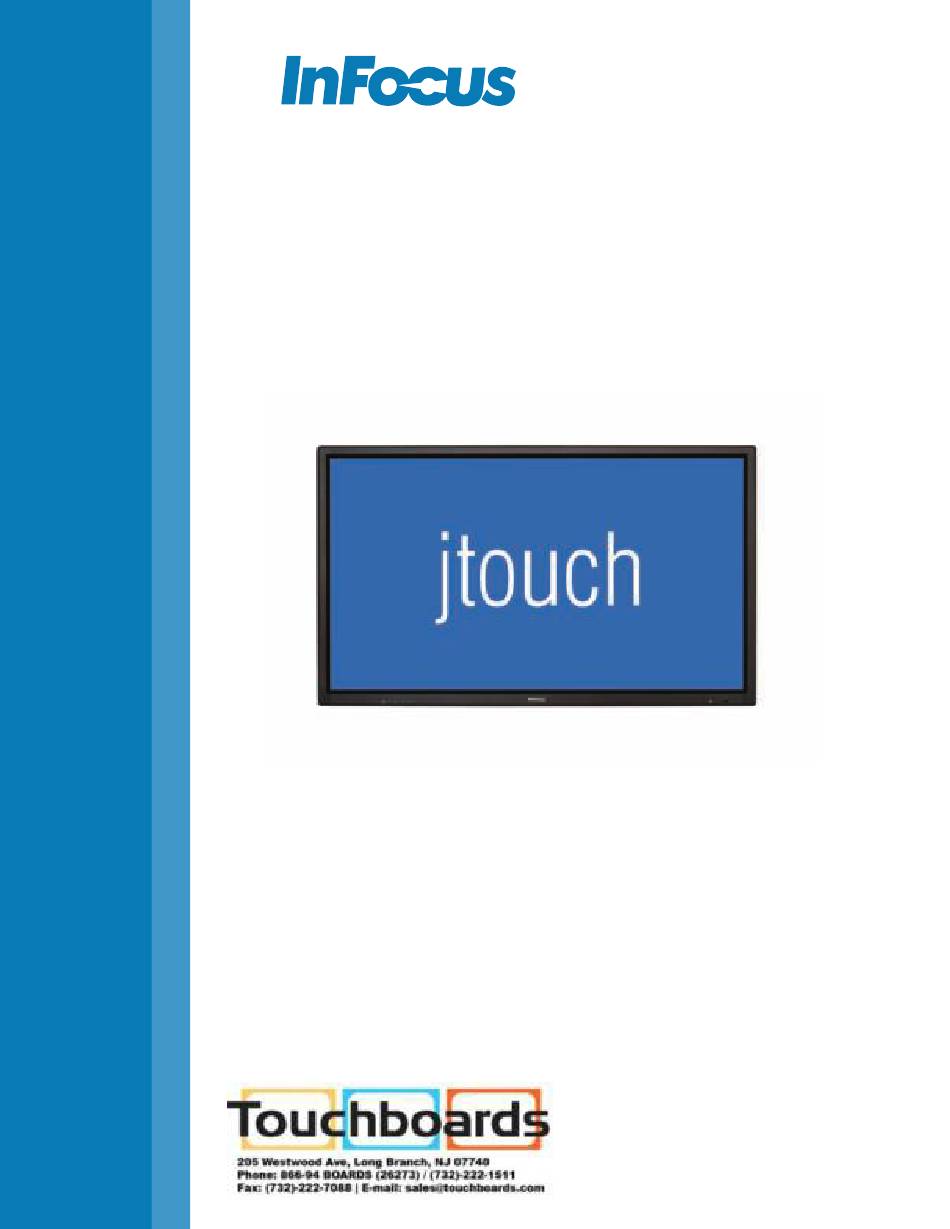

INF8501
Hardware Guide
85吋液晶顯示器
009-1646-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INF8501 and is the answer not in the manual?

Questions and answers

Related Manuals for InFocus INF8501

Summary of Contents for InFocus INF8501

  • Page 1 INF8501 Hardware Guide 85吋液晶顯示器 009-1646-02...

  • Page 2: Table Of Contents

    CONTENTS Declaration of Conformity ..........................................3 Safety Considerations ............................................. 4 安全資訊 ................................................5 What’s Included ..............................................7 Setup ..................................................8 Mounting ..............................................8 Connecting to other devices .........................................9 Connecting AC power..........................................12 External PC touchscreen control setup ................................... 12 Turning the Display On/Off .......................................... 12 Standby behavior ...........................................

  • Page 3: Declaration Of Conformity

    SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference.

  • Page 4: Safety Considerations

    SAFETY CONSIDERATIONS Please read and follow all safety instructions provided below and on the display before connecting the display to a power source. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by the equipment.

  • Page 5: 安全資訊

    Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own display can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...
  • Page 6 • 示器上使用酒精、溶劑或含氨 液體。 操作顯示器附帶的線纜後需要洗手。 • 顯示器遙控器利用電池工作。一些型號在發運時還附有採用電池工作的滑鼠和鍵盤。請確保電池極性 (+/-) 正確對齊。 • 按照當地廢棄物品處理法規處理 廢舊電池。 僅使用符合此產品規格的適當耐火等級牆和支架安裝硬體，並遵守製造商的安裝指示。由額定安裝硬體使用不當或安裝 • 不當造成的任何損壞均不在保 修範圍內。 請向專業維修人員諮詢所有維修資訊。請勿卸下封蓋或封底。自行維修顯示器不僅會對您造成傷害，而且也會使保修失 • 效。 僅使用 InFocus 指定的更換零件。未經授權進行更換可能會造成火災、電擊或人身傷害，並可能使保修失效。 • 將顯示器安裝到牆上時，必須使用 8 枚公制（12 毫米）螺絲。此外，安裝介面應符合北美地區的 UL1678 標準。安裝 • 方法應結實牢固，足以承受顯 示器的重量（參見產品技術規格）。 遵守這些指示有助於確保使用壽命內顯示器的圖像品質。不遵守這些指示可能會影響保修。 • [使用過度恐傷害視力] • 注意事項: • 1. 使用30分鐘請休息10分鐘 •...

  • Page 7: What's Included

    (varies per country) Warranty Quick Start Guide Remote control Documentation Styluses (batteries not included) For additional accessory options, such as stands, feet, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. INF8501 Hardware Guide Page 7...

  • Page 8: Setup

    SETUP Mounting This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet this product's specifications and follow the manufacturer installation instructions. • Only use properly rated wall and stand mounting hardware that meet this product’s specifications and follow the manufacturer installation instructions.

  • Page 9: Connecting To Other Devices

    Available jacks include: USB-B for touch control (2), USB 3.0-A (4), HDMI In (4), DisplayPort (1), VGA (1), Component (1), RS232 (1), PC Audio Line In 3.5mm (1), Audio In 3.5mm, Audio In RCA (1-R/L), and Audio Out RCA (1-R/L). INF8501 Hardware Guide Page 9...
  • Page 10 Connect an HDMI cable from the display to an HDMI external device (such as a computer or HDMI DVD player). TOUCH Connect a Type A to Type B USB cable from the display to an external computer in order to CONTROL use the touchscreen gestures on the display.
  • Page 11 Connect a 3.5mm audio cable to an external device (e.g., iPod player). AUDIO IN2 Connect an RCA L/R audio cable to an external device. AUDIO OUT Connect an RCA L/R audio cable to external stereo speakers. INF8501 Hardware Guide Page 11...

  • Page 12: Connecting Ac Power

    Connecting AC power Connect one end of the AC power cord to the AC In jack on the back of the display. Connect the other end of the AC power cord to an AC outlet. Toggle the power switch to the ON position. Press the power switch.

  • Page 13: Using The Remote

    Do not mix new and old batteries or different types of batteries together. • Replace the batteries as soon as they run out. • Remove batteries from the remote control when storing or not in use for a prolonged period. INF8501 Hardware Guide Page 13...
  • Page 14 Remote buttons Power: Switches the power on or puts the display into Standby. POWER Home: Changes the active source back to the embedded PC. HOME Input: Toggles the Input Source menu on and off, which allows the user to change INPUT sources.

  • Page 15: Using The Keypad

    > button: When the OSD menu is on, this button increases the value of selected OSD items. When the OSD menu is off, this button increases the audio volume. Menu button: Turns the OSD menu on and off. INF8501 Hardware Guide Page 15...

  • Page 16: Osd (On-Screen Display) Menu System

    OSD (ON-SCREEN DISPLAY) MENU SYSTEM The OSD provides the user the ability to control the display display. To access the OSD, press the Menu button on the remote or the keypad located on the right-hand side of the display. Use the up and down arrows on the remote or keypad to scroll through the menu options and press OK to enter the highlighted menu. Use the up and down arrows and OK button to select the item you would like to adjust.

  • Page 17: Picture

    Range: 0-100 for each color. Picture Mode: provides different preset picture modes to choose from. Options include: Standard (default), HighBright, and Soft. Picture Reset: resets all Picture menu items to factory default settings. Options: Yes and No. INF8501 Hardware Guide Page 17...

  • Page 18: Screen

    Screen SCREEN H POSITION V POSITION CLOCK CLOCK PHASE BLANK DIMMING ASPECT RATIO WIDE SCREEN RESET < > Adjust Enter Back Quit H Position: adjusts the horizontal position of the image. Range: 0-100. (Default 50.) V Position: adjusts the vertical position of the image. Range: 0-100. (Default 50.) Clock: adjusts the width of the image (For VGA input only).

  • Page 19: Audio

    Audio Source: selects the audio input source. Options include: HDMI 1, HDMI 2, HDMI 3, DisplayPort (DP), Audio 1, and Audio 2. Audio Reset: resets all Audio menu items to factory default settings. Options: Yes and No. INF8501 Hardware Guide Page 19...

  • Page 20: Pip

    PIP MODE PIP INPUT PIP POSITION TOP-RIGHT PIP SWAP PIP SIZE SMALL PIP AUDIO MAIN PIP RESET < > Adjust Enter Back Quit PIP Mode: enables or disables Picture-in-Picture mode. Options include: Yes and No. PiP Input: selects the source input for the PiP window. Options include: HDMI1, HDMI2, HDMI3, DisplayPort, VGA, Component. PiP Position: moves the PiP window position.

  • Page 21: Configuration 1

    (default), Lightcast, and External. Configuration Reset: resets all Configuration 1 and Configuration 2 menu items to factory default settings. Options: Yes and No. Factory Reset: resets all menu items to factory default settings. Options: Yes and No. INF8501 Hardware Guide Page 21...

  • Page 22: Configuration 2

    Configuration 2 CONFIGURATION 2 OSD TURN OFF FREEZE OSD H POSITION OSD V POSITION OSD ROTATION PORTRAIT MONITOR INFORMATION < > Adjust Enter Back Quit OSD Turn Off: controls how many seconds the OSD menu remains on the screen Range: 5-120 (seconds). (Default: 10) Freeze: When enabled, freezes the image which is currently displayed.

  • Page 23: Advanced Option

    Keypad Control: disables and enables the keypad on the right-hand side of the display. Options include: Lock (keypad is disabled) and Unlock (default; keypad is enabled). DDC/CI: enables and disables DDC/CI communication. Options include: On (default) and Off. Advanced Option Reset: resets all Advanced Option menu items to factory default settings. Options: Yes and No. INF8501 Hardware Guide Page 23...

  • Page 24: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE SOLUTIONS • No power Verify the power cord is properly connected to the power outlet and to the display. • Verify the power switch is ON and that the Power button on the remote or keypad has been turned on (the front LED should be green).
  • Page 25 2)Verify that the power switch on the back of the unit is turned on; 3) Plug another electrical device to the power outlet to verify that the outlet is supplying the proper voltage. For additional troubleshooting support, please contact: InFocus Corporation - Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support...

  • Page 26: Limited Warranty

    If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or...
  • Page 27 (l) if the product is not used under normal operating conditions which are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced.
  • Page 28 InFocus will provide warranty service either (i) at an ASP location, where service is performed at the location, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you prepaid way bills (and if...
  • Page 29 InFocus specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to InFocus. In cases where it is required to return the defective part to InFocus, you must ship the defective part back to InFocus within a defined period of time, normally five (5) business days, and clearly display the Return Material Authorization (RMA#) on the outside of the shipping carton or a similar package affording an equal degree of protection.

  • Page 30: 安全注意事項

    安全注意事項 在將顯示器連接到電源之前，請仔細閱讀並遵守顯示器上提供的下述安全說明。如不遵守安全說明則可能導致火災、觸電或 人身傷害，並可能損壞或 損害對設備所提供的保護。 請妥善保存所有安全說明。 這種顯示器是非常沉重的，應由至少兩個人進行搬動和安裝。不要試圖自行搬動或安裝顯示器，否則可能造成傷害和/或 • 損害。 搬動顯示器時，利用手柄和側板或底板始終牢固地把持住顯示器。不要把持頂板。 • 在搬動顯示器紙箱時，不要傾斜或倒置紙箱。始終將其保持在豎直方向。 • 在移動顯示器前，請斷開所有配件和電纜。 • 如果顯示器安裝在牆上，顯示器與牆壁之間的距離至少保持為 1.98 英寸（5釐米），以提供足夠的通風。 • 請參閱正確的開機和關機程式方面的指南。 • 遵循本手冊和顯示器上的所有警告和注意事項。 • 顯示器的安放位置遠離加熱和冷卻通風孔至少 4 英尺（1.2米）。 • 請勿堵塞通風口。顯示器放在通風良好且不阻礙進氣口和排氣口的地方。 • 不要在諸如散熱器、熱記錄器、火爐或其他發熱設備（包括放大器）等熱源附近安裝或使用顯示器或揚聲器。 • 不要將顯示器放置在陽光直射、潮濕、油膩或灰塵較多的地方，或顯示器可能接觸到雨水、煙霧或蒸汽的地方。 • 顯示器使用的電源線不應該靠近水，例如靠近浴缸、洗臉盆、廚房水槽、游泳池等。 • 不要在靠近水的地方使用顯示器的任何元件，包括揚聲器。警告：為減少火災或觸電的危險，請勿將本設備和該設備的 • 任何元件淋雨或受潮。 請勿摔落顯示器。 • 不要將液體灑在顯示器上。濺落的液體可能損壞顯示器。 •...
  • Page 31 只使用富可視公司指定的更換零部件。未經認可的代用品可能會導致火災、觸電或人身傷害，並可能導致保修失效。 • 在將顯示器安裝到牆上時，必須使用 M8 (12 毫米) 規格的螺栓。此外，安裝介面應符合北美 UL1678 標準。安裝方式 • 應牢固到足以承受顯示器的重量。 請遵照以下說明，以確保顯示器使用壽命期間的圖像品質。不遵守這些說明可能會影響保修。 • INF8501 Hardware Guide Page 31...

  • Page 32: Jtouch 85"顯示器I/O Port 介紹前/後面板

    JTOUCH 85"顯示器I/O PORT 介紹前/後面板 Page 32...
  • Page 33 接收外部裝置的HDMI信號。 HDMI TOUCH 將USB纜線從顯示器連接至外部電腦，以便使用觸控模組。 CONTROL 連接無線鼠標、U盤等其他連接USB Type-A的設備，兼容USB2.0&USB3.0。 USB-A 從顯示到外部硬碟或其他類似的週邊設備連接到 B 型 USB 電纜的 A 型。 接收外部裝置的HDMI信號。 HDMI 1 - 3 接收外部裝置的DisplayPort信號。 DisplayPort 接收來自外部裝置（例如電腦）的類比RGB訊號。 接收來自外部裝置（例如DVD播放器,HDTV裝置或雷射光碟播放器）的色差視訊 COMPONENT (YPbpr)訊號。 INF8501 Hardware Guide Page 33...
  • Page 34 RS232 通過遠程操作控制設備。 PC AUDIO 連接可選模組中的 PC 音訊源行。 LINE IN AUDIO IN1 接收來自外部裝置（例如iPod播放器）所發出的音頻訊號。 AUDIO IN2 接收來自外部裝置（例如DVD播放器）所發出的音頻訊號。 AUDIO OUT 連接到外接式立體聲喇叭。 開啟或關閉顯示器。 功能1：切換屏幕顯示Source功能。2：選取/確認OSD功能表中的選項。 在OSD 功能表中向上捲動瀏覽各個設定和選項。 在OSD 功能表中向下捲動瀏覽各個設定和選項。 在OSD 功能表中向左捲動瀏覽各個設定和選項。 當OSD菜單關閉時，這個按鈕降低音 量。 在OSD 功能表中向右捲動瀏覽各個設定和選項。當OSD菜單關閉時，這個按鈕提高音 量。 開啟或關閉OSD 功能表。 Page 34...
