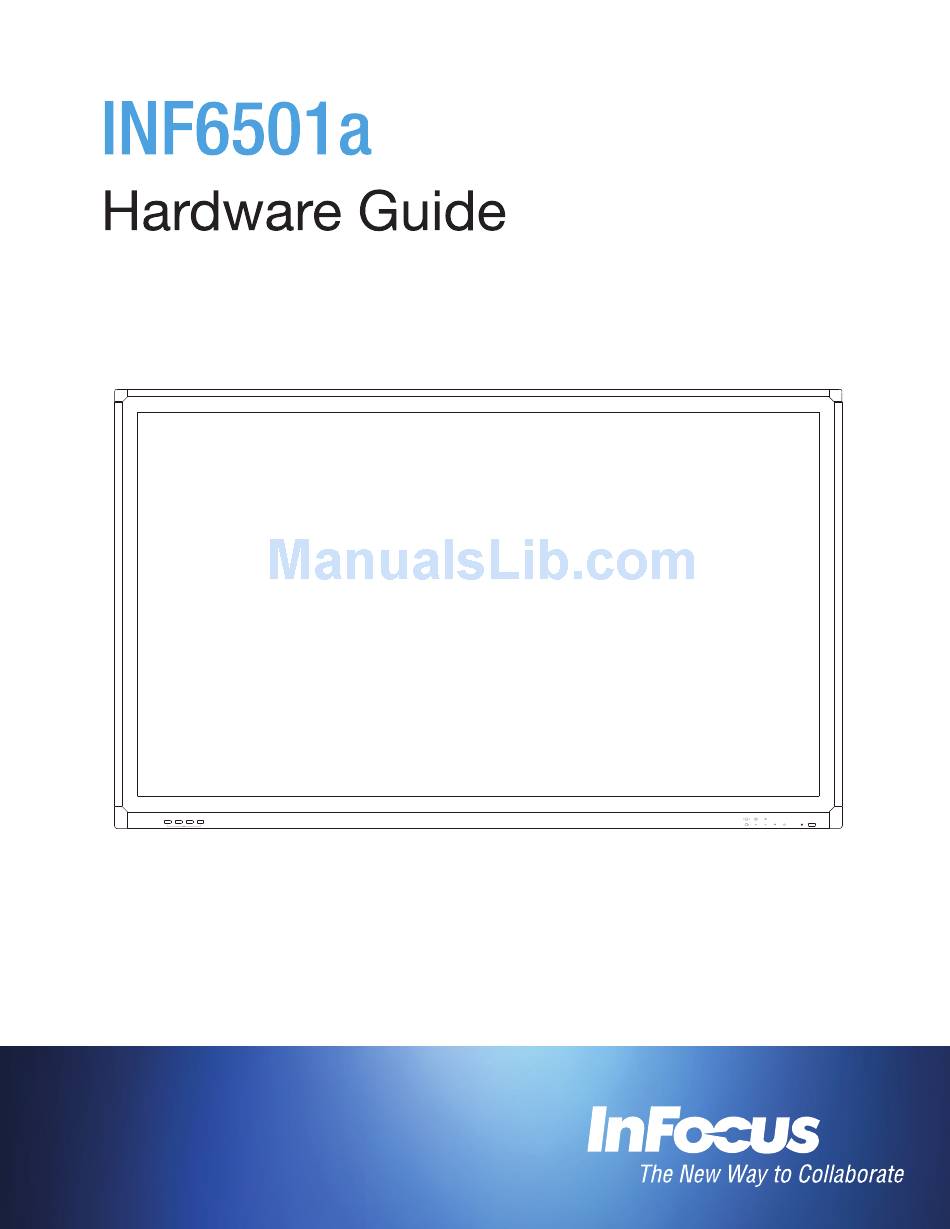

- Page 1 009-1494-00...
-
Page 3: Table Of Contents
Contents Declaration of Conformity ..................................2 Safety Considerations ..................................... 3 What’s Included...................................... 5 Setup ........................................6 Mounting ......................................6 Connect to Other Devices ................................7 Connect AC Power ................................... 8 PC Touchscreen Control Setup ................................. 8 Turn the Monitor On/Off ..................................8 Use the Remote ...................................... -
Page 4: Declaration Of Conformity
SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. -
Page 5: Safety Considerations
Use only the mounting hardware recom- mended by the manufacturer. • When disconnecting the power cord, hold the plug, not the cord. INF6501a Hardware Guide Page 3... - Page 6 Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own monitor can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...
-
Page 7: What's Included
VGA cable (3m) Power cord USB cable (3m) (varies by country) (battery not included) Note: For additional accessory options, such as stands, feet, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. INF6501a Hardware Guide Page 5... -
Page 8: Setup
Setup Mounting This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet this product's specifications and follow the manufacturer installation instructions. • Only use properly rated wall and stand mounting hardware that meet this product’s specifications and follow the manufacturer installation instructions. -
Page 9: Connect To Other Devices
Available jacks include: USB 3.0 Type A (4), USB 3.0 Type B (1 - for PC touchscreen control), Audio In 3.5mm (1), Audio Out 3.5mm (1), HDMI In (1), VGA (1), and DVI (1). INF6501a Hardware Guide Page 7... -
Page 10: Connect Ac Power
Connect AC Power Connect one end of the AC power cord to the AC In jack on the back of the monitor. Connect the other end of the AC power cord to an AC outlet. NOTES: • Your monitor should only be operated from the power source indicated on the label. •... -
Page 11: Use The Remote
Ensure the battery polarity (+/-) is properly aligned. • Replace the battery as soon as it runs out. • Remove battery from the remote control when storing or not in use for a prolonged period. INF6501a Hardware Guide Page 9... - Page 12 The remote has the following buttons: Power: Switches the power on or puts the monitor into Standby. Menu: Turns the OSD menu on and off. Input: Toggles the Input Source menu on and off, which allows the user to change sources.
-
Page 13: Use The Keypad
If the OSD menu is displayed, press to navigate to different submenus. Press to display the OSD menu. If the OSD menu is displayed, press to select the highlighted menu item. Turns the power on and off. INF6501a Hardware Guide Page 11... -
Page 14: Osd (On-Screen Display) Menu System
OSD (On-Screen Display) Menu System The OSD provides the user the ability to control the monitor display. To access the OSD, press the Menu button on the remote or the monitor keypad. Use the arrows on the remote or keypad to scroll through the menu options and press OK to enter the highlighted menu. Use the up and down arrows and OK button to select the item you would like to adjust. -
Page 15: Image Menu
Phase: adjusts the signal frequency of the image. Range: 0-100 (default 50). Input menu Input signal: adjusts the input signal type. Options: VGA, DVI, HDMI. Touch: turns the monitor touch capabilities on and off. Options: On, Off (default On). INF6501a Hardware Guide Page 13... -
Page 16: Option Ii Menu
Option I menu Menu Language: switches the OSD menu language. Options: English and Simplified Chinese (default English). OSD H-Position: adjusts the horizontal position of the OSD menu. Range: 0-100 (default 50). OSD V-Position: adjusts the vertical position of the OSD menu. Range: 0-100 (default 50). OSD Timer: adjusts how many seconds the OSD menu remains on the screen. -
Page 17: Troubleshooting
If playing a video, verify the playback has not been paused and that the video’s audio has not been muted. • An HDMI 1.3 (or higher) source and source device is required to hear audio via the ® HDMI cable. INF6501a Hardware Guide Page 15... - Page 18 • The source signal is out of range. • The monitor is in standby mode. Press the Power button on the remote or keypad. For Additional Troubleshooting Support, please contact: InFocus Corporation Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support Page 16...
-
Page 19: Specifications
Specifications To read the latest product specifications, be sure to visit our support website at www.infocus.com/support, as specifications are subject to change. Size (viewable) 1428.5mm (H) x 803.5mm (V) Dimensions (without stand) 60.2" (W) x 36.4" (H) x 3.3" (D); 1529.18 mm (W) x 924.22 mm (H) x 84.7 mm (D) Weight (without stand) 110.23 lbs / ~50.0 kg... -
Page 20: Limited Warranty
If a hardware defect arises and a valid claim is received within the Warranty Period, at its op- tion and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or refurbished... - Page 21 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced. In addition, LCD burn-in as a result of excessive display of static images on the product is not covered under the terms of this Limited Warranty.
- Page 22 InFocus will provide warranty service either (i) at an ASP location, where service is performed at the loca- tion, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you prepaid way bills (and if you...
- Page 23 InFocus may utilize a doorstep swap process, which involves an InFocus delivery person delivering the replacement product or CSR part to the Customer and picking up the defective product or part at the time of delivery for return to InFocus. Upon receipt of the replacement product or part, the original product or part becomes the property of InFocus and you agree to follow instructions, including arranging the return of original product or part to InFocus in a timely manner.
- Page 24 Page 22...
