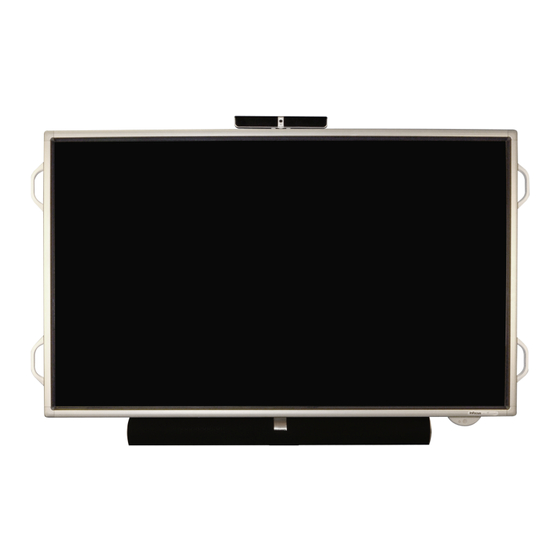

- Page 1 INF7020 Sound Bar User’s Guide MIC Number: HW-SOUNDBAR-3 Regulatory model: VSB200 p/n: 009-1435-00...
-
Page 3: Table Of Contents
Contents Safety Information ....................................2 Mounting the Sound Bar ..................................5 Connecting the Sound Bar to your Source Device ..........................6 Control Panel Overview ..................................7 LED Panel Overview ....................................7 Remote Overview ....................................8 Inserting the Remote Battery ................................8 Operating the Remote .................................. -
Page 4: Safety Information
Safety Information The HD sound bar is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent the HD sound bar from being damaged, the following rules should be observed for its installation, use, and mainte- nance. - Page 5 sound bar, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. • Do not use the HD sound bar if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately.
- Page 6 Page 4...
-
Page 7: Mounting The Sound Bar
Mounting the Sound Bar IMPORTANT: The INF7020 must be mounted to a stand or placed on feet before following these instructions. Review the stand/feet manufactur- er's user documentation for more information. NOTE: Remove the existing feet from the sound bar and set the feet aside. -
Page 8: Connecting The Sound Bar To Your Source Device
Used with an amplified subwoofer input. INPUT 1/2 Analog audio connectors (L/R) used with the INF7020, INF7020 or an alternate source device such as a TV, home theater system, amplifier, receiver, set top box or DVD Player. Connect the analog (RCA L/R) audio cable on the back of the monitor to INPUT 2 on the back of the sound bar. -
Page 9: Control Panel Overview
Control Panel Overview Input Vol - Vol + Mute TVOL TSHD Buttons Description Power Turns the sound bar on and off. Input Toggles between the different sources, Input 1, Input 2 and Optical In. Vol- Decreases the volume. Vol+ Increases the volume. Mute Turns the sound on and off. -
Page 10: Remote Overview
Remote Overview Buttons Description Power Turns the sound bar on and off. Input Toggles between the different sources, Input 1, Input 2 and Optical In. Vol+ Increases the volume. Vol- Decreases the volume. Mute Turns the sound on and off. TVOL Toggles the SRS TruVolume feature on and off. -
Page 11: Maintenance
Maintenance Unplug the sound bar from power. Moisten a soft, dry cloth with water. Lightly wipe the cleaning cloth over the sound bar. Wipe dry with a soft, dry cloth. WARNING: Do not allow liquids to enter the sound bar. Spilled liquid may damage your sound bar. WARNING: Do not attempt to service this product yourself as opening and removing covers may expose you to dangerous voltage and other hazards. -
Page 12: Led Error Codes
If these conditions exist, reduce the volume level for the particular source content being played. For additional troubleshooting support, please contact: InFocus Corporation Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support Page 10... -
Page 13: Specifications
Specifications Model Number HW-SOUNDBAR-3 Speakers 4 x 3" High Efficiency mid/bass transducers / 2 x 3/4" High Performance Aluminum Dome Tweeters Frequency Response 80Hz to 20 kHz Amplifier Integrated Class D @ 15x2 channel w/ .01% THD Frequency Response 35Hz up to 80Hz Inputs SPDIF 1 rear of HD sound bar... -
Page 14: Warranty
Warranty, is defective in material or workmanship during the warranty period, then InFocus, at its option, will REPAIR or REPLACE the Product. InFocus' sole obligation is to supply (or pay for) all labor necessary to repair the Product found to be defective within the... - Page 15 LIMITATION OF LIABILITY IT IS UNDERSTOOD AND AGREED THAT INFOCUS' LIABILITY SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER. Where applicable national or state law prohibits the exclusion or limitation of liability, InFocus excludes or limits its liability to the maximum extent permitted by national law.
