Connection and Control Reference Guide
11

Connecting Up to 4 Cameras to a Switcher

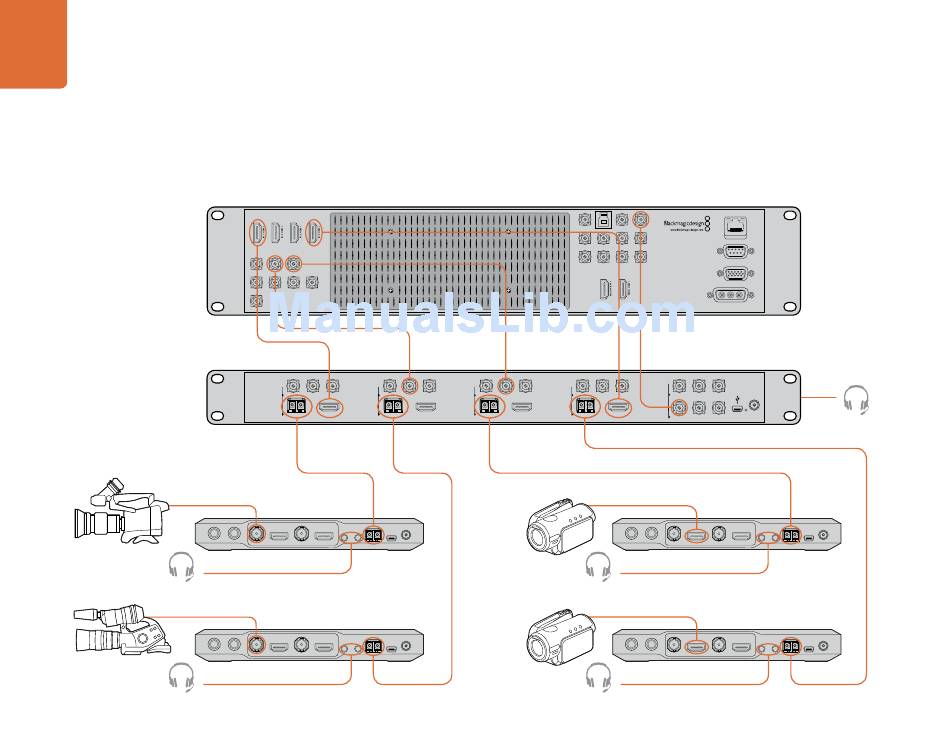

This example shows four cameras connected to a switcher via four ATEM Camera Converters
partnered with an ATEM Studio Converter. The AES/EBU outputs of ATEM Studio Converter can
send camera audio to a mixer and then to the audio input of the switcher.
IN 1 Y / NTSC/PAL IN 5 SDI IN 6 SDI
IN 1 B-Y IN 7 SDI IN 8 SDI REF IN
Note: All SDI, HDMI and component video
connections are SD/HD switchable unless stated.
IN 1 R-Y
ATEM Studio Converter
4 3
SDI IN SDI OUT AES OUT SDI IN SDI OUT AES OUT
OPTICAL OUT/IN HDMI OUT OPTICAL OUT/IN HDMI OUT
PGM PTT
OPTICAL VIDEO
PGM PTT
OPTICAL VIDEO
AUX 1 SDI PROG Y PROG SDI
AUX 1 USB 3.0
AUX 2 SDI PREV SDI PROG B-Y PROG SD-SDI
AUX 3 SDI MULTI-VIEW 1 PROG R-Y PROG NTSC/PAL
2 1
SDI IN SDI OUT AES OUT SDI IN SDI OUT AES OUT
OPTICAL OUT/IN HDMI OUT OPTICAL OUT/IN HDMI OUT
SWITCHER CONTROL
RS-422 SERIAL OUT
AUDIO IN/OUT
12V POWER
SDI/HD-SDI AES/EBU TALKBACK LOOPS
PGM
PROG OUT MIC OUT H/PHONE OUT
PROG IN MIC IN H/PHONE IN +12V POWER
PGM PTT
OPTICAL VIDEO
PGM PTT
OPTICAL VIDEO
