Connection and Control Reference Guide
13

ATEM Camera Converter

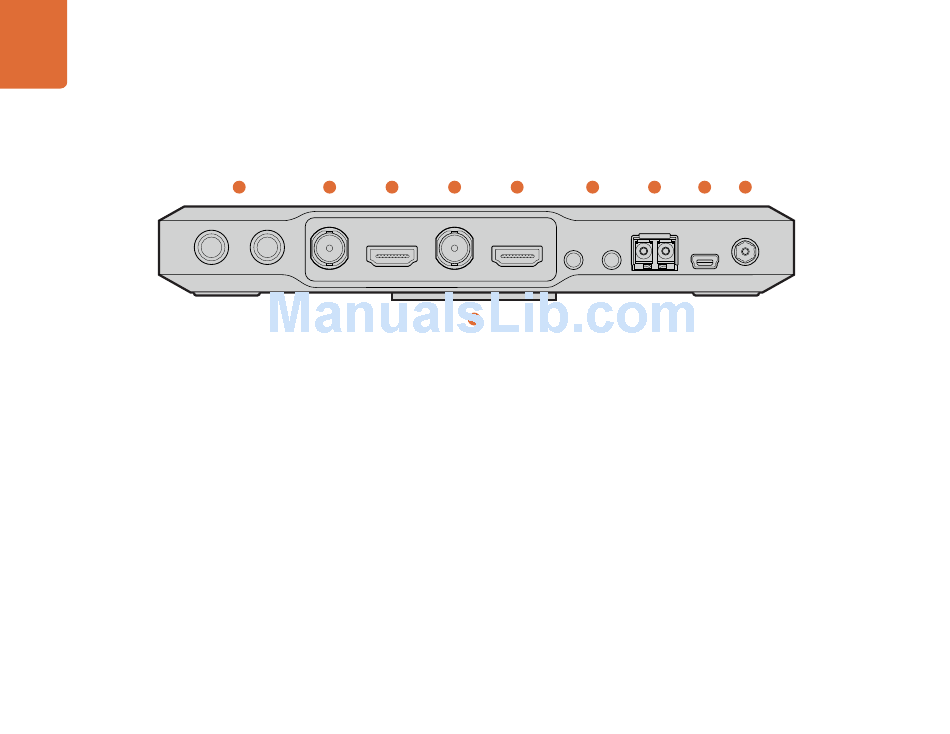

Connectors

1. AUDIO IN
Connect higher quality microphones, wireless microphones
or mixing desks using the stereo balanced 1/4" TRS inputs.
Microphone level audio is supported.
2. SDI IN
Connect your camera to this input if your camera has SDI
output.
3. HDMI IN
Connect your camera to this input if your camera has HDMI
output.
4. SDI OUT
Connect this output to an SDI monitor. Select between
program video and camera video using the PGM button.
A tally border can also be displayed by enabling a software
setting.
PGM
OPTICAL VIDEO
1 2 3
5. HDMI OUT
Connect this output to an HDMI monitor. Select between
program video and camera video using the PGM button.
A tally border can also be displayed by enabling a software
setting.
6. Talkback Headset
The talkback headset connectors are for talkback with the
switcher operator. Connect a regular headset using the
microphone and headphone jacks. An iPhone-compatible
headset can be connected using only the headphone
jack. If both an iPhone-compatible headset and external
microphone are connected at the same time, the iPhone
microphone will mute and the external microphone will be
used instead.
7. OPTICAL OUT/IN
Connect single mode optical fiber cables to the included SFP
module using LC connectors. The other end connects to an
ATEM Studio Converter or another ATEM Camera Converter.
4 5 6
10
8. USB 2.0
Use the USB port for software configuration and updates.
9. POWER +12V
You can use the power adapter supplied with ATEM Camera
Converter or power it from an external camera battery as the
connector supports an input range of 12V to 31V. When a
power source is connected, the built-in internal battery will
also be charged.
Mounts
10. Belt Clip or Camera Mount
For mobility, connect your cables to ATEM Camera Converter
and then snap the integrated belt clip on to your belt.
For stationary shots, ATEM Camera Converter can be
mounted on a tripod arm with either of its standard 3/8" or
1/4" thread inserts. If you want to sit ATEM Camera Converter
on a desk using its rubber feet, undo the two 2.5 hex socket
screws and remove the belt clip.
PTT
7 8 9
