Summary of Contents for Rikon Power Tools 51-200

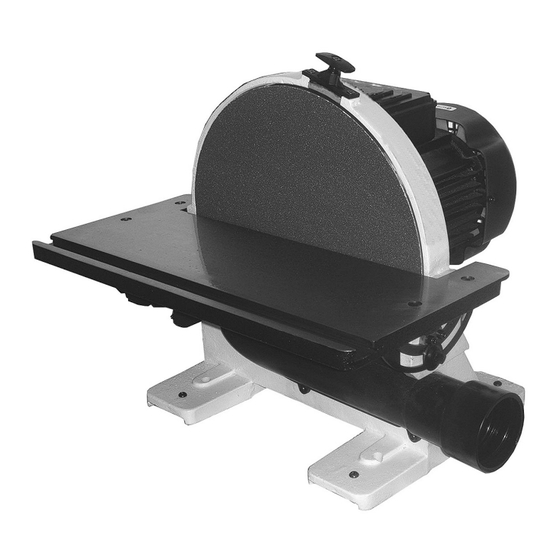

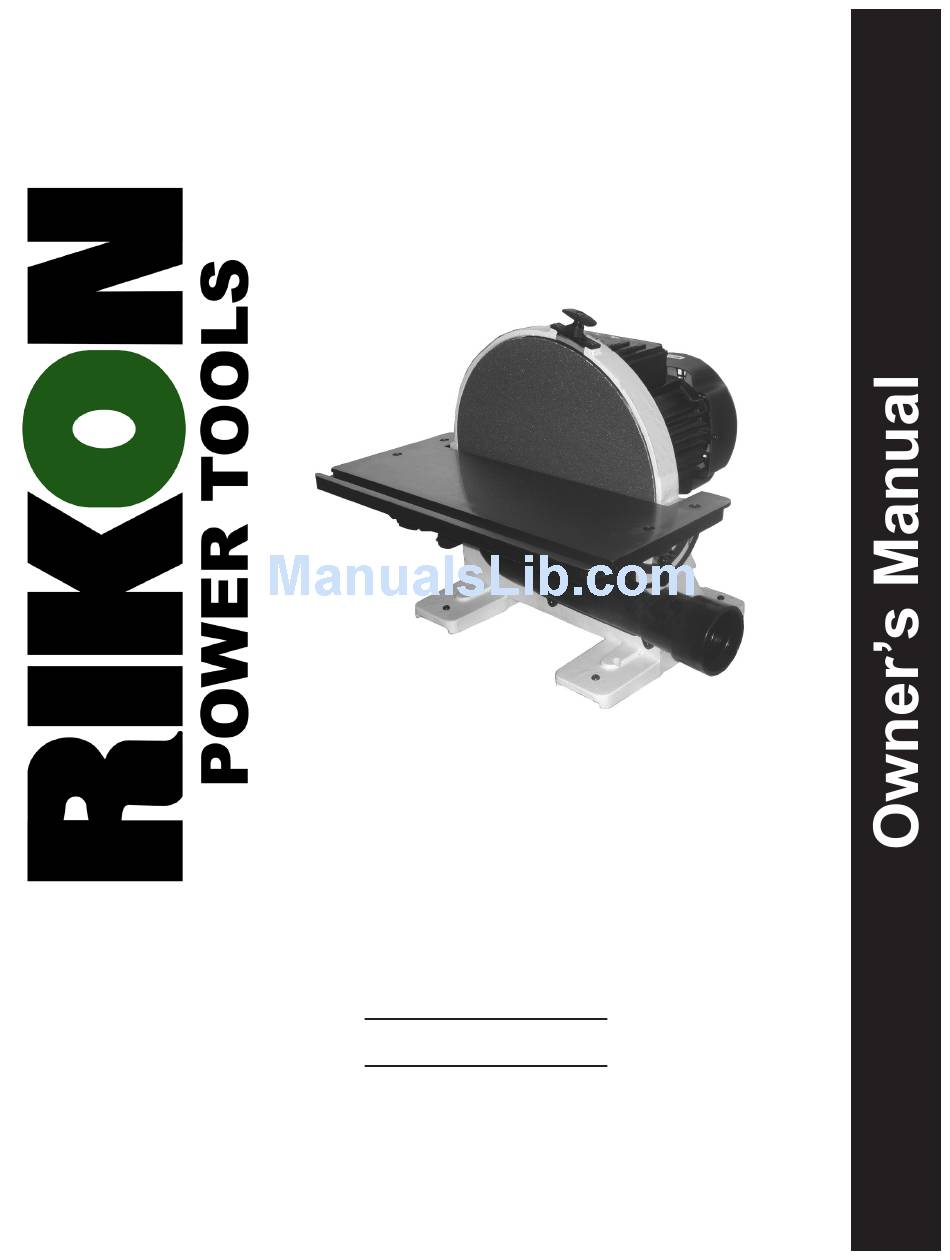

- Page 1 12”Disc Sander Model: 51-200 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com or 877-884-5167 Part # 51-200M1...
-
Page 2: Safety Warnings
Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. -
Page 3: Sander Safety Rules
ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. -
Page 4: Table Of Contents
Table of Contents Safety Warnings.............................2-3 Sander Safety Rules ..........................3 Specifications ............................4 Contents of Package ............................5 Assembly/Adjustments......................6-7 Operation......................7-8 Electrical Requirements ..........................9 Trouble Shooting...............................10 Wiring Diagram............................10 Parts List .............................11 Parts Explosion............................12 Warranty .............................13 Specifications Disc Diameter 12” Table Tilt 45° Down 45° Up Positive Stops -45°, -22.5°, 0°, 22.5°, 45°... -
Page 5: Contents Of Package
Contents of Package When unpacking, check to make sure the following parts are included. If any parts are missing or broken, please call RIKON Power Tools at the number on the cover of this manual as soon as possible. Sander Miter Gauge Disc Brake Two Mounting Screws for Disc Brake... -
Page 6: Assembly/Adjustments
Assembly Securing Sander Base Assembly to Workbench The sander base must be secured before using. Attach a large C-Clamp to each side of the sander and the workbench. Or, permanently mount following the instructions below: 1. Place the sander on the workbench in its final operating location. -
Page 7: Operation
Warning: To avoid jamming the workpiece or fingers between the table and sanding surface, the table edge should be a maximum of 1/16 inch from sanding surface. 3. Always maintain a gap of approximately 1/16” between the table edge, and disc. If adjustment is necessary loosen the four bolts (Fig. - Page 8 Operation Warning: Applying the workpiece to the right side of the disc could cause workpiece to fly up (kickback) and result in an injury. Please take note of the disc rotation (counter clock- wise) and only work on the left side of the disc. (See Fig.
-
Page 9: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 10: Troubleshooting
Troubleshooting Wiring Diagram... -
Page 11: Parts List
Parts List Part No. Description Part No. Description JL63011001 Base JL63012100 Brake Asm. JL63012001 Brake bracket CLP17GB894D1B Retaining ring JL63020003 Washer M4X8GB70D3B Screw JL63022001 Gear shaft JL63012002 Brake spring JL63012003 Brake lever JL63021002 Front trunnion JL63011003 Guide block WRN2D5GB5356B L wrench 2.5 M5X20GB70D1B Bolt WRN4GB5356B... -
Page 12: Parts Explosion
Parts Explosion... -
Page 13: Warranty
Warranty 5-Year Limited Warranty RIKON Power Tools, Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. - Page 14 For more information: 16 Progress Rd. Billerica, MA. 01821 877-884-5167/978-528-5380 techsupport@rikontools.com www.rikontools.com Copyright RIKON Power Tools, Inc. 2007 Printed in China 9/07...
