• Never cut the insulation on the power cable or use it to power any other main unit. If the rated current capacity of
the power cable is exceeded, fire and electric shocks may result.
• The cables should be secured with tape or a similar securing method to prevent any obstructions while driving. If
they get wound or entangled around components such as the steering wheel, shifting lever, or brake pedal,
accidents may result.
• If removing the end of the cable to connect to another cable, be sure to wrap PVC tape or a similar cable insulating
method around the connection to insulate it. If the connection is not insulated, fire or accidents may result.
Tip
• Install and connect all of the peripheral units before connecting them to the main unit.
• Do not remove any of the protective caps (RCA, etc.) unless in use.
• Be sure to wrap the connection cables with tape (PVC tape) to insulate them.
• Be sure to grip the connector's body. Rough tugging may result in broken wires or harnesses.

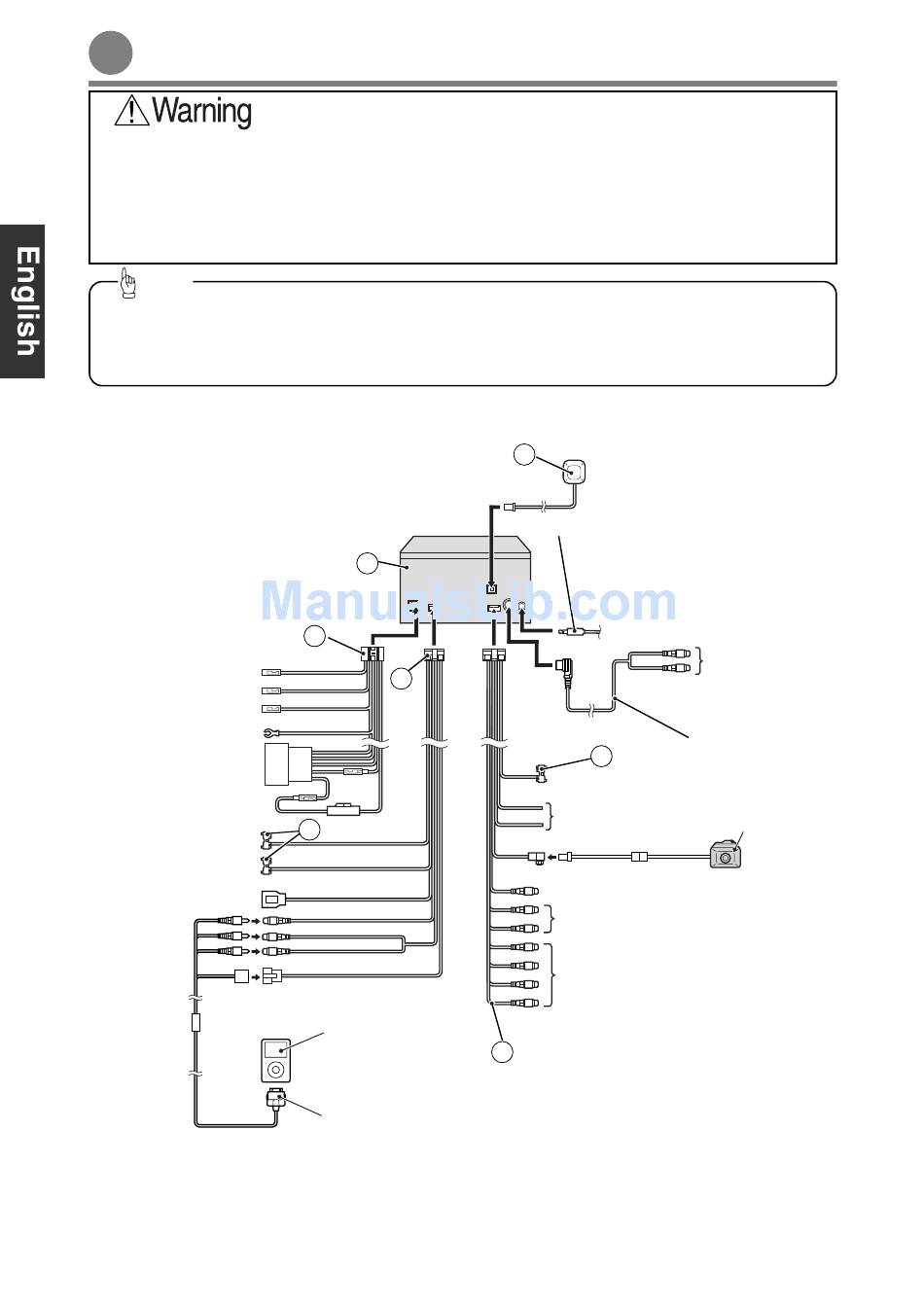

TO POWER ANTENNA RELAY (Supply)
TO TURN-ON LEAD OF EACH UNIT
(Supply)
NOT FOR USE
TO EARTH
TO VEHICLE-SIDE
CONNECTOR
TO VEHICLE SPEED PULSE SIGNAL
TERMINAL (Refer to page 8)
TO PARKING BRAKE SIGNAL
(Refer to page 8)
TO USB DEVICE
1
2
16P
14P
Blue
3
Blue/White
Pink
Black
7
Purple/White
Red/White
iPod
iPC409
(Sold separately)
- 10 -
xample
xample
8
1P
ANTENNA PLUG
13P
16P
7
Green
TO REVERSE SIGNAL
(Refer to page 9)
TO STEERING REMOTE CONTROL
4P
TO EXTERNAL VIDEO EQUIPMENT
(Remove caps when using external video equipment)
TO SUB-WOOFER
(Remove caps when using external sub-woofer)
FRONT
REAR
(Remove caps when using external amplifier)
4
L SIDE (White)
TO THE RCA OUTPUT
CONNECTORS OF
EXTERNAL EQUIPMENT
R SIDE (Red)
(MP3 PLAYER,
MD PLAYER, etc.)
AUX105
(Sold separately)
BEC108
(Sold separately)
