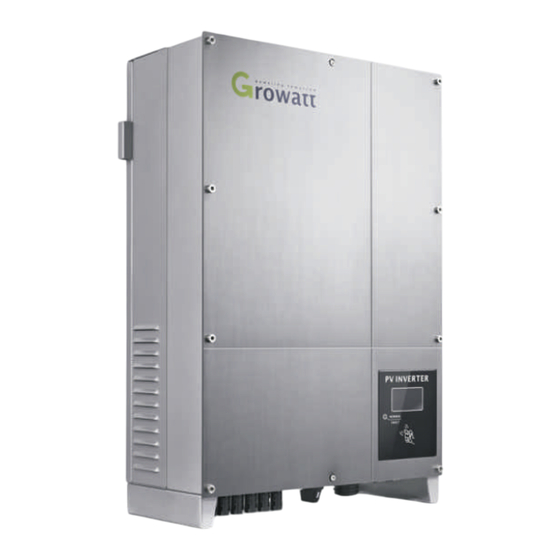

- Page 1 Growatt 10000UE Growatt 12000UE Growatt 18000UE Growatt 20000UE Installation & Operation Manual GROWATT NEW ENERGY CO., LTD No.12 Building, Xicheng Industrial Zone, Bao’an District, Shenzhen, P. R.China + 86 755 2747 1900 + 86 755 2749 1460 service@ginverter.com www.ginverter.com...
-
Page 2: Table Of Contents
Directory Introduction 1.1 Validity 1.2 Target Group 1.3 Product Overview 1.4 Safety Unpacking 2.1 Unpacking and Inspection 2.2 Information of Label Mounting 3.1 Selecting Mounting Location 3.2 Dimensions and Required Clearances 3.3 Mounting the Bracket 3.4 Mounting Inverter Electrical connections 4.1 Wiring AC Output 4.2 Wiring DC Input Commissioning... -
Page 3: Product Overview
This manual is for qualified persons such as PV system installers or electricians. 9.1 General question 9.2 Error Messages displayed on LCD Notes : For possible changes in this manual, Growatt New Energy Co., Ltd accepts no responsibilities to inform the users. SPECIFICATIONS 1.3 Product Overview... - Page 4 Grounding the PV generator When design a PV system contains Growatt UE series inverters or any other Growatt inverters, the system designing software ShineDesign (download from site: Comply with the local requirements for grounding the PV modules and the PV www.ginverter.com) will provide adequate supports.
-
Page 5: Information Of Label
The label contains information as below: 2.1 Unpacking and Inspection The inverter type/model (Model Name); Before opening the packing box of Growatt UE, please note that whether there are The certificates and approvals (Certificate any visible external damages. Number and Logos at the bottom of the Once open the packing box, please check the delivery for completeness and for any label);... - Page 6 Types Height(H) Width(W) Depth(D) Weight/kg The ambient temperature of the inverter should be -25℃~+60℃. 10000UE 12000UE The installation location must be freely and safely to get at all times. 18000UE 20000UE Vertically installation and make sure the connection of inverter must be downwards.
-
Page 7: Mounting Inverter
After the bracket is firmly mounted on the wall, then mount the inverter on the bracket. Rise up the Growatt UE a little higher than the bracket. Considered the weight of Growatt UE, you need handles (items G shown in chapter 2.1) to hang on the inverter. -
Page 8: Cable Requirements
Cable requirements: Model Area(mm²) AWG no. _(mm) 10000UE _2.05 3.332 12000UE _2.05 3.332 18000UE _2.59 5.260 20000UE _2.59 5.260 Notes : The connector must be screwed firmly. Before you operating and wiring the The interface of the connector: AC output, please make sure that the AC breaker has been turned off (open). -
Page 9: Operation Modes
State info (knock) Input info (knock) Output info (knock) E_day Type Max. current power curve 15Adc 10000UE Turn on the AC breaker or close the fuse between inverter and grid, the system will operate normally. 17Adc 12000UE 23Adc 18000UE Under normal operating conditions, the LCD displays ‘Power: xx.xx Kw’... -
Page 10: Lcd Display
LCD. In fault mode the LED turns Fig7.1:Power on Growatt Logo red. After displaying Growatt Logo for 2 seconds, LCD screen will switch to the second interface, display the figure of inverter, company name, inverter’s power rating, etc. Notes: Detailed fault information refers to Chapter 9.2 ERROR messages displayed on... - Page 11 LCD Display Overview...
- Page 12 7.1.2 LCD Display when background light off Interface 3: Output information. See Fig7.6 for reference. This interface displays output information of inverter, including output voltage of each phase, output current of each phase, and output power of each phase. After the power on information is displayed automatically and the background light turns off, the LCD display will switch to the following Interface 1.
- Page 13 During cloudy days or in the area of low light, it’s inconvenient for users to check inverter running information such as status, input data, output data, energy generated. In this case user can light the background and check those data by single knock, a single knock will switch LCD screen to a following interface.
- Page 14 Double knock Single knock Double knock Double knock Double knock Single knock Double knock Single knock Single knock Double knock Fig 7.11 Third level menu interface of working information Explanations of each items in third level menu interface of working information: State information: Table 7.2 Working information sub-items explanation Fig 7.10 Second level menu for each first level menu items...
- Page 15 Second level menu Item explanation Explanation of each items in third level menu interface of working information: Third level items State information: Table 7.3 Historical information sub-items explanation Output Power: xx.xx AC output gross power Second level menu Third level items Item explanation V: xxx.xxx.xxx AC output voltage for each phase...
- Page 16 Explanation of each items in third level menu interface of working information: 7.3.4.1 Set inverter’s COM address State information: When communicating with monitoring software or device, the software or device Table 7.4 Property information may regard inverter’s COM address as communication address (Also may use First level menu Second level items Item explanation...
- Page 17 7.3.4.3 Set inverter time Inverter provides a system clock; user must set the system time after installation, as the historical statistic data for a period were based on the clock. User can set the following time parameters: year, month, day, hour, minute. Set year: Setting->Set time->Set year->Year up or Year down->knock to change year.
- Page 18 It has multi-communication channels and completed data PV Isolation Low Insulation problem. analysis function. Users are able to monitor the status of Growatt inverters in real- time, browse and analysis the history data that has been recorded. Residual I High...
-
Page 19: Trouble Shooting
Pic: 8.3 ShineLogger ShineLogger is an inverter monitoring product of Growatt New Energy Co., Ltd. It can collect and analyze running data of inverter via Bluetooth connection, and display monitoring data on LCD screen; user can also browse data on computer as well. -
Page 20: System Fault
AC F Outrange Utility grid frequency 1.Check firmware version (Please out of permissible refer to LCD display section). You may be advised to contact Growatt in some situation, please provide the range. If firmware version is below G.1.3, following information. contact Growatt. -
Page 21: Inverter Fault
Error: 121 Control board has not Electromagnetic Interference too 2.If problem still exists after Problem with fan No.4. received data from strong, contact Growatt. replacement, contact Growatt. For 8K/10K inverter: Communication board Problem with No. 2 fan. for 5S. Note: If there is problem... -
Page 22: Growatt Factory Warranty
GROWATT , unless such other obligations or liabilities are expressly Continuous full output power temperature range agreed to it in writing signed and approved by GROWATT , GROWATT shall have no responsibility or liability whatsoever for damage or injury to persons or property, or Cooling concept... -
Page 23: Warranty Conditions
Liability The liability of Growatt in respect of any defects in its PV inverters shall be limited to compliance with the obligations as stated in these terms and conditions of warranty. - Page 24 Contact If you have technical problems concerning our products, contact your installer or Growatt. During inquiring, please provide below information: Inverter type Modules information Communication method Serial number of Inverters Error code of Inverters Display of inverters GR - UM - 003 - 00...
