GR-UM-157-A-00

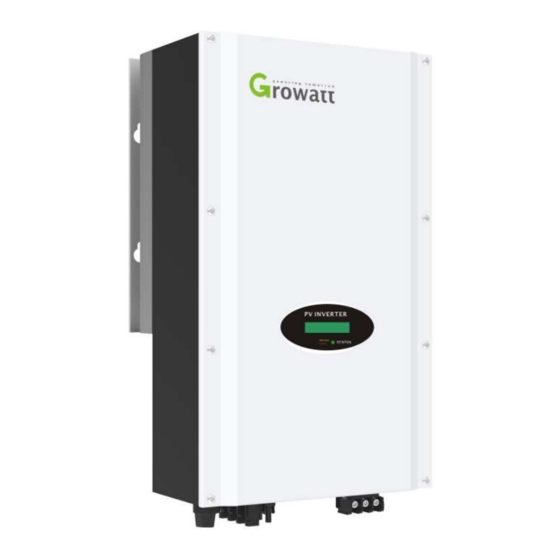

Growatt 8000MTLP-S
Growatt 9000MTLP-S
Growatt 10500MTLP-S
Installation
&
Operation Manual
Advertisement
Table of Contents
Related Manuals for Growatt 8000MTLP-S
Summary of Contents for Growatt 8000MTLP-S
- Page 1 Installation & Growatt New Energy Operation Manual Download Manual Shenzhen Growatt New Energy Technology CO.,LTD No.28 Guangming Road, Shiyan Street, Bao’an District, No.28 Guangming Road, Shiyan Street, Bao’an District, Shenzhen, P.R.China Shenzhen, P.R.China +86 0755 2747 1942 +86 0755 2747 1942 service@ginverter.com...
- Page 2 list Notes on this manual 1.1 Validity 1.2 Target Group 1.3 Additional information 1.4 Symbols in this document 1.5 Glossary 2 Safety 2.1 Intended Use 2.2 Qualification of skilled person 2.3 Safety instruction 2.4 Assembly Warnings 2.5 Electrical Connection Warnings 2.6 Operation Warnings 3 Product description -S Overview...
- Page 3 6 Electrical connection 11 Manufacturer Warranty 6.1 Safety 6.2 Wiring AC Output 6.3 RS485 Connection Decommissioning 6.4 RS232 Connection 12.1 Dismantling the Inverter 6.5 Connecting the second protective 12.2 Packing the Inverter conductor 12.3 Storing the Inverter 6.6 Connecting the PV Array(DC input) 12.4 Disposing of the Inverter 6.7 Using shinetool to set the information of the inverter...
-
Page 4: Notes On This Manual
Alternating Current (AC) procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. -
Page 5: Qualification Of Skilled Person
Nevertheless, improper use may cause lethal hazards for the operator or third parties, or may result in damage to the units The GROWATT MTLP-S Inverters is designed and tested according to international and other property. -
Page 6: Assembly Warnings
Grounding the PV modules： The Growatt MTLP-S is a lighting, consume the energy. The energy left over is fed into the public grid. When the Growatt is not transformerless inverter. That is why it has no galvanic gernerating any energy, e.g., at night, the separation. -
Page 7: Type Label
Symbol on the inverter Ø All operations regarding transport, installation and start-up, including maintenance must be operated by qualified, trained Description Symbol Explanation personnel and in compliance with all prevailing codes and regulations. Ø Anytime the inverter has been disconnected from the power NORMALL Inverter status symbol Indicates inverter operation status... - Page 8 If there are a batch of inverters need to be stored, the maximum layers for original carton is four. Ø After long term storage, local installer or service department of GROWATT should perform a comprehensive test before installation. 3.3 Size and weight...
-
Page 9: Unpacking And Inspection
4 Unpacking and inspection Installation 5 5.1 Safety instructions The inverter is thoroughly tested and inspected strictly before delivery. Our inverters leave our factory in proper electrical and mechanical condition. Special packaging Danger to life due to fire or explosion ensures safe and careful transportation. -
Page 10: Selecting The Installation Location
5.2 Selecting the installation location Direction Min. clearance (cm) Ø This is guidance for installer to choose a suitable installation location, to avoid above potential damages to device and operators. Ø The installation location must be suitable for the inverter's weight and below dimensions for a long period time. -
Page 11: Mounting The Inverter
Mounting the Inverter Ø There must be sufficient clearance between the individual inverters to ensure that 5.3.1 Preparatory work the cooling air of the adjacent inverter is not taken in. Ø If necessary, increase the clearance spaces and make sure there is enough fresh General tools Ø... - Page 12 5.3.2 Fixed the Inverter on a concrete wall Install the mounting frame as the figure shows. Do not drill the screws Using the mounting frame as a template, drill holes as illustrated in follow image: to be flush to the wall. Instead, leave 2 to 4mm exposed. Hole size: 0.31*2.0inch/8*50mm(diameter)*(depth,at least), then insert four explosion WARNING bolts into the holes, make sure the bolts paralleled with the outer surface of the...
-
Page 13: Electrical Connection
3.The wires of the pressed terminal are correspondingly locked to the AC Output terminal of the inverter in sequence, as shown below. We suggest you choice the AC breaker rating current in this table: Growatt 8000MTLP-S 64A/230V Growatt 9000MTLP-S 64A/230V... -
Page 14: Connecting The Second Protective Conductor
6.4 RS232 Connection Wire suggestion conductor cross section and length： 1.RS232 port of inverter is shown below: Model Conductor cross section Max. cable length Growatt 8000MTLP-S 10mm2/8AWG Growatt 9000MTLP-S 10mm2/6AWG Growatt 10500MTLP-S 12mm2/6AWG 6.3 RS485 Connection 1. Unscrew the plastic nut of the RS485 waterproof cover counterclockwise, pull out the one rubber plug, pass the wire through the hole on the waterproof cover, then Then lock the wire to the RS485 terminal, The signals are A、GND and B from left to right,... - Page 15 6.7 Using shinetool to set the information of the inverter Wire step is shown below: 1. The Growatt MTLP-S single-phase inverter has three independent MPPT : A 、B About the software of shinetool and the usage of it please download from the web: and C, the MPPT A has two independent PV array inputs, MPPT B and MPPT C have www.ginverter.com/Download.aspx...
- Page 16 7 Commissioning The second line can change by knock on. Ø Do not disconnect the DC connectors under load. The second line of LCD DANGER Improper operation during the wiring process can cause fatal injury to Cycle display Display time/S Remark operator or unrecoverable damage to the inverter.
-
Page 17: Setting The Lcd Display
7.2.2 Read AC Error record information 2635.1W 10.3Var When the LCD is dark, a knock and double knock will activate LCD. Knock to change Set input page Input 123: the situation, enter to 'AC Error record' page. Double knock to information read state, Display show as follows: 2849.1W 18.3Var... -
Page 18: Start-Up And Shut Down The Inverter
7.3.2 WiFi/RF/GPRS Wireless communication(Optional) 9.2 Cleaning the Inverter WiFi/RF/GPRS communication modules (It is available from Growatt) can be used as an optional monitoring device. They are wireless device used to monitor inverter. They If the inverter is dirty, turn-off the AC breaker and DC switch ,waiting the inverter shut transmits the data collected from the inverter to the server. -
Page 19: Troubleshooting
Some of the (E) codes, Error as indicated in the table below, may indicate a Restart the inverter. If the warning fatel error and require you to contact the supplier or the Growatt to replace a new one. Warning 103 Fail to read EEPROM still exists, please contact Growatt. -
Page 20: Manufacturer Warranty
13 Technical Data 11 Manufacturer Warranty 13.1 Specification Please refer to the warranty card. Model Growatt Growatt Growatt 8000MTLP-S 9000MTLP-S 10500MTLP-S Specifications Input data(DC) Max. recommended PV 10800W 9600W 12000W power(for module STC) 12 Decommissioning Max. DC voltage 600V 140V Start voltage 12.1 Dismantling the Inverter... - Page 21 Name Environmental External WiFi/RF/GPRS IP65 Protection Rating Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a Relative humidity 100% replacement device of equivalent value according to model and age. Features The warranty shall not cover transportation costs in connection with the return of defective modules .
-
Page 22: Compliance Certificates
INMETRO Ø IEC61727/62116 GROWATT can preset special grid parameters for other countries installation locations according to customer requests after evaluation by GROWATT. You can make later modifications yourself by changing software parameters with respective communication products (e.g. shinebus or shineNet ect). To change the grid-relevant parameters, you need a personal access code, if you need it ,please contact with GROWATT. - Page 23 16 Contact If you have technical problems about our products, contact the GROWATT Serviceline. We need the following information in order to provide you with the necessary assistance: Ø Inverter type Ø Serial number of the inverter Ø Event number or display message of the inverter Ø...
