Signal Connections Cont.
2.5

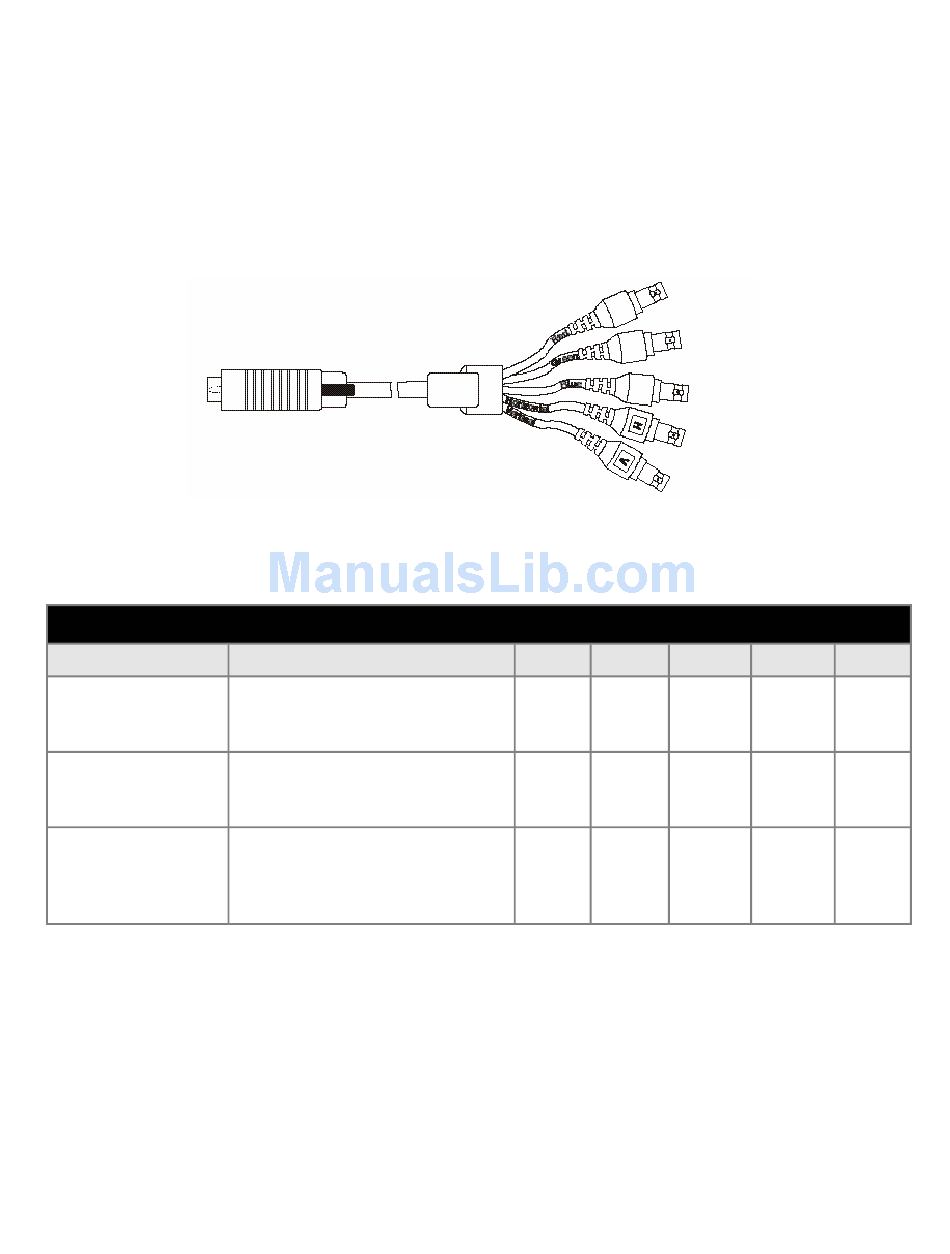

Optional BNC Adaptor Cable
A 5BNC-to-HD15 adapter cable is available. The functions of the cables are described below.
R, B, and G: Red, Green, and Blue input connectors to establish color.
⇒
These are used for RS-343 analog signals.
HS/CS: Separate horizontal/composite sync signal from the video
⇒
source.
VS: Separate vertical sync signal from the video source.
⇒
BNC Adapter Cable
This table describes the signal types you can use with the connectors:
BNC Signal Type
Sync-on-Green
(Not Available)
Composite Sync
(Not available)
Separate Horizontal
and Vertical Sync.
VT064 DiamondVue User Guide
BNC Signal Types
Description
Use the three video connectors.
Horizontal and vertical syncs are
supplied on the green video line.
Use the three video connectors
plus the horizontal sync/
composite sync input
Use the three video connectors
plus the horizontal sync/
composite sync and vertical sync
input.
R G
X X
X X
X X
6
B HS/ CS VS
X
X X
X X X
