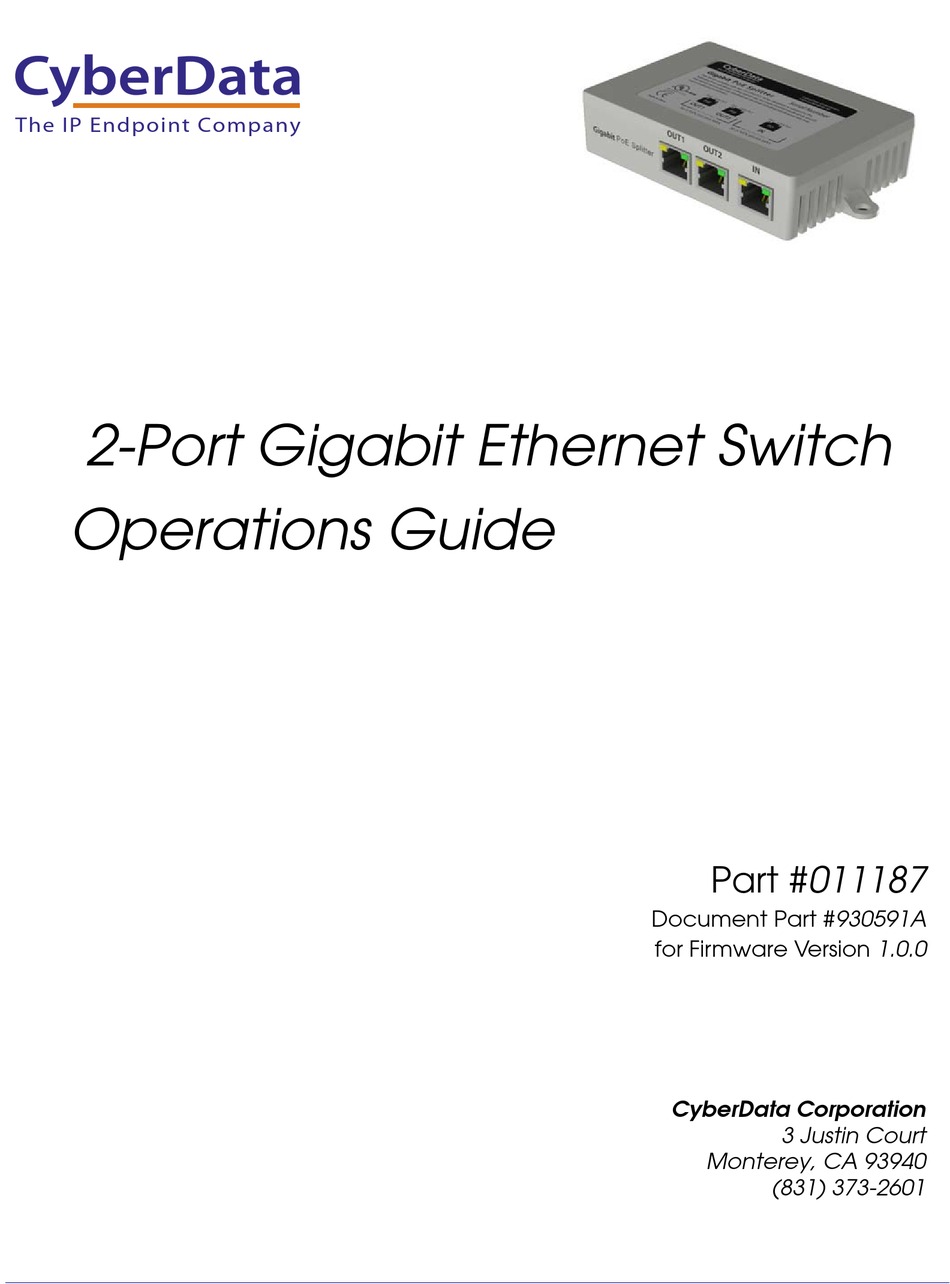

- Page 1 The IP Endpoint Company 2-Port Gigabit Ethernet Switch Operations Guide Part #011187 Document Part #930591A for Firmware Version 1.0.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
- Page 3 Revision Information Revision 930591A, which corresponds to design version 1.0.0, was released on January 30, 2013. Operations Guide 930591A CyberData Corporation...
-
Page 4: Important Safety Instructions
11. Prior to installation, consult local building and electrical code requirements. CyberData Corporation 930591A Operations Guide... - Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 930591A Operations Guide...
-
Page 6: Table Of Contents
7.0 Technical Specifications ................5 Appendix A The Standard RJ-45 Introduction A.1 The Standard Cable, RJ-45 Pin Assignment .......... 7 Appendix B Mounting B.1 Mounting ....................8 Appendix C Typical Installation C.1 Typical Installation ................... 9 Operations Guide 930472C CyberData Corporation... -
Page 7: Installation
Before you start installing your equipment, verify that the package contains the following: • The Gigabit POE Repeater Switch • This User Manual Please notify your supplier immediately if any of the previously items are missing or damaged. Operations Guide 930591A CyberData Corporation... -
Page 8: Installation
The switch is powered by your existing central POE Switch. No additional power supply is required. Simply plug your cable from your central POE switch into the PD port of the switch and your switch will power on for use. Figure 1-1. Front Panel of the Switch Operations Guide 930591A CyberData Corporation... -
Page 9: Powering On The Switch
PD device is not connected or no power is being drawn from the switch. Link/Act (Green) A valid link is established. Blink Traffic is present on port. No link has been established. 6.0 Network Connection Figure 1-3. Front Panel of Switch Operations Guide 930591A CyberData Corporation... - Page 10 Connect the switch from the PD port to your central Gigabit PoE Switch. • Connect your IP Phone from the PSE port on the switch. • Connect your computer or other networking device to any of the PSE2 ports on the switch. Operations Guide 930591A CyberData Corporation...
-
Page 11: Technical Specifications
MAC Address Learning Automatically learning, automatically Update 8K Frame Filtering and Forward 148800pps Rate Operating Temperature: 0 ℃ ~40 ℃ Storage Temperature: -10 ℃ ~70 ℃ Environment Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing Operations Guide 930591A CyberData Corporation... -
Page 12: Appendix A The Standard Rj-45 Introduction
Figure A-1. Standard RJ-45 Jack / Connector Table A-1. RJ-45 Connector Pin Definitions Pin Number Signal _TX1 +(PoE Power+) _TX1 - (PoE Power+) _RX1 + (PoE Power-) _TX2 + _TX2 -- _RX1 - (PoE Power-) _RX2 + _RX2 - Operations Guide 930591A CyberData Corporation... -
Page 13: The Standard Cable, Rj-45 Pin Assignment
Figure A-2. Straight cable for the switch (uplink MDI-II port) to switch/Hub or other devices connection. Figure A-3. Crossover cable for switch (MDI-X port) to switch/hub or other network devices (MDI-X port) connection. Operations Guide 930591A CyberData Corporation... -
Page 14: Appendix B Mounting
2-Port Gigabit Ethernet Switch. Figure B-1. Mounting Mounting Option: 1. Mounting Screw Pre-drill two 1/8" holes Use supplied screws 2. Adhesive Peel off adhesive backing and attach to desk Operations Guide 930591A CyberData Corporation... -
Page 15: Appendix C Typical Installation
Appendix C: Typical Installation C.1 Typical Installation Figure C-1 shows a typical installation setup for the 2-Port Gigabit Ethernet Switch. Figure C-1. Typical Installation PoE Power for Phone Non-PoE 802.3af or 802.3at Operations Guide 930591A CyberData Corporation...
