Electric Pressure Washer
S2000
039-8560-8
OWnEr'S Manual
If you have any questions or comments, visit our website at www.simoniz.ca or call
our toll free hotline 1-866-4SIMONIZ (1-866-474-6664).
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE
OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN
IT FOR FUTURE REFERENCE. IF YOU MUST STORE YOUR PRESSURE WASHER
IN A PLACE WHERE THE TEMPERATURE IS BELOW 5ºC, YOU MUST APPLY
WINTERIZING PROCEDURE TO PROTECT IT. FAILURE TO WINTERIZE THE UNIT MAY
PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY.
S
039-8560-8
02-
-
0
ku
verSion xe
manual
v
Advertisement
Table of Contents
Related Manuals for Simoniz S2000
Summary of Contents for Simoniz S2000

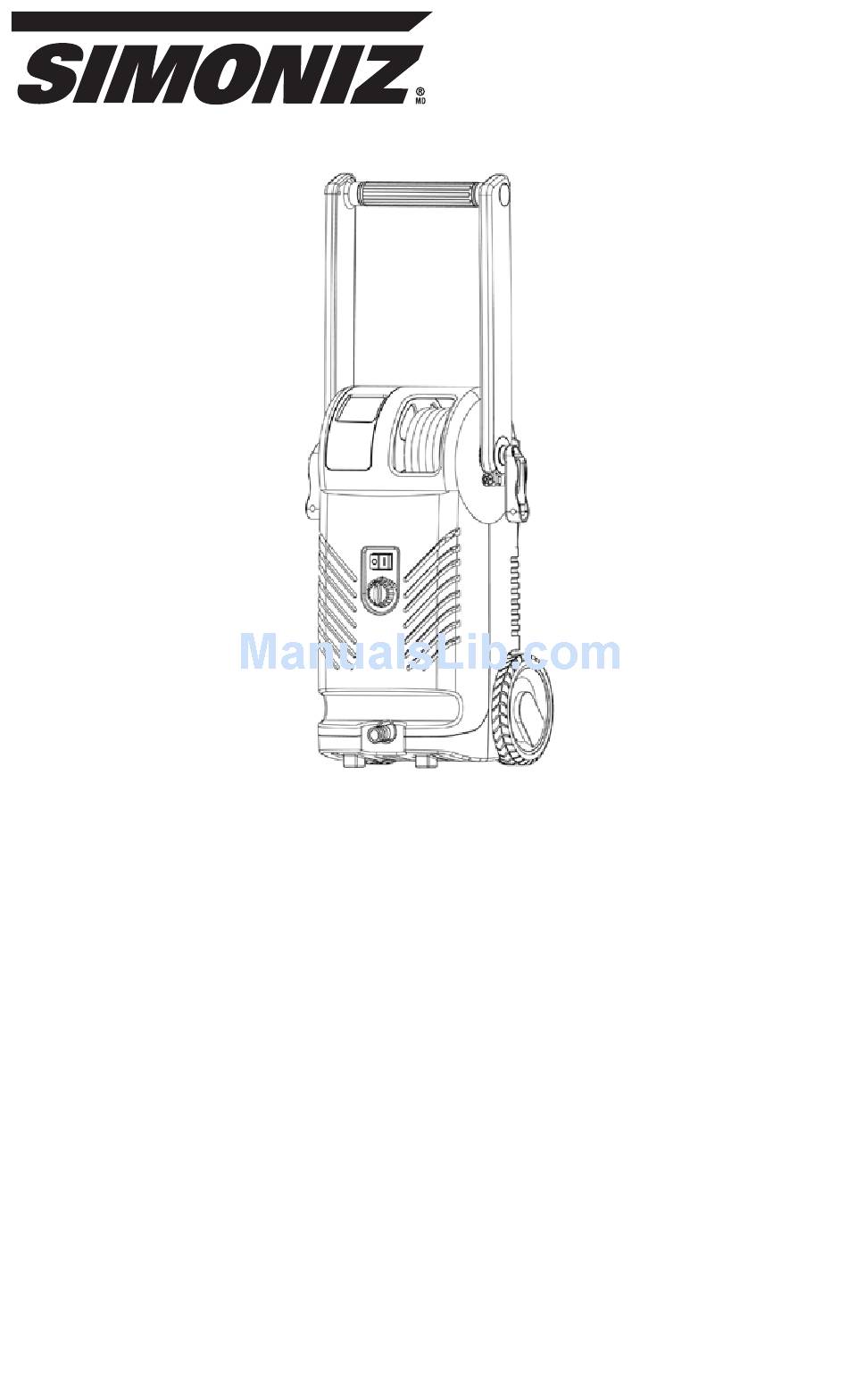

- Page 1 S2000 039-8560-8 OWnEr’S Manual If you have any questions or comments, visit our website at www.simoniz.ca or call our toll free hotline 1-866-4SIMONIZ (1-866-474-6664). PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Warranty is void if the equipment is used for commercial, rental or industrial purposes. TECHNICAL SPECIFICATIONS If you have more questions, visit our website (www.simoniz.ca), or call 1-866-4SIMONIZ (1-866-474-6664). Pressure Washer Specifications... -
Page 3: Important Precautions - Read First
IMPORTANT PRECAUTIONS – READ FIRST IMPORTANT PRECAUTIONS – READ FIRST Warnings WARNING - Risk of Injury Do Not Direct Discharge Stream at Persons. When using this product, basic precautions should always be followed: • High-pressure jet can be dangerous if misused. • Read all the instructions before using the product. • The jet must not be directed at persons, animals, electrical devices, or the unit itself. • Water spray must never be directed toward any electric wiring, devices or directly toward the pressure washer machine itself, or fatal electric shock may occur. WARNING - Risk of Explosion • To reduce the risk of injury, do not operate the machine near children. -
Page 4: Safety Features And Electrical Power Information
SAFETY FEATURES & ELECTRICAL POWER INFORMATION PARTS AND DIAGRAM LIST The pressure washer is equipped with a stop device that will sense when the trigger on the gun is released. It will open the power circuit to the motor, and cause the pressure washer motor to stop. -
Page 5: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS Surface Preparation Before starting any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as Recommendation for toys or outdoor furniture. - Page 6 ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS Completely unwind power cord and plug the unit into an outlet. Attach quick-connect coupling to garden hose (hand tighten only) and connect to inlet adapter. Press the ON Button. Attach garden hose to water supply Make sure the ON/OFF switch is on the and turn water on.
-
Page 7: Working With Detergents
ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS WORKING WITH DETERGENTS Allow detergent to remain on the surface for a short time before rinsing. Do not allow Working with detergent ensures a quick soaking of the dirt, and allows the high-pressure detergent to dry on surface. -
Page 8: Winterizing And Long-Term Storage
OPERATING INSTRUCTIONS WINTERIZING AND LONG-TERM STORAGE Optimum Winterizing Procedure CAUTION Winterizing your pressure washer will help protect and prolong its life. We strongly Failure to clean properly will cause the detergent injection system to become recommend you follow the below steps using Pressure Washer Antifreeze (039-8602-0). clogged and inoperable. This will keep the internal parts lubricated, protected from rust, and prevents the pump from freezing. -
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE TROUBLESHOOTING Connections Disconnect the machine from the power source before making any repairs. Connections on pressure washer hoses, gun and spray wand should be cleaned regularly and lubricated with non-water soluble grease. Symptom Cause Solution Motor will not start. On/Off switch is in the Turn switch to the “ON”... -
Page 10: Troubleshooting
IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT by squeezing trigger gun WWW.SIMONIZ.CA OR CALL CUSTOMER SERVICE AT 1-866-4SIMONIZ (1-866-474-6664) FOR HELP . until a steady flow of water Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 emerges through the nozzle.
Need help?
Do you have a question about the S2000 and is the answer not in the manual?
Questions and answers
How to rotate nozzle to s different setting of spray? Seems stuck to the point of breaking clockwise or counterclockwise.
To adjust the spray nozzle on a Simoniz S2000 without damaging it:
1. Rotate the nozzle at the end of the multi-adjustable spray wand to change the spray pattern. You can adjust it from a 0º pencil stream to a 40º fan spray.
2. Use the markings on the nozzle to select the desired spray pattern.
3. For low pressure, push the nozzle toward the end of the wand.
4. For high pressure, pull back the nozzle.
Avoid forcing the nozzle or using excessive pressure to prevent damage.
This answer is automatically generated
Do you need to change oil in the pump periodically?
No, the Simoniz S2000 pump is maintenance-free and requires no oil.
This answer is automatically generated
The pressure pump won’t cut in even when the water is turned on and pump is plugged into emectricity
