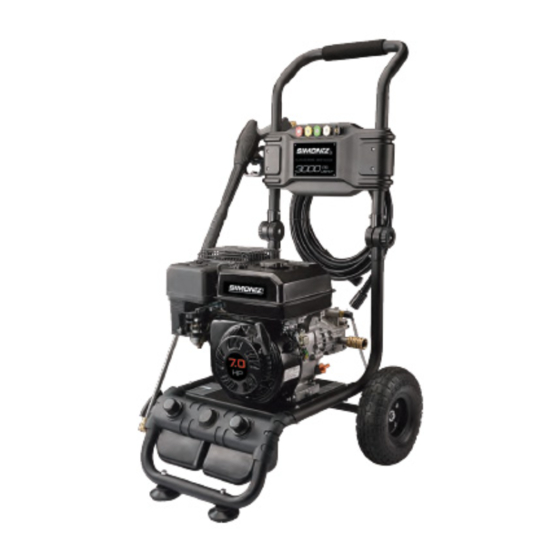

Gas pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

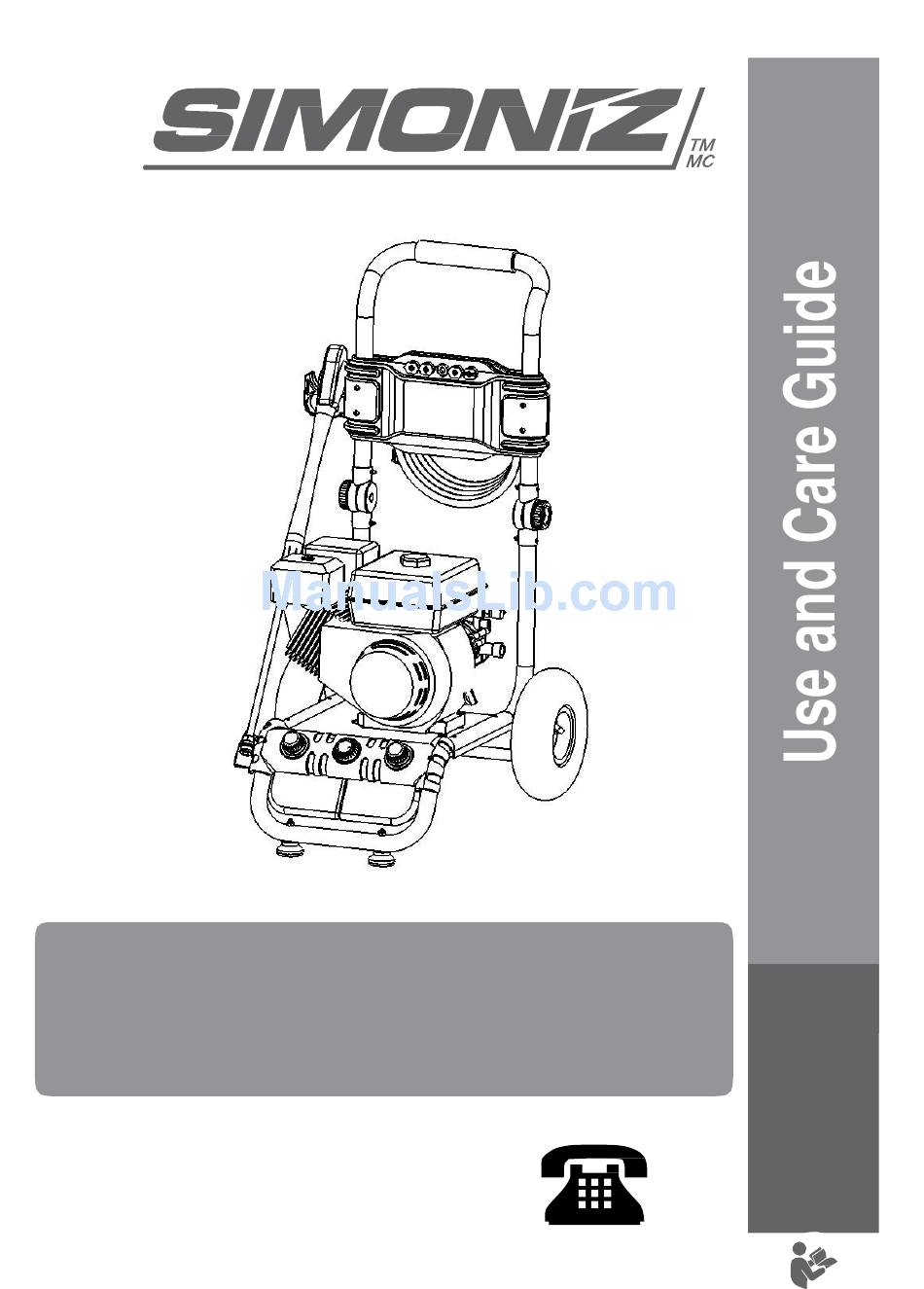

GAS Pressure Washer
039-8568-0
Congratulations on the purchase of your new pressure
washer. In order to ensure you have the best possible
experience please read through the following instructions.
If you require any help please contact the customer ser-
vice department at:
1-866-4SIMONIZ
(1-866-474-6664)
Contact us for assistance, we're here to help.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 039-8568-0 and is the answer not in the manual?

Questions and answers

Related Manuals for Simoniz 039-8568-0

Summary of Contents for Simoniz 039-8568-0

  • Page 1 GAS Pressure Washer 039-8568-0 Congratulations on the purchase of your new pressure washer. In order to ensure you have the best possible experience please read through the following instructions. If you require any help please contact the customer ser- vice department at:...

  • Page 2: Table Of Contents

    Table of Contents 1. Safety Advice......................3 1.1 Definitions......................3 1.2 Safety Warnings....................3 1.3 Intended Application..................7 2. Scope of Delivery....................8 3. Parts List.......................10 4. Assembly Instructions..................12 5. Engine Operation....................14 5.1 Adding/Checking Oil..................14 5.2 Adding Fuel.....................14 5.3 Checking Air Filter...................15 5.4 Starting Engine....................15 5.5 Stopping Engine....................15 6.

  • Page 3: Safety Advice

    Safety Advice 1. S AFETY DVICE TOXIC GASES IMPORTANT, RETAIN FOR FU- Alerts against possible toxic gases which can be TURE REFERENCE AND harmful to your health or deadly if you are exposed to them. READ CAREFULLY! Do not attempt to install or operate this product FLAMMABLE AND COMBUSTIBLE MA- until you have read the safety instructions in this TERIALS...

  • Page 4: Safety Advice

    Safety Advice 1.2 Safety Warnings DANGER–WORK AREA SAFETY AND WARNING–PERSONAL SAFETY EXHAUST FUMES • Stay alert, watch what you are doing, and use • Keep work area clean and well lit. Cluttered and dark common sense when operating a pressure washer. areas incite accidents.
  • Page 5 Safety Advice 1.2 Safety Warnings FLAMMABLE AND POISONOUS MATE- CAUTION–ENGINE SAFETY RIALS • Certain components in this product and its related • Gasoline is highly flammable and its vapours can accessories contain chemicals which are known to explode if ignited. Take precautions when using fuel cause cancer, birth defects, or other reproductive to reduce the chance of serious personal injury.
  • Page 6 Safety Advice 1.2 Safety Warnings CAUTION–SPECIFIC SAFETY ADVICE • • This product is capable of producing high pressure CAUTION–SPECIFIC SAFETY ADVICE as rated in the Technical Specifications. To avoid • Avoid dangerous conditions. Always operate this rupture and injury, do not operate this product with product on dry, solid and level ground.

  • Page 7: Intended Application

    This equipment was not designed for industrial use. Please refer to the icons below for suggested applica- tions. For questions regarding other uses, please refer to our website at www. simoniz.ca or call us at IMPORTANT–SAFETY FEATURES 1-866-4SIMONIZ (1-866-474-6664). • • Thermal Relief Valve: Protects the pump from overheating in case the nozzle gets clogged.

  • Page 8: Scope Of Delivery

    Scope of Delivery 2. S COPE OF ELIVERY Ref. Description Qty. Visual Main Frame Wheel with Axle Handle & Panel with 5 nozzles attached Spray Gun with Metal Wand High-Pressure Hose (30ft) Bolt Square Neck Bolt Folding Spring Gun Holder Hose Hook...
  • Page 9 Scope of Delivery 2. S COPE OF ELIVERY Ref. Description Qty. Visual Ref. Description Qty. Visual Water Inlet Filter Spray Tip Cleaner Spark Plug Wrench Spray Tip Cleaner Screwdriver Spark Plug Wrench Pump Breather Screwdriver Spare O-Rings Pump Breather (2 for high pressure hose, 1 for quick-connector) Spare O-Rings Oil funnel (2 for high pressure hose, 1 for quick-connector)

  • Page 10: Parts List

    Parts List Parts List 3. P ARTS 3. P ARTS...
  • Page 11 Parts List Parts List 3. P ARTS 3. P ARTS Ref. Description Ref. Description Spray Nozzles (x5) Engine I/O Switch Trigger Safety Lock Start Cord Handle Spray Gun with Wand Detergent Tank Caps Muffler Detergent Dial Air Filter Pressure Hose(15 meters) Throttle Lever Fast-Slow Pump Fresh Water Inlet 3/4”...

  • Page 12: Assembly Instructions

    Assembly Instruction Assembly Instruction 4. A SSEMBLY NSTRUCTIONS Letters refer to Scope of Delivery diagrams on pages 8 and 9. 4. A SSEMBLY NSTRUCTIONS Letters refer to Scope of Delivery diagrams on pages 8 and 9. Lift the main frame (A) with one hand and at- tach one of the wheels (B) by pressing the wheel’s pin and inserting the wheel shaft into the main frame (A).
  • Page 13 Assembly Instruction 4. A SSEMBLY NSTRUCTIONS Assembly Instruction 4. A SSEMBLY NSTRUCTIONS Insert hose hook (J) to the groove of handle assembly(C) until the end as per instruction. Rotate handle assembly(C) to the upright di- rection. Push the spherical face of square neck bolt (G) by hand and secure the bolt (F) by the other hand.
  • Page 14 Assembly Instruction Assembly Instruction 4. A SSEMBLY NSTRUCTIONS 4. A SSEMBLY NSTRUCTIONS Assemble the spray gun with the metal wand (3). Pull back the rubber piece to expose the threaded fitting. Then, screw the two pieces together and move the rubber piece back. Attach one end of the pressure hose (16) to the spray gun (3) .Take down the air shield on the pump water outlet (22), connect the quick...

  • Page 15: Engine Operation

    Engine Operation 5. E Engine Operation NGINE PERATION 5.1 Adding/Checking Oil 5.2 Adding Fuel 5. E NGINE PERATION IMPORTANT WARNING 5.1 Adding/Checking Oil 5.2 Adding Fuel • • • Make sure there is enough fuel in the fuel tank Oil has been drained for shipping. Failure to fill en- gine with oil before starting engine will result in per- fore operating the pressure washer.

  • Page 16: Starting Engine

    If you have problems starting the pressure washer, housing. 3. Move the fuel valve (8) to ON position. call the Simoniz toll-free number at 1-866-4SIMONIZ 4. Move the choke lever (7) to CLOSE position 5.3 Stopping Engine (1-866-474-6664) and one of our customer service CAUTION when cold-starting.

  • Page 17: Operating Instructions

    Operation Instructions 6. O Operation Instructions PERATION NSTRUCTIONS 6.1 Using Spray Nozzle 6.3 Adjusting Water Pressure 6. O PERATION NSTRUCTIONS This pressure washer comes with 5 different The water pressure can be adjusted using the nozzles (1) that can be installed on the stain- throttle lever (6).

  • Page 18: Cleaning With Detergents

    Follow the detergent manufacturer’ s directions or call 6.6 Shutting Down and Cleaning Up the Simoniz toll-free number at 1-866-4SIMONIZ WARNING (1-866-474-6664) if you have any questions or con- 1. Skip step two if you are not using detergent.

  • Page 19: Cleaning And Maintenance

    Cleaning and Maintenance 7. C Cleaning and Maintenance LEANING AND AINTENANCE Inspecting, Replacing or Cleaning the Spark Plug WARNING 7. C LEANING AND AINTENANCE The spark plug should be checked every 100 DO NOT operate this pressure washer without the hours of operation or every 6 months.

  • Page 20: Cleaning The Spray Tips

    Cleaning and Maintenance Cleaning and Maintenance 7. C LEANING AND AINTENANCE 7.4 Storing 3. Check the gap with a wire gauge. If neces- 7. C LEANING AND AINTENANCE sary, reset the gap to 0.7-0.8 mm. Install and Store idle product out of the reach of children tighten the spark plug to the recommended 7.4 Storing and do not allow persons unfamiliar with the...

  • Page 21: Winterizing Procedures

    Cleaning and Maintenance/Technical Specifications Cleaning and Maintenance/Technical Specifications 7. C LEANING AND AINTENANCE 7. C IMPORTANT LEANING AND AINTENANCE • If the pressure washer is to be stored with gasoline in the fuel tank and carburetor, it is important to re- duce the hazard of gasoline vapor ignition.
  • Page 22 NOTE: If your unit still is not functioning properly once you have used this guide please call the 9. T ROUBLESHOOTING SIMONIZ toll-free service number at 1-866-4SIMONIZ (1-866-474-6664). Please do NOT bring the unit back to the store until you have called this number. PROBLEM...

  • Page 23: Troubleshooting

    Troubleshooting Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Nozzle tip not attached Attach required nozzle tip Turn on faucet. Ensure there are Water supply faucet closed no kinks or blockage in hose Ensure faucet is fully opened. Water supply pressure is Check to make sure water supply is a minimum 30 psi, 4 Clean the water filter.
  • Page 24 pressure washer 9. T ROUBLESHOOTING 9. T ROUBLESHOOTING...

  • Page 25: Limited Warranty

    The warranty is void if the equipment is used for commercial, rental, or industrial purposes. If you have further questions, please visit our website (www.simoniz.ca) or call 1-866-4SIMONIZ (1-866-474-6664).

  • Page 26: Explosion View

    Explosion View 11. E XPLOSION Explosion View 11. E XPLOSION...
  • Page 27 Explosion View 11. E XPLOSION Explosion View Ref. Description Qty. Ref. Description Qty. Ref. Description Qty. Wire Sleeve Handle Foam 导线套 M6×40 Handle GB/T818-2000 M6×40 Detergent Tank (B) ST4×25 YG3.005.323 Detergent Tank (B) 35-1 Spring Lock Back Panel 35-1 YG3.002.186 Spring Lock 35-2 Injection Hose(short)
  • Page 28 Explosion View 11. E XPLOSION Explosion View Ref. Description Qty. 11. E XPLOSION 2-58 15° Nozzle (yellow) 3-58 25° Nozzle (green) 4-58 40° Nozzle (white) 5-58 Detergent Nozzle (black) Nozzle Grommet 4#B Gun 4#B Wand...
