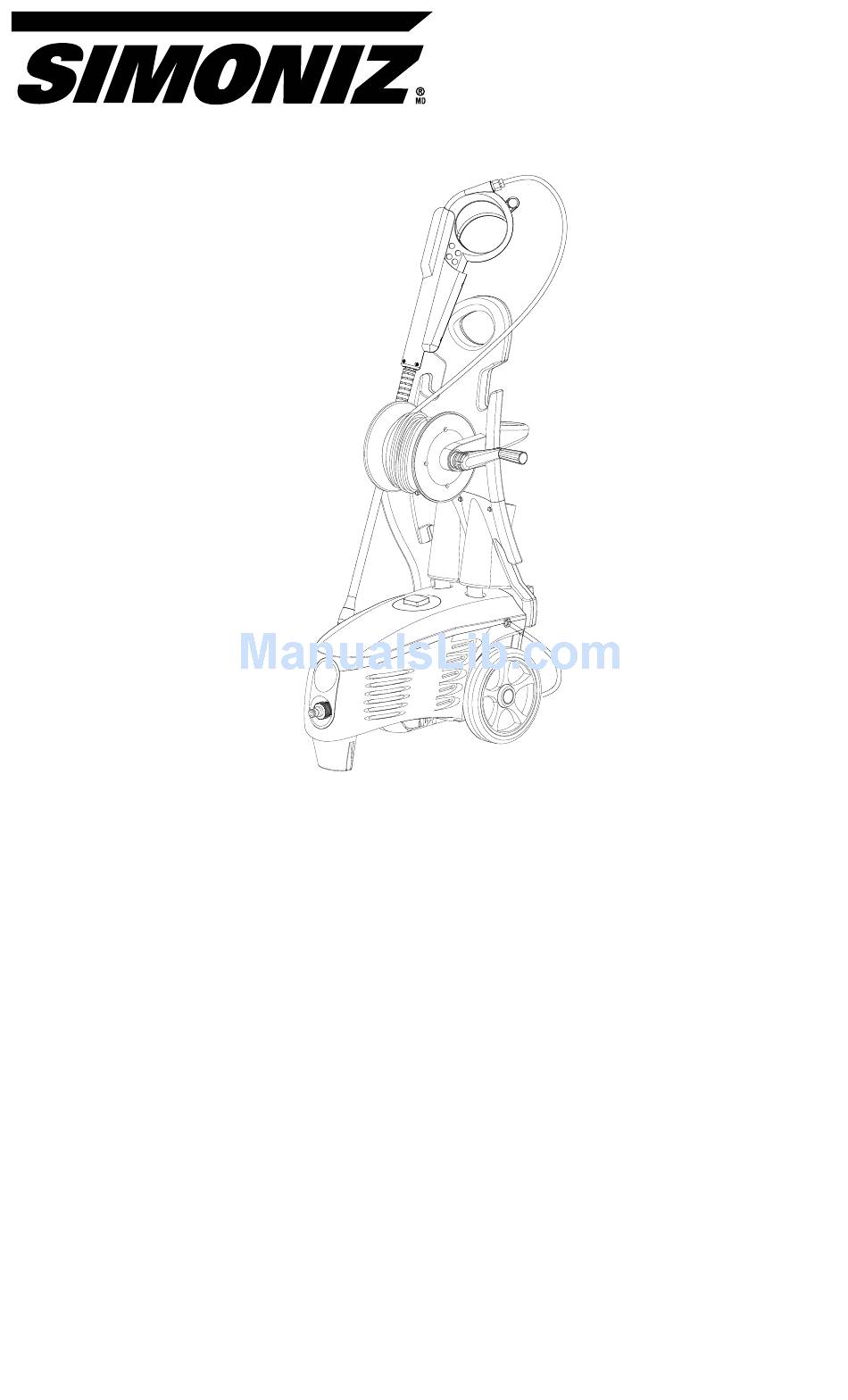

Electric Pressure Washer
S1750 Owner's Manual
If you have any questions or comments, visit our website at www.simoniz.ca or call
our toll free hotline 1-866-4SIMONIZ (1-866-474-6664)
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING
THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE
REFERENCE. IF YOU MUST STORE YOUR PRESSURE WASHER IN A PLACE WHERE
TEMPERATURE IS BELOW 5ºC, YOU MUST APPLY WINTERIZING PROCEDURE TO
PROTECT IT. FAILURE TO WINTERIZE THE UNIT MAY PERMANENTLY DAMAGE PUMP
AND VOID THE WARRANTY.
S
39-8634-4
ku
Advertisement
Table of Contents
Related Manuals for Simoniz S1750
Summary of Contents for Simoniz S1750
- Page 1 Electric Pressure Washer S1750 Owner’s Manual If you have any questions or comments, visit our website at www.simoniz.ca or call our toll free hotline 1-866-4SIMONIZ (1-866-474-6664) PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Technical specifications ......................1 Warranty ..........................2 Important precautions – Read first! ..................3 Safety features and electrical power information ..............5 Parts diagram and list ......................6 Assembly instructions ......................7 Operating instructions ......................8 Using the accessories ....................10 Working with detergents .....................11 Shutting down and cleaning up ..................12 Taking a break ......................13... -
Page 3: Warranty
Warranty is void if the equipment is used for commercial, rental or industrial purposes. If you have more questions, visit our website (www.simoniz.ca), or call 1-866-4SIMONIZ (1-866-474-6664). -
Page 4: Important Precautions - Read First
IMPORTANT PRECAUTIONS – READ FIRST Safety Warnings • When using this product, basic precautions should always be followed: Read all the instructions before using the product. • High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons or animals. - Page 5 IMPORTANT PRECAUTIONS – READ FIRST Warnings • Do not use with flammable liquids and toxic chemicals. • Injection Hazard: Equipment can cause serious injury if the spray penetrates the skin. • Do not point the gun at anyone or any part of the body. In case of penetration seek medical aid immediately.
-
Page 6: Safety Features And Electrical Power Information
SAFETY FEATURES & ELECTRICAL POWER INFORMATION The pressure washer is equipped with a stop device that will sense when the trigger on the gun is released. It will open the power circuit to the motor, and cause the pressure washer motor to stop. The motor will start again when the trigger is pulled. WARNING The pressure washer is also equipped with a main power “ON/OFF”... -
Page 7: Parts And Diagram List
PARTS AND DIAGRAM LIST Item No. Quantity Part Name Parts No. Up-handle assembly JH05-002-0000 Hose reel JH05-002-0001 Gun holster (Top) JH01-000-0004 Screw + Nut JH02-000-0006 Detergent bottle assembly JH02-050-0003 Wheel JH05-000-0005 Gun holster (Bottom) JH01-000-0019 Gun assembly JH02-061-0000 Pressure hose JH05-000-0003 Adjustable wand JH02-000-0007... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Insert handle frame into pressure washer Attach the hand crank onto the hose reel. and align the holes. Insert three nuts into Assemble the extension hose to the reel. the front, and insert the screws from behind as shown. Tighten the screws. Assemble the gun holster. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Remove and discard the cover. Separate (when using detergent) quick-connect coupler assembly. Attach Fill the detergent container with detergent and quick-connector coupler (M2) onto the gar- push lid firmly onto container. Attach detergent den hose and attach the inlet adaptor (M1) suction tube onto detergent lid and attach into the inlet. - Page 10 OPERATING INSTRUCTIONS Make sure the main switch is in “OFF” position. Release safety trigger, if locked. Plug the unit into a properly grounded outlet. ON (l) OFF (O) Press ON ( | ) Button. Purge air by squeezing trigger on the gun until there is a steady stream of water.
-
Page 11: Using The Accessories
OPERATING INSTRUCTIONS Surface Preparation Before starting any cleaning task it is important to inspect the area for objects which could create a hazard. Remove objects from the work area which could be tripped over, such as toys or outdoor furniture. Ensure that all doors and windows are closed tight. USING THE ACCESSORIES Adjustable Wand The adjustable wand controls high-pressure/low-pressure and adjusts the spray. -
Page 12: Working With Detergents
OPERATING INSTRUCTIONS WORKING WITH DETERGENTS Working with detergent ensures a quick soaking of the dirt, and allows the high-pressure water to penetrate and remove the dirt more effectively. Always spray detergent on a dry surface, do not pre-soak area. Wetting the surface first dilutes the detergent and reduces its cleaning ability. - Page 13 OPERATING INSTRUCTIONS Rinse with clean water under high-pressure. On a vertical surface, rinse from the bot- tom up, then rinse from the top down to avoid streaking. Hold nozzle 6–8” (15-20 cm) from the work surface at a 45° angle. When you have finished using the detergent injection system, remove detergent suction tube from bottle and insert into 1 gallon (5 L) of fresh water.
-
Page 14: Shutting Down And Cleaning Up
OPERATING INSTRUCTIONS SHUTTING DOWN AND CLEANING UP (If you are not using detergent, go directly to Step 2.) When you have finished using the detergent injection system, remove detergent suction tube from bottle and insert into 1 gallon (5 L) of fresh water. Siphon water at low-pressure for one minute so that all detergent is flushed through system. -
Page 15: Winterizing And Long-Term Storage
2. Depress button on top of antifreeze container. 3. Continue until fluid exits the pump outlet. 4. Remove the hose from pump inlet. Use Simoniz® Pressure Washer Antifreeze (39-8602-0). Quick Winterizing Procedure If you cannot do the Optimum Winterizing procedure, you can still protect your pres-... -
Page 16: Cleaning And User Maintenance
CLEANING AND USER MAINTENANCE Connections Connections on pressure washer hoses; gun and spray wand should be cleaned regularly and lubricated with non-water soluble grease. Adjustable Nozzle Only Clogging of the nozzle causes the pump pressure to be too high and cleaning is immediately required. - Page 17 CLEANING AND USER MAINTENANCE Pressure Washer Cleaning Tips Recommendations Before cleaning any surface, an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results. • Take care when using high-pressure setting as it can potentially damage the finish or paint. •...
- Page 18 CLEANING AND USER MAINTENANCE Pressure Washer Cleaning Tips Cars, Boats & Motorcycles Take care when using high-pressure setting as high-pressure can potentially damage the finish or paint. With Detergent: Fill detergent bottle with Car/Boat Wash (39-4579-0). Place detergent suction tube directly into cleaning solution and apply to surface at low-pressure. For best results, clean one side of vehicle at a time and always apply detergent from bottom to top, do not allow detergent to dry on surface.
-
Page 19: Troubleshooting
TROUBLESHOOTING Disconnect the machine from the power source before making any repairs. Symptom Cause Solution Motor will not start. On/Off switch is in the Turn switch to the “ON” “OFF” (O) position. ( | ) position. Power cord is not plugged in. Plug in power cord. - Page 20 Pressure washer not used for Call the Toll-Free Hotline. long periods. IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT WWW.SIMONIZ.CA OR CALL CUSTOMER SERVICE AT 1-866-4SIMONIZ (1-866-474-6664) FOR HELP .
