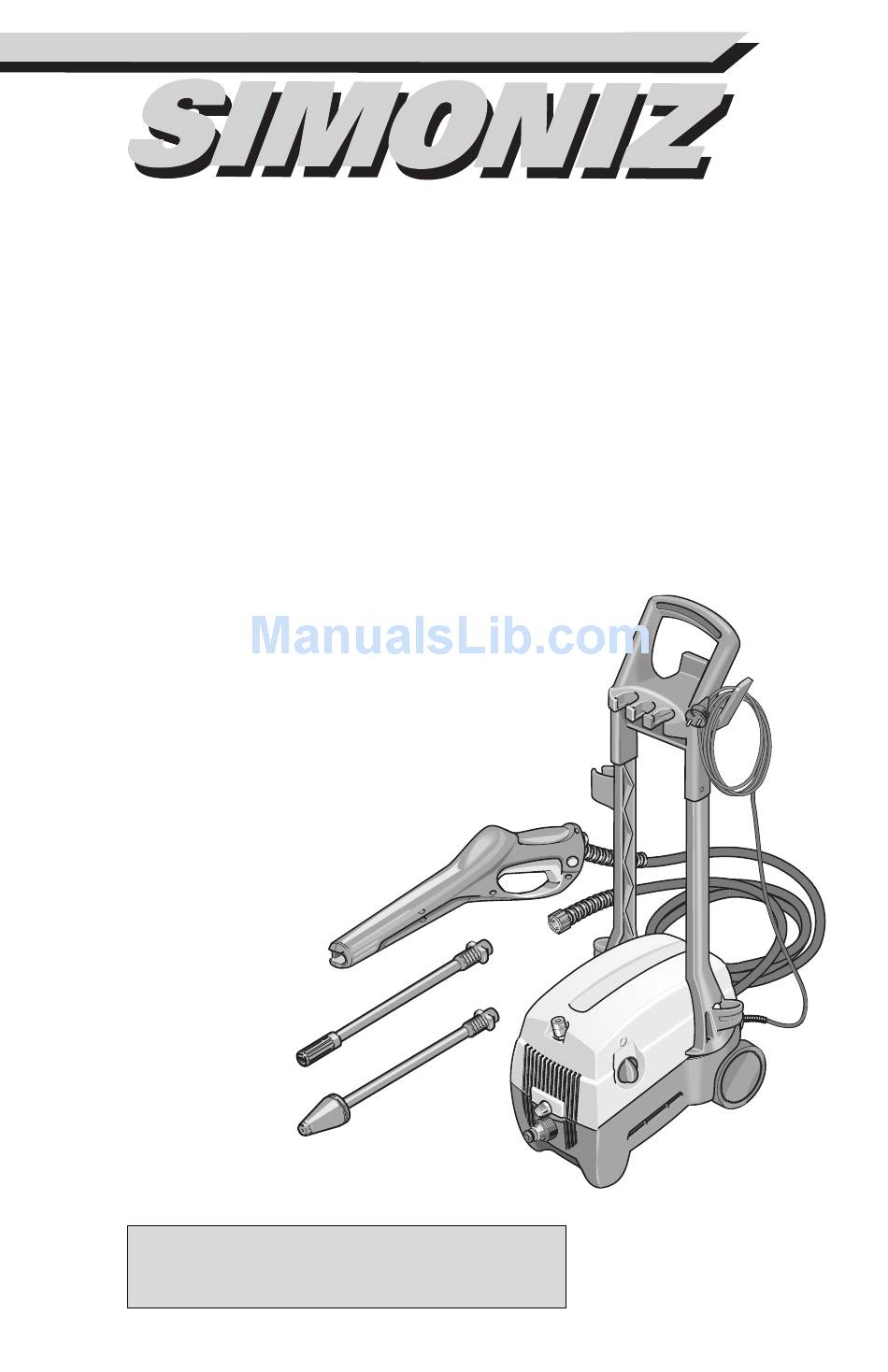

Simoniz High Pressure Washer Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

High Pressure Washer Operator Manual
Overview ................................................................................... 2
Precautions ............................................................................ 2-4
Assembly Instructions .............................................................. 4
Operating Instructions .............................................................. 5
Using the Accessories .............................................................. 6
Working with Detergents .......................................................... 7
Shut Down and Clean-Up ........................................................ 8
Taking a Break .......................................................................... 8
Winterizing and Long-Term Storage ........................................ 8
Cleaning Tips ....................................................................... 9-10
Optional Cleaning Accessories .............................................. 10
Troubleshooting .................................................................11-12

Specifications

Max. Pressure
Max. Water volume
Voltage
Amp draw
Please keep the original box, packaging and receipt.
Before operating this unit, please read this manual
thoroughly and retain it for future reference.
9900 kPa
1.7 GPM
120 V
13 AMPS
5.959-836.04.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the High Pressure Washer and is the answer not in the manual?

Questions and answers

Related Manuals for Simoniz High Pressure Washer

Summary of Contents for Simoniz High Pressure Washer

  • Page 1: Table Of Contents

    High Pressure Washer Operator Manual Overview ................... 2 Precautions ................2-4 Assembly Instructions .............. 4 Operating Instructions .............. 5 Using the Accessories .............. 6 Working with Detergents ............7 Shut Down and Clean-Up ............8 Taking a Break ................8 Winterizing and Long-Term Storage ........

  • Page 2: Overview

    OVERVIEW High Pressure Washer Machine includes 1. Detergent filter and suction tube 9. Trigger gun safety lock 2. On/Off switch 10. Trigger gun with high pressure hose 3. High pressure outlet 11. Trigger gun holder 4. Water inlet 12. Mobile adapter bracket (qty. 2) 5.

  • Page 3: Precautions

    IMPORTANT PRECAUTIONS – Read First! Extension Cords Safety Warnings Use a sufficient gauge: Up to 25 ft = 12/2 When using this product basic precautions AWG: 25 to 50 ft =10/2 AWG. should always be followed: Use only extension cords that are intended •...

  • Page 4: Assembly Instructions

    IMPORTANT PRECAUTIONS – continued Water Supply (Cold Water Only) • Water hose must be at least 3/4 inch in • Never use the pressure washer to draw diameter. in water contaminated with solvents, e.g. paint thinners, gasoline, oil, etc. • Flow rate of water supply must not fall below 2 GPM (gallons per minute).

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Step 1 Step 2 Connect the high pressure hose to the Insert the spray wand of your choice into the unit’s high pressure outlet. trigger gun. Press in against the spring tension (A) and twist into the locked position (B). Step 3 Step 4 Connect garden hose to unit’s water inlet...

  • Page 6: Using The Accessories

    USING THE ACCESSORIES High/low pressure nozzle Rotary nozzle This nozzle features two positions. The high This nozzle features a 0º pencil jet which setting provides a steady powerful 25° high rotates 360º for maximum dirt cutting action, pressure spray pattern, for general cleaning. effectively increasing cleaning performance The low setting creates a wider 40°...

  • Page 7: Working With Detergents

    WORKING WITH DETERGENTS Simoniz Pressure washers operate at two pressures. The high pressure is used for cleaning, you cannot apply detergents when working at high pressure. To apply detergents you must be operating at low pressure. Step 3 Turn on the pressure washer.

  • Page 8: Shut Down And Clean-Up

    SHUTTING DOWN & CLEAN-UP Step 1 Step 2 Step 3 Step 4 Remove detergent suction Turn the switch to Turn off the water Press trigger to tube from jug and insert off (O) position and source. release water into 1 gallon (5 L) of fresh unplug cord from pressure.

  • Page 9: Cleaning Tips

    CLEANING TIPS Recommendations Cement Patios, Brick and Stone • Before cleaning any surface an inconspicuous area should be cleaned to (with or without detergent) test spray pattern and distance for Pre-rinse cleaning surface with fresh water. If maximum cleaning results. using Pressure Wash, place detergent suction •...

  • Page 10: Optional Cleaning Accessories

    • Pipe Drain Cleaner • 25’ Extension Hose SIMONIZ 2 YEAR WARRANTY CIP S.p.A. warrants to the original owner that this product shall be free from defects in material and workmanship for two years from the date of its original purchase.If such a defect appears during the warranty period, upon presentation of proof of purchase, CIP S.p.A.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Disconnect the machine from the power source before making any repair. Symptom Cause Solution Motor will not start On/Off switch is in the “OFF” (O) Turn switch to the “ON” (I) position position. Power cord is not plugged in. Plug in power cord.

  • Page 12: Troubleshooting

    TROUBLESHOOTING – continued Symptom Cause Solution No detergent. Detergent suction tube not properly Check connection. connected to the machine. Detergent is too thick. Dilute detergent. Filter on detergent suction tube is Run warm water through filter to clogged. remove debris. Damaged or clogged detergent Remove obstruction or replace suction tube.
