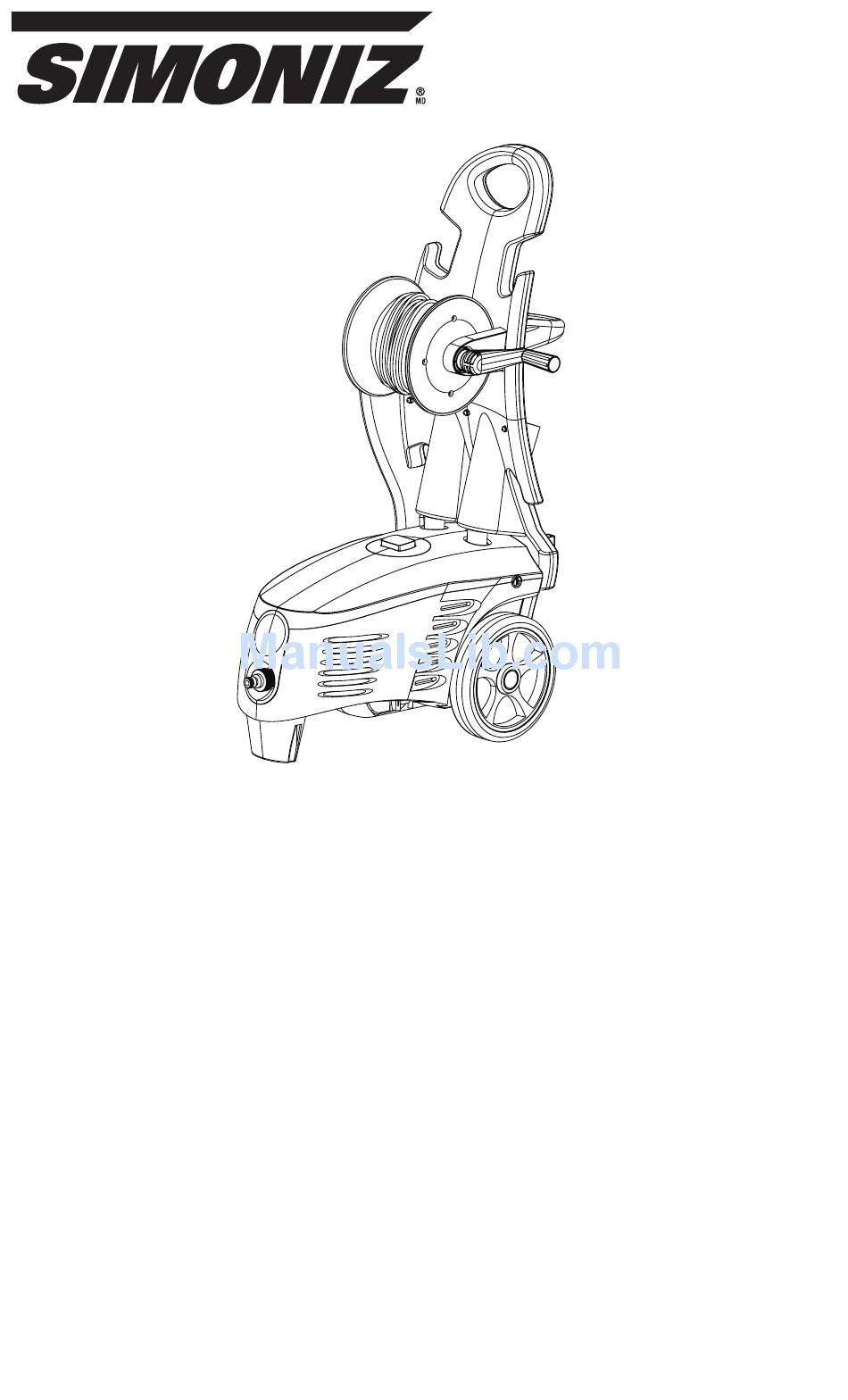

Electric Pressure Washer
S1800
039-8561-6
OWnEr'S Manual
If you have any questions or comments, visit our website at www.simoniz.ca or call
our toll free hotline 1-866-4SIMONIZ (1-866-474-6664).
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE
OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN
IT FOR FUTURE REFERENCE. IF YOU MUST STORE YOUR PRESSURE WASHER
IN A PLACE WHERE THE TEMPERATURE IS BELOW 5ºC, YOU MUST APPLY
WINTERIZING PROCEDURE TO PROTECT IT. FAILURE TO WINTERIZE THE UNIT MAY
PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY.
S
039-8561-6
02-
-
0
ku
ve
manuale
v
Advertisement
Table of Contents
Related Manuals for Simoniz S1800
Summary of Contents for Simoniz S1800
- Page 1 S1800 039-8561-6 OWnEr’S Manual If you have any questions or comments, visit our website at www.simoniz.ca or call our toll free hotline 1-866-4SIMONIZ (1-866-474-6664). PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Warranty is void if the equipment is used for commercial, rental or industrial purposes. TECHNICAL SPECIFICATIONS If you have more questions, visit our website (www.simoniz.ca), or call 1-866-4SIMONIZ (1-866-474-6664). Pressure Washer Specifications... -
Page 3: Important Precautions - Read First
IMPORTANT PRECAUTIONS – READ FIRST IMPORTANT PRECAUTIONS – READ FIRST Warnings WARNING - Risk of Injury Do Not Direct Discharge Stream at Persons. When using this product, basic precautions should always be followed: • High-pressure jet can be dangerous if misused. • Read all the instructions before using the product. • The jet must not be directed at persons, animals, electrical devices, or the unit itself. • Water spray must never be directed toward any electric wiring, devices or directly toward the pressure washer machine itself, or fatal electric shock may occur. WARNING - Risk of Explosion • To reduce the risk of injury, do not operate the machine near children. -
Page 4: Safety Features And Electrical Power Information
SAFETY FEATURES & ELECTRICAL POWER INFORMATION PARTS AND DIAGRAM LIST The pressure washer is equipped with a stop device that will sense when the trigger on the gun is released. It will open the power circuit to the motor, and cause the pressure washer motor to stop. -
Page 5: Assembly
ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS Surface Preparation Before starting any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture. Ensure that all doors and windows are closed tightly. Water Supply (Cold Water Only) Only draw water through the unit. For use with cold water supply only. Water hose must be at least a 1/2”... -
Page 6: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS Recommendation for spray tip usage: 0 ° For tough spots & grimes (e.g. concrete surface) Yellow 15 ° Deliver balanced pressure & flow for general cleaning Black Low pressure to Remove and discard the cover. Separate (When using detergent) apply detergent quick-connect coupler assembly. -
Page 7: Working With Detergents
ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS WORKING WITH DETERGENTS Working with detergent ensures a quick soaking of the dirt, and allows the high-pressure water to penetrate and remove the dirt more effectively. Always spray detergent on a dry surface, do not pre-soak area. -
Page 8: Shutting Down And Cleaning Up
ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS SHUTTING DOWN AND CLEANING UP (If you are not using detergent, go directly to Step 2.) When you have finished using the detergent injection system, fill detergent bottle with clean water. Siphon water at low-pressure for one minute so that all detergent is flushed through system. Remove detergent bottle and rinse it thoroughly. Disconnect the garden hose from the water inlet on the unit. Press trigger to release any remaining water pressure. -
Page 9: Winterizing And Long-Term Storage
WINTERIZING AND LONG-TERM STORAGE CLEANING AND MAINTENANCE Optimum Winterizing Procedure Connections Winterizing your pressure washer will help protect and prolong its life. We strongly Connections on pressure washer hoses, gun and spray wand should be cleaned regularly recommend you follow the below steps using antifreeze. Prepare the pressure washer and lubricated with non-water soluble grease. - Page 10 TROUBLESHOOTING TROUBLESHOOTING Disconnect the machine from the power source before making any repairs. Symptom Cause Solution Symptom Cause Solution Output pressure varies high Discharge nozzle is obstructed. Blow out or remove debris Motor will not start. On/Off switch is in the Turn switch to the “ON”...
-
Page 11: Troubleshooting
Turn ON water supply. Kink in the garden hose. Remove kink in garden hose. IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT WWW.SIMONIZ.CA OR CALL CUSTOMER SERVICE AT 1-866-4SIMONIZ (1-866-474-6664) FOR HELP . Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
