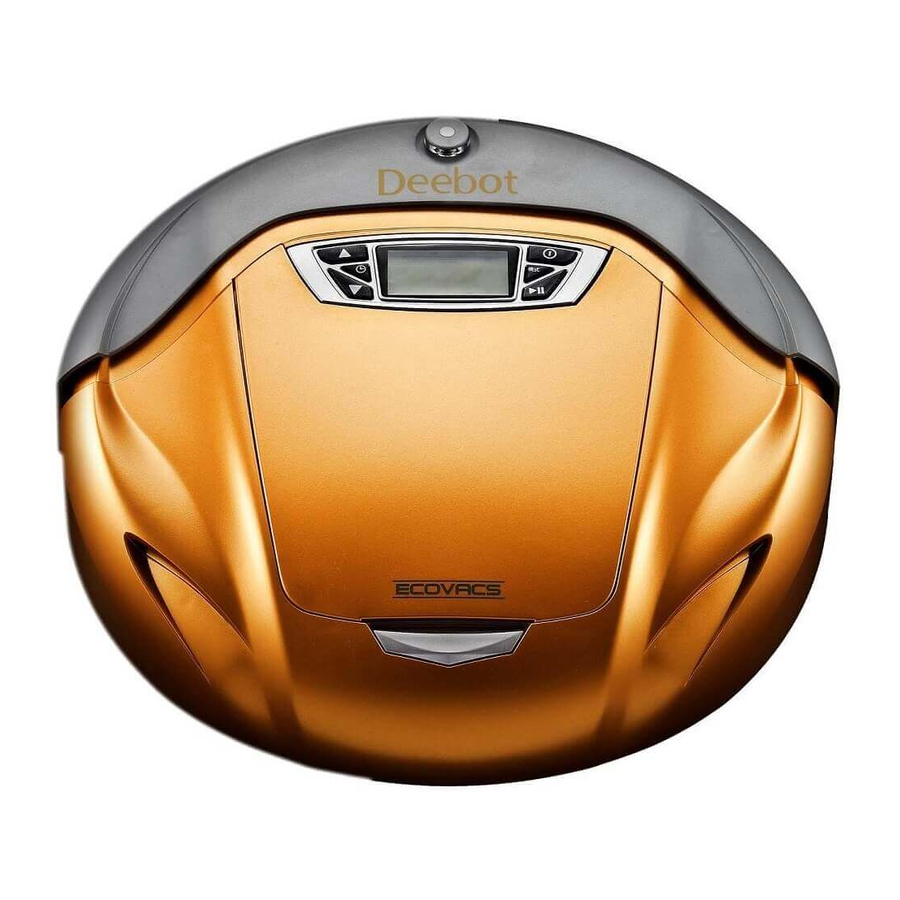

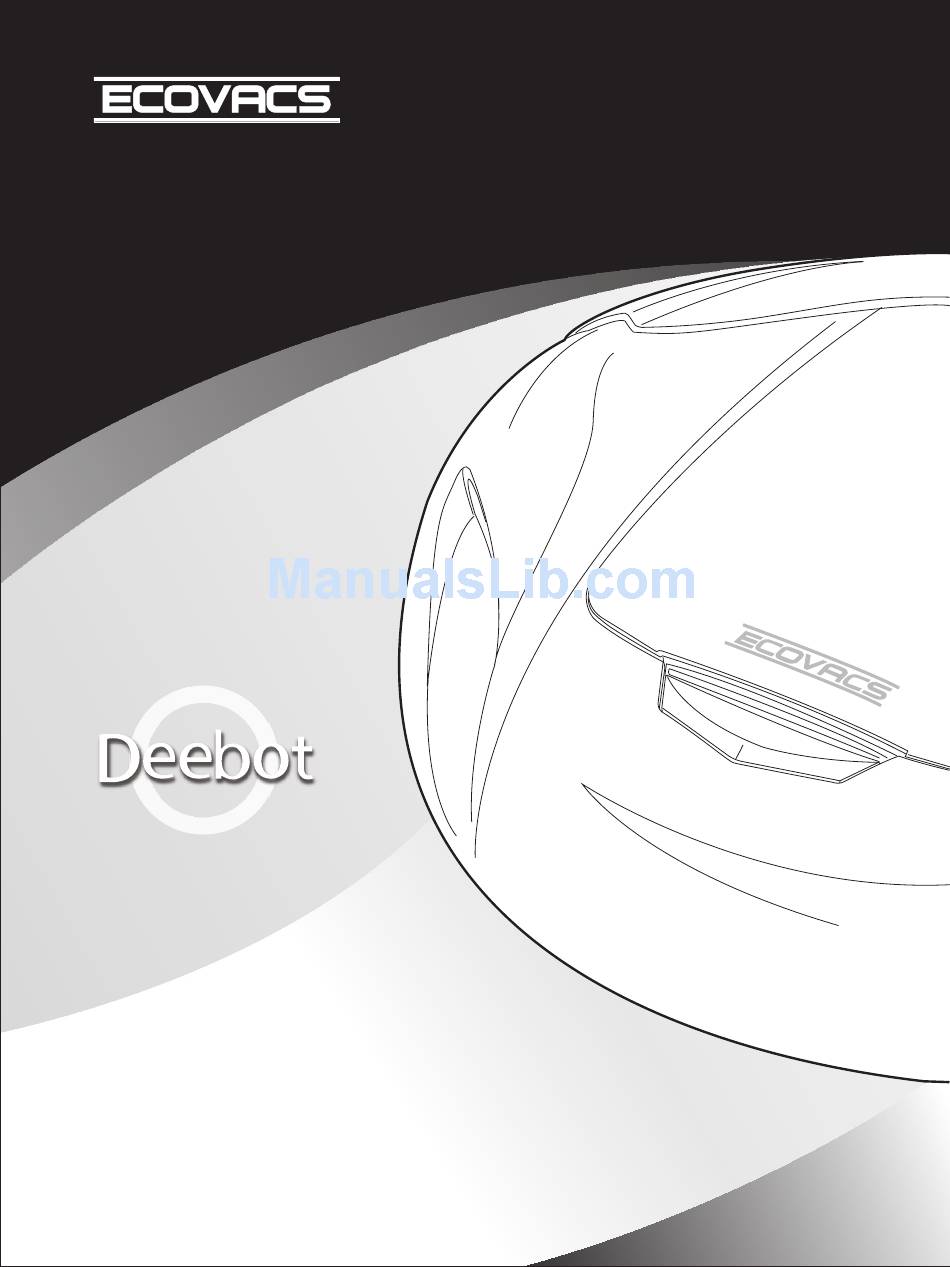

- Page 1 Robot Vacuum Cleaner D58 User Guide...
- Page 3 Robot Thanks for purchasing patented Vacuum Cleaner products Hope you can enjoy it Thanks again for your choice!
-
Page 4: Table Of Contents
Content 1. Safety Instruction......Set Frequency and Cancel Timing..17 User Guide.......... 9. Remote Control........Power Supply for the Product....Battery Placement......17 The Spectrum of Product Use....Use of Remote Control ......18 Notes before Cleaning.. -
Page 5: Safety Instruction
E n j o y S m a r t e r L i f e ! 1.Safety Instruction ： War ning Where there is a drop off in the cleaning area due to a step or stairs and they are not carpeted, you should operate the unit to see that the Guardrail Guardrail unit can detect the step without falling over the edge. -
Page 6: The Spectrum Of Product Use
The Spectrum of the Product Use ● This robot is applicable to domestic sweeping, including wooden floor, rubber floor, ceramic tile, linoleum and medium or short-haired carpet however, it is inapplicable to long-haired carpet. ● It can not be used for the floor as below: ---- Have water on the surface (including flammable liquids), such as wet floor. -
Page 7: Notes Before Cleaning
E n j o y S m a r t e r L i f e ! Notes before Cleaning ● Take extra care of the robot when the first it works. Please remove the obstacles when it is beyond the robot. Try to avoid the situation that the robot stops working. -
Page 8: Battery Replacement And Disposal
● Take good care of the product and keep it beyond child and people who can starts not judge danger nearby. Extra attention should be paid when it working. ● You should get the person inside the room know that the machine is working, in order to avoid man-made damage like tripping. -
Page 9: Content In The Original Package And Technical Parameter
E n j o y S m a r t e r L i f e ! 2.Cont ent Host Charging block Virtual wall spot edge auto Robot Vacuum Cleaner return intensive Battery for virtual wall D58 User Guide Remote control User guide Battery for remote control Side brush... - Page 10 technique parameter The host The charging block Working voltage In-put voltage DC14.4V AC220-240V Rated power rated out-put voltage DC17.5V Speed rated frequency 0.25meter/second 50Hz Capacity of dust box rated power 0.7L Noise ≤62dB rated out-put 0.8A currency Charging duration About 3 hours Virtual wall Duration upon full About 60 minutes...
-
Page 11: Name Of Parts
E n j o y S m a r t e r L i f e ! 3.Name of parts host up-ground height sensor control button wind gate All-round wheel rotating side brush welted induction suspended main brush infrared driving wheel receiver rubber scraper charging dock... -
Page 12: Lcd And Control Panel
LCD and Control Panel mode Power Intensive cleaning mode 15. Appointment time setting 20. Tip for trapped Model selection Automatic cleaning mode 16. Time adjust button 21. Tip for driving wheel suspend On/Pause 10. Operation status 17. Current time setting status Pause status 11. -
Page 13: Charging
E n j o y S m a r t e r L i f e ! Tangle the power cord on the pothook and do not scatter it besides the block or hold it under the base, in case that robot would get impeded when it turns back. -
Page 14: Power On/Pause/Power Off
5.Power On/ Pause/ Power off Get power supply and power on ● Turn on the power switch on the bottom firstly. ● Press the key on host and get power supply. There would be a short music tip and at the same time LCD lights for roughly 2 second and goes off. -
Page 15: Mode Selection
E n j o y S m a r t e r L i f e ! Tips : Put the robot on the charging block and keep it charging after finishing house cleaning. Do not keep the robot on pause status for long time, because under pause, the full charged battery can only last for around 20 hours. -
Page 16: Border Cleaning Mode
Border Cleaning Mode Route description: under this mode, once the robot detects objects, it would run along it, like wall, to clean until it meets obstacle and change the former route. Under this status, robot helps to remove the corner of wall, table, sofa and bed where it is beyond the mode of automatic cleaning. -
Page 17: Automatic Charging
E n j o y S m a r t e r L i f e ! 7 . Automatically Charging ● When it finishes cleaning or there is low battery, it would seek charger in same route as automatic cleaning.To make it easy for robot to search for charging block, you need to put the block back to the wall ？... -
Page 18: Set Current Time
Second time setting 1. Now, the label high light, and the number with time setting is flashing. mode , each 2. Set hourandminute via time press will increase one hour or minute. While decrease one hour and minute for mode 3. -
Page 19: Set Frequency And Cancel Timing
E n j o y S m a r t e r L i f e ! Note When power is off, robot will not start work on appointment time .If you have already set appointment time cleaning, please turn on the robot and keep it on standby status， even though it is not operating. Try to make it stay at the charger and check whether it is connected. -
Page 20: Use Of Remote Control
Use of Remote Control You can control the robot via remote control. Drive robot to appointed area via using direction control button. Choose certain working mode according to different spot edge auto Automatic Cleaning Mode/ Border Cleaning Mode/ Fixed Point Intensive cleaning mode Cleaning Mode/ Go Back Charging Mode... -
Page 21: Use Of Virtual Wall
E n j o y S m a r t e r L i f e ! Note: When you use virtual wall, please face marked ECOVACS to the block area you expect. Put virtual wall outside of the room you want to block to get best effect. -
Page 22: Border Tape
11. Border Tape Border Tape is used to confine the cleaning area. Deebot will not proceed beyond the border, allowing Deebot to clean a designated area. Border Tape Instruction Clean the area where you plan to paste the Border Tape with a dry cloth. -
Page 23: Day-To-Day Storage
E n j o y S m a r t e r L i f e ! 12.Day-to-day Storage You should keep robot stay at charger even though it finishes charging and cleaning task, because it will change to small currency to supplement charging. -
Page 24: Cotton Filter And Filters Cleaing
Hold the handle of In order to avoid dust dust box and lift it to leaking, lift the suction take out. up when you take out dust box. Please mind your speed doing this step. Match the bottom with If you notice that there trash can and swing is too much dust on dust box gently. -
Page 25: Sponge Filter Replacement
E n j o y S m a r t e r L i f e ! Sponge Filter Replacement 1. Open the cover of the Deebot, take out the dust box. 2. Push aside the lock catch of the dust box ,then open the dust box and clean it. -
Page 26: Side Brush Cleaning
Side brush cleaning Side brush is a kind of easy wear part. We suggest you to check it every time it takes cleaning task. Please change it if necessary. Note： The host will alarm when the side brush tangles and it will show on LCD as Replace sidebrush Please replace the side brush when it is destroyed. -
Page 27: Dust Sensor Cleaning
E n j o y S m a r t e r L i f e ! Dust sensor cleaning The dust sensor is located at the front of dust entrance. It is able to detect the concentration of dust so that it can choose efficient mode to work. We suggest you to clean dust sensor once you clean dust box to improve work efficiency. -
Page 28: Common Failure
15. Common Failure Problem Solution Turn off the power. 1. Check if there is dust on up-ground height sensor, which cause robot to make wrong Robot keeps proceeding or moving signal. Use half dry cloth to clean it. backward once power is on. Buffer collision is out of control. -
Page 29: Other Problems
E n j o y S m a r t e r L i f e ! Turn off the power supply, and then take out of dust box. After removing the garbage, overturn the robot. 1. Check whether the suction of main brush is blocked. - Page 30 Why does robot fail to start cleaning on side brush can remove dust along bottom appointment time? edge efficiently; there would be dust beyond robot in the tiny area formed by two walls Answer: a.Confirm whether there is much which need to be removed by hand. remaining battery.
- Page 31 E n j o y S m a r t e r L i f e ! How does main brush avoid being tangled If the procedures above still do not make by power cord? it work, please contact our after-sales service.
- Page 32 Enjoy smar ter life! D58-000IM201101...
Need help?
Do you have a question about the Deebot D58 and is the answer not in the manual?
Questions and answers

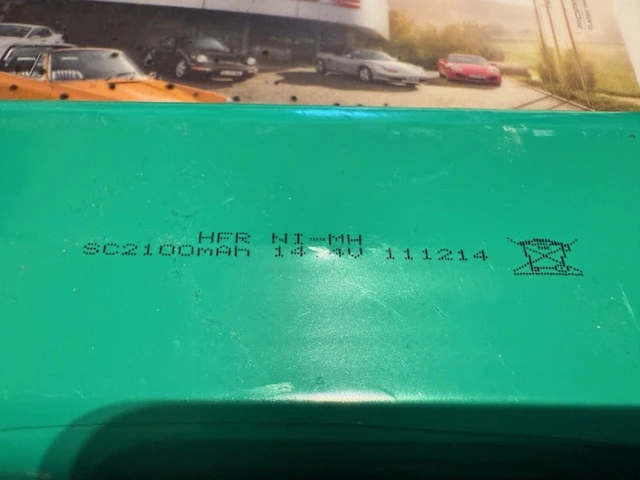

Battery replacement for Deebot 58
To replace the battery for ECOVACS Deebot D58:
1. Power off the Deebot and turn it over.
2. Locate and open the battery compartment on the bottom.
3. Remove the old battery by unplugging its connector.
4. Insert the new compatible battery (e.g., GYMSO Battery Replacement for LP43SC1800P12).
5. Plug in the connector securely.
6. Close the battery compartment and turn the Deebot back on.
