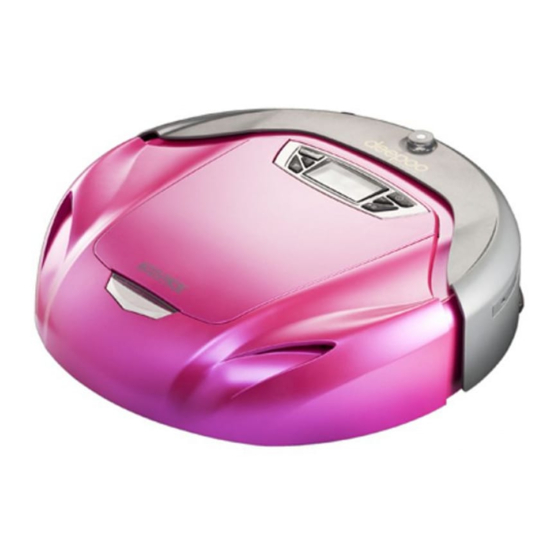

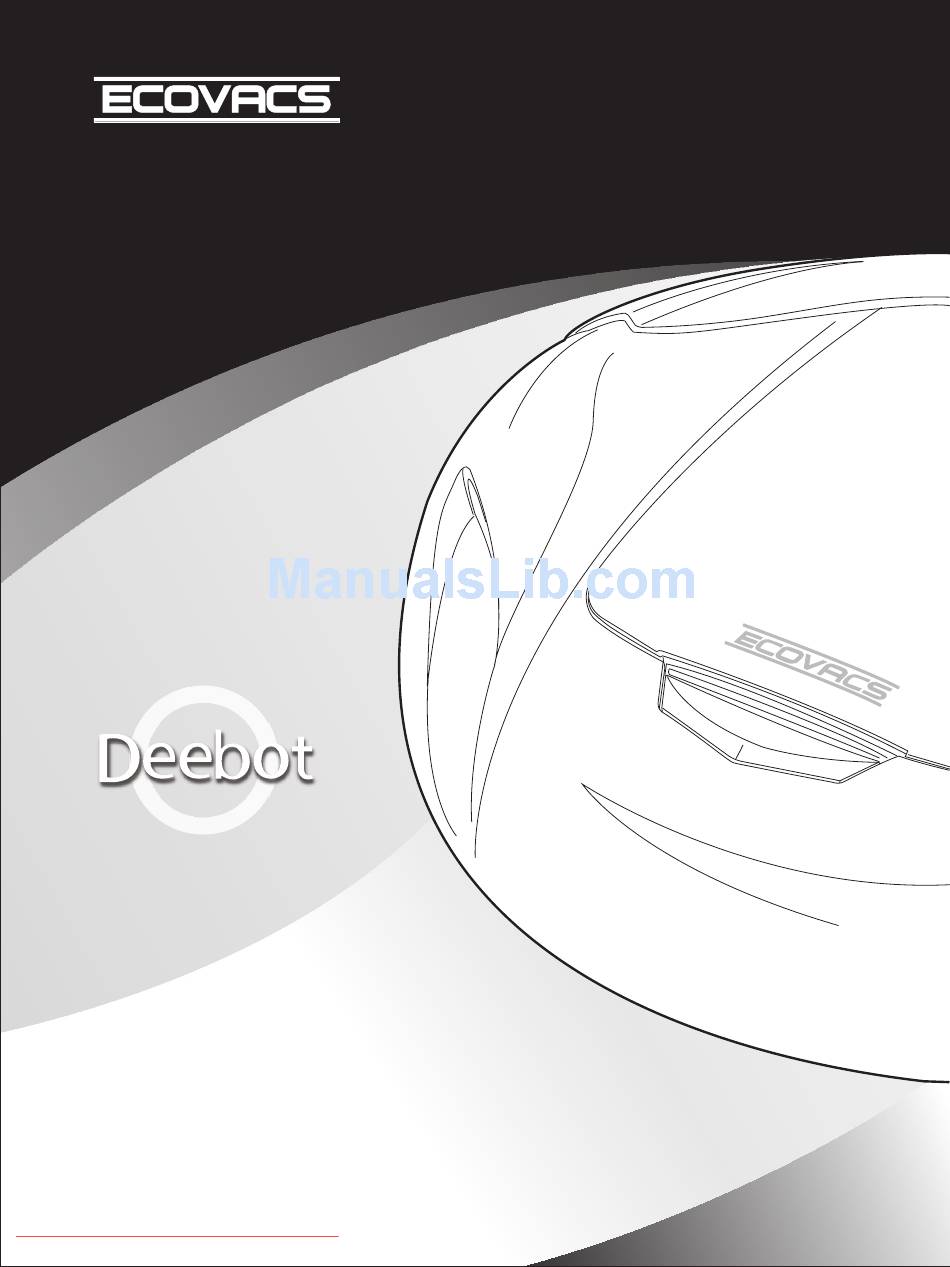

- Page 1 Robot Vacuum Cleaner D56 User Guide Downloaded From Vacuum-Manual.com Manuals...
- Page 2 Downloaded From Vacuum-Manual.com Manuals...
-
Page 3: Vacuum Cleaner
Thanks for purchasing patented Robot Vacuum Cleaner products Hope you can enjoy it Thanks again for your choice! Downloaded From Vacuum-Manual.com Manuals... -
Page 4: Table Of Contents
Content 1. Safety Instruction......3 9. Day-to-Day Storage......16 User Guide........10. Maintenance........Power Supply for the Product....Host Cleaning........16 The Spectrum of Product Use....Dust Box Cleaning ......16 Notes before Cleaning....... Cotton Filter Cleaing...... -
Page 5: Safety Instruction
E n j o y S m a r t e r L i f e ! 1.Safety Instruction ： Where there is a drop off in the cleaning area due to a step or War ning Guardrail Guardrail stairs and they are not carpeted, you should operate the unit to see that the unit can detect the step without falling over the edge. -
Page 6: The Spectrum Of Product Use
The Spectrum of the Product Use ● The robot is applicable to domestic sweeping, including wooden floor, rubber floor, ceramic tile, linoleum and medium or shorthaired carpet. However, it is inapplicable to longhaired carpet. ● It can not be used for the floor as below: ---- Have water on the surface (including flammable liquids), such as wet floor. -
Page 7: Notes Before Cleaning
E n j o y S m a r t e r L i f e ! Notes before Cleaning ● Take extra care of the robot when the first it works. Please remove the obstacles when it is beyond the robot. ●... -
Page 8: Battery Replacement And Disposal
● Take good care of the product and keep it beyond children and people who cannot judge danger nearby. Extra attention should be paid when the robot starts working. ● You should get the people inside the room know that the machine is working to avoid man-made damage like damaging. -
Page 9: Content In The Original Package And Technical Parameter
E n j o y S m a r t e r L i f e ! 2.Cont ent Robot Vacuum Cleaner D56 User Guide Charging block User guide Host Roll brush clean-up Side brush gadget technique parameter The host The charging block Working voltage In-put voltage... -
Page 10: Name Of Parts
3.Name of parts host up-ground height sensor control button wind gate All-round wheel rotating side brush welted induction suspended main brush infrared driving wheel receiver rubber scraper charging dock on/off switch electrode buffer plate dust sensor bottom view of robot dust sensor dust box handle ash exit... -
Page 11: Lcd And Control Panel
E n j o y S m a r t e r L i f e ! LCD Display and Control Panel mode Power Border cleaning mode 13. One-time timing cleaning 19. Tip for cleaning dust box Model selection Intensive cleaning mode 14. - Page 12 Tangle the power cord and do not scatter it besides the block in case that robot would get impeded when it turns back There should not be any object at least 1.5 meter in front of the charging block. Besides, anything with strong reflector is not supposed to stay ahead of the infrared receiver.
-
Page 13: Power On/Pause/Power Off
E n j o y S m a r t e r L i f e ! 5.Power On/ Pause/ Power Off Get power supply and power on ● Turn on the power switch on the bottom firstly. ● Get power supply and press the button on host. -
Page 14: Mode Selection
Tips : Put the robot on the charging block and keep it charging after finishing house cleaning. Do not keep the robot on pause status for long time, because the full charged battery could only last for around 20 hours. We suggest you to turn it off when you do not want it to work. -
Page 15: Border Cleaning Mode
E n j o y S m a r t e r L i f e ! Border Cleaning Mode Route description: under this mode, once the robot detects hard objects (like wall), it will run along it to clean until it meets obstacle and change the former route. -
Page 16: Automatic Charging
7 .Automatically charging ● When robot detects the low battery, it will go back charging automatically. ● To make it easy for robot to search for charging block, you need to put the block back to the wall and make sure there is no obstacle within 1.5 meters ？... -
Page 17: Set Current Time Cleaning
E n j o y S m a r t e r L i f e ! Set cur rent time 1. After appointment time setting, the label high light, and the number with time setting is flashing. mode 2. Set hour and minute via and , each time press will increase one hour or minute,... -
Page 18: Day-To-Day Storage
9.Day-to-day storage You should keep robot stay at charger even though it finishes charging, because it will change to small currency to supplement charging. Charge the robot until full battery and put it back to the package if you do not need to use it for ling time. Keep the package in dry surroundings to avoid sunshine or humidity. -
Page 19: Cotton Filter Cleaing
E n j o y S m a r t e r L i f e ! Hold the handle of In order to avoid dust dust box and lift it to leaking, lift the suction up take out. when you take out dust box. -
Page 20: Sponge Filter Replacement
Sponge Filter Replacement 1. Open the cover of the Deebot, take out the dust box. 2. Push aside the lock catch of the dust box ,then open the dust box and clean it. 3. Extract the axle of the dust box’s cover. -
Page 21: Side Brush Cleaning
E n j o y S m a r t e r L i f e ! Side Brush Cleaning Side brush is a kind of easy wear part. We suggest you to check it every time it takes cleaning task. Please change it if necessary. Note：... -
Page 22: Dust Sensor Cleaning
Dust Sensor Cleaning The dust sensor is located at the front of dust entrance. It is able to detect the concentration of dust so that it can choose efficient mode to work. We suggest you to clean dust sensor once you clean dust box to improve work efficiency. -
Page 23: Common Failure
E n j o y S m a r t e r L i f e ! 12.Common Failure Problem Solution Turn off the power. 1.Check if there is dust on up-ground height sensor, which cause robot to make wrong Robot keeps proceeding or moving signal. -
Page 24: Other Problems
Turn off the power supply, and then take out of dust box. After removing the garbage, overturn the robot. 1. Check whether the suction of main brush is blocked. There is much noise when the robot 2. Examine and clean the main brush. works. - Page 25 E n j o y S m a r t e r L i f e ! Why does robot fail to start cleaning on avoid wrong operation by child. appointment time? Is there any danger to wrongly touch the Answer: a.Confirm whether there is much docking electrode film between the host remaining battery.
- Page 26 What should do if robot sucked liquid? Answer: a. Turn off the power and take out dust box, then empty it and wipe it dry. b. Draw out the sponge filter and wipe it dry. c. Take out main brush and clean it, then use day cloth to wipe the brush and its interior.
- Page 27 Downloaded From Vacuum-Manual.com Manuals...
- Page 28 Enjoy smar ter life! D56-000IM201 01 Downloaded From Vacuum-Manual.com Manuals...
