Summary of Contents for ECOVACS DEEBOT T9

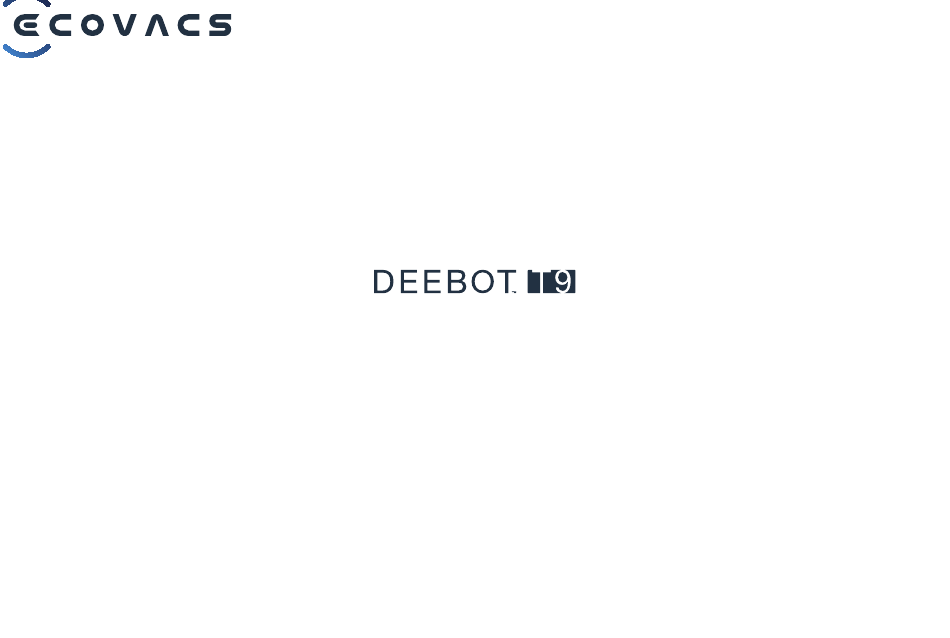

  • Page 1 Instruction Manual...
  • Page 2 Important Safety Instructions 3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the IMPORTANT SAFETY INSTRUCTIONS Appliance to ensure that it can detect the step When using an electrical Appliance, basic without falling over the edge.
  • Page 3 parts of body away from any openings and or corners. Do not run Appliance over the moving parts. power cord. Keep power cord away from hot 12. Do not operate the Appliance in a room surfaces. where an infant or child is sleeping. 19.
  • Page 4 29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use. 30. The robot contains batteries that are only replaceable by skilled persons.
  • Page 5 ON. For EU Declaration of Conformity information, visit Place the robot on the Docking Station making https://www.ecovacs.com/global/compliance sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection. Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps.
  • Page 6 Air Freshener Capsule (Wild Bluebell) : Main Ingredients for Capsule: PET, Polypropylene. Main Ingredients for Air Freshener: Ethylene/Vinyl WARNING: Acetate copolymer, Fragrance. May cause an allergic skin reaction. See manufacturing date, expiration date, and lot Toxic to aquatic life with long lasting effects. number on pack.

  • Page 7: Package Contents

    Package Contents Product Diagram Robot Top Cover AUTO Mode Button Robot Docking Station Instruction Manual TrueDetect 3D Sensor OZMO Pro Side Brushes Disposable Mopping Pads Oscillating System TrueMapping Distance Sensor Air Freshener (Pre-installed) Air Freshener Capsule Anti-collision Bumper Note: Figures and illustrations are for reference only and may differ from actual product appearance.
  • Page 8 Bottom View Charging Contacts Carpet Detection RESET Button Universal Wheel Sensor Side Brushes Main Brush Wi-Fi Status Driving Wheels Indicator Power Switch Multi-function Cleaning Tool Anti-drop Sensors Sponge Filter Dust Bin Handle Main Brush Release Button Release Button Filter Net Anti-drop Sensors High Efficiency Filter Air Freshener...

  • Page 9: Notes Before Cleaning

    Notes Before Cleaning Docking Station Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place. Docking Station Pins Power Cord During the first use, make sure each room door is open to help DEEBOT OZMO Pro Oscillating System fully explore your house.
  • Page 10 To enjoy all available features, it is recommended to control your DEEBOT via During the first cleaning: the ECOVACS HOME app. 1.Please make sure to install Air Freshener to create a home map in Before you start, make sure that: ECOVACS HOME App.
  • Page 11 OZMO Pro Oscillating System Pause Note: 1.Install OZMO Pro Oscillating System for floor scrubbing. 2.With electric oscillating mopping up to 480 times per minute, OZMO Pro is applicable for areas of highly concentrated dirt or dust. 3.Before installing OZMO Pro, please make sure the contacts are thoroughly dry. 4.Please avoid using OZMO Pro on the carpet.

  • Page 12: Air Freshener

    Air Freshener Dry Contacts Thoroughly Install Air Freshener Capsule Install OZMO Pro Dry Contacts Thoroughly Click Install Air Freshener Start Cleaning Click Enable Air Freshening via ECOVACS HOME App...

  • Page 13: Regular Maintenance

    Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station. A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.
  • Page 14 Maintain OZMO Pro Oscillating Maintain Dust Bin and Filters System Remove OZMO Pro * After DEEBOT finishes mopping, please empty the reservoir. Wipe OZMO Pro Clean * Wipe OZMO Pro Oscillating System with a clean, dry cloth. Do not soak into water.
  • Page 15 Maintain Main Brush and Side Brushes Main Brush...
  • Page 16 Maintain Other Components Side Brushes Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station. Wipe the components with a clean, dry cloth. Avoid using cleaning sprays or detergents.

  • Page 17: Indicator Light

    Indicator Light DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website. Indicator Light Scenario The robot is cleaning. AUTO Mode Button glows a solid WHITE.

  • Page 18: Troubleshooting

    DEEBOT gets stuck while working and stops. DEEBOT might be stuck under furniture with an entrance Please set a physical barrier, or set a Virtual Boundary in the of similar height. ECOVACS HOME App.
  • Page 19 The Docking Station is too distant from the center of Please place the Docking Station against the wall of a central the house. room of the house. Program DEEBOT to clean at specific times using the ECOVACS Time Scheduling function is cancelled. HOME App. DEEBOT does not clean automatically at the scheduled DEEBOT is switched OFF.
  • Page 20 Enter the correct home Wi-Fi username and password. entered. Incorrect App installed. Please download and install ECOVACS HOME App. DEEBOT is not within range of your home Wi-Fi Make sure DEEBOT is within range of your home Wi-Fi signal. DEEBOT is not able to connect to signal.
  • Page 21 Air Freshener. Please replace the Air Freshener Capsule. For more information The Air Freshener Capsule reached its service life. for replacements, please visit https://www.ecovacs.com/global. Air Freshener makes an abnormal Objects have fallen into the Air Freshener. Please contact Customer Service for assistance.

  • Page 22: Technical Specifications

    Output power of the Wi-Fi module is less than 100mW. Note: Technical and design specifications may be changed for continuous product improvement. * CH1918 is an Auto-Empty Station sold separately that automatically empties your DEEBOT dustbin. Explore more accessories at https://www.ecovacs.com/global.
  • Page 23 Ecovacs Robotics Co., Ltd. No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China. 451-2010-0731...
