INSTALLATION AND OPERATION MANUAL
FVT1C1B(M,S)1-M
8-BIT DIGITALLY ENCODED VIDEO MINI TRANSMITTER
WITH CONTACT CLOSURE

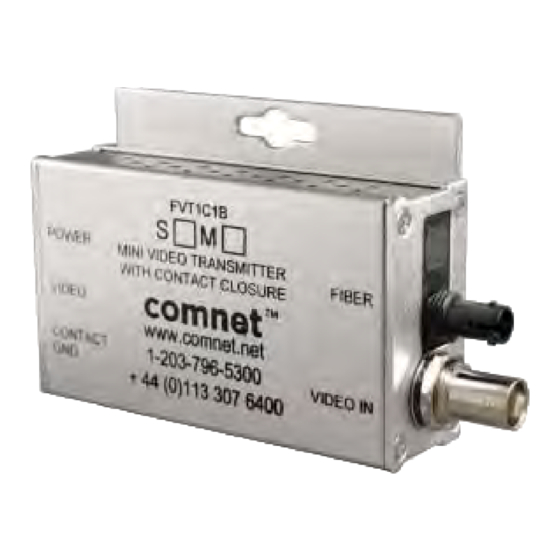

The FVT1C1B-M video mini-transmitter supports transmission of a fixed video and
a contact closure signal using an 8-bit digitally encoded signal on one multimode
or single mode fiber optic cable. These units are completely transparent to and
universally compatible with any NTSC, PAL, or SECAM CCTV camera systems.
The FVT1C1B-M video transmitter is compatible with the FVR4C4B receivers.
Installation requires no electrical or optical adjustments.
The transmitter incorporates a bi-color (Red/Green) indicating LED for monitoring
proper system operation.
The unit operates on 5VDC power.
The FVT1C1B mini unit operates as a standalone module only.
See Figures 1 – 3 for complete installation details.
INS_FVT1C1B_REV–
12/06/10
PAGE 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Comnet FVT1C1BM1-M
Summary of Contents for Comnet FVT1C1BM1-M
- Page 1 INSTALLATION AND OPERATION MANUAL FVT1C1B(M,S)1-M 8-BIT DIGITALLY ENCODED VIDEO MINI TRANSMITTER WITH CONTACT CLOSURE The FVT1C1B-M video mini-transmitter supports transmission of a fixed video and a contact closure signal using an 8-bit digitally encoded signal on one multimode or single mode fiber optic cable. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems.
- Page 2 INSTALLATION AND OPERATION MANUAL FVT1C1B(M,S)1-M FIGURE 1 – FVT1C1B(M,S)1-M 5VDC INPUT +5V Center GND Shield MULTIMODE OR SINGLE MODE OPTICAL FIBER FIGURE 2 – FVT1C1B(M,S)1-M FIGURE 3 – LED INDICATOR FRONT PANEL REAR PANEL VIDEO PRESENT GREEN A Video signal is present.
- Page 3 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT1C1B_REV– 12/06/10 © 2011 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 3...
