Comnet FVT10 Installation And Operation Manual

Video transmitter

INSTALLATION AND OPERATION MANUAL

FVT10

VIDEO TRANSMITTER

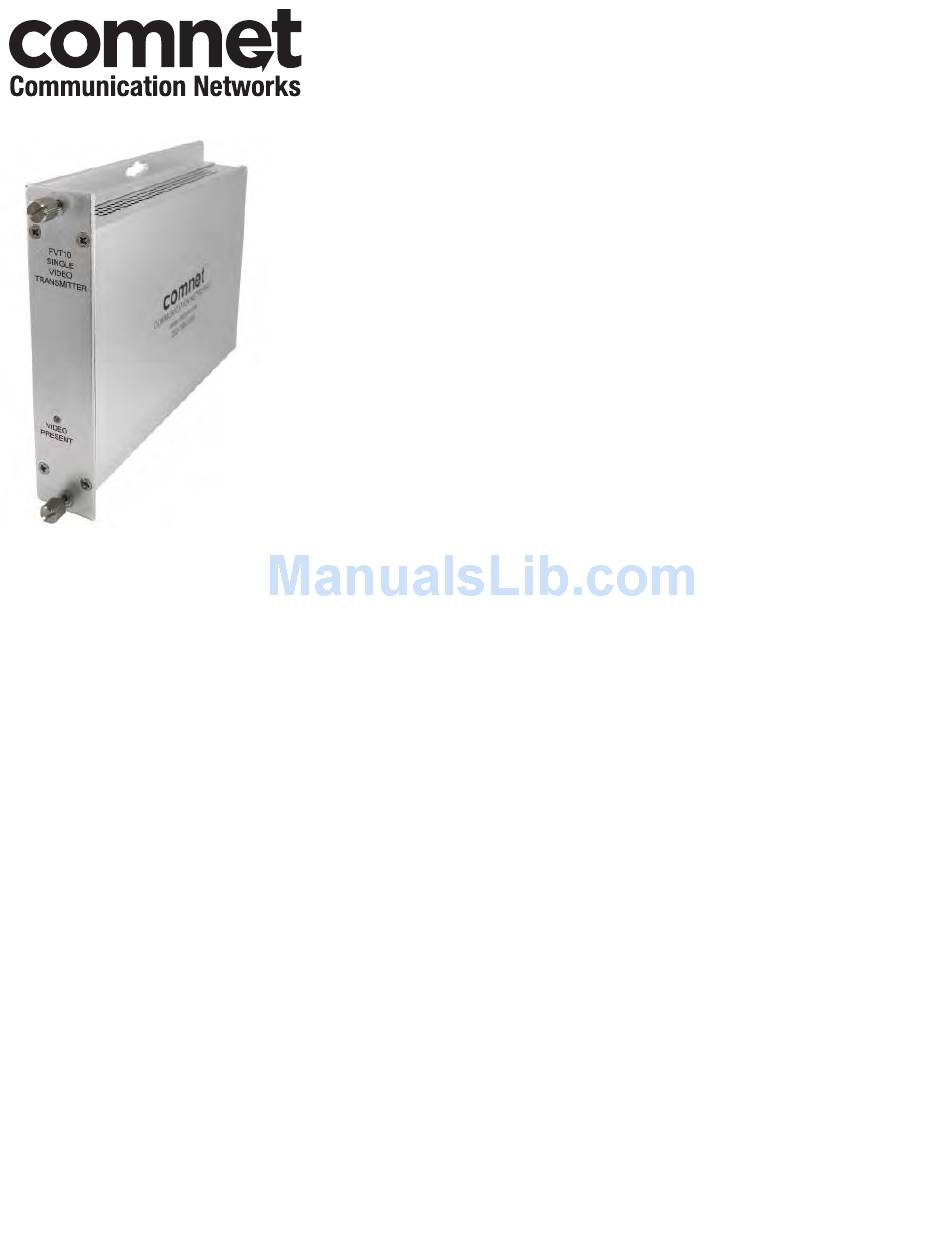

The FVT10 single channel transmitter supports one independent AM video

signal on one independent multimode optical fiber. The FVT10 video transmitter

is compatible with the FVR10, FVR10M, FVR11, FVR11M, FVR21 and FVR22

receivers. Plug-and-play design ensures ease of installation requiring no

electrical or optical adjustments. The FVT10 is interchangeable between stand-

alone or card mount configurations.

See Figure A for mounting instructions.

INS_FVT10_REV–

12/03/10

PAGE 1

Table of Contents

Need help?

Do you have a question about the FVT10 and is the answer not in the manual?

Page 1 VIDEO TRANSMITTER The FVT10 single channel transmitter supports one independent AM video signal on one independent multimode optical fiber. The FVT10 video transmitter is compatible with the FVR10, FVR10M, FVR11, FVR11M, FVR21 and FVR22 receivers. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments.
Page 2 INSTALLATION AND OPERATION MANUAL FVT10 FIGURE 1 – FVT10 TRANSMITTER OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8–15 VDC @ 80mA Rack Mount: From Rack FIGURE 2 – FVT10 TRANSMITTER FIGURE 3 – LED INDICATOR FRONT PANEL...
Page 3 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT10_REV– 12/03/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 3...
