INSTALLATION AND OPERATION MANUAL
FVTR1D1A2C1(M)(S)1
10-BIT DIGITALLY ENCODED BI-DIRECTIONAL VIDEO
WITH 1 BI-DIRECTIONAL DATA CHANNEL,
2 BI-DIRECTIONAL 24-BIT AUDIO CHANNELS
AND 1 BI-DIRECTIONAL CONTACT CLOSURE

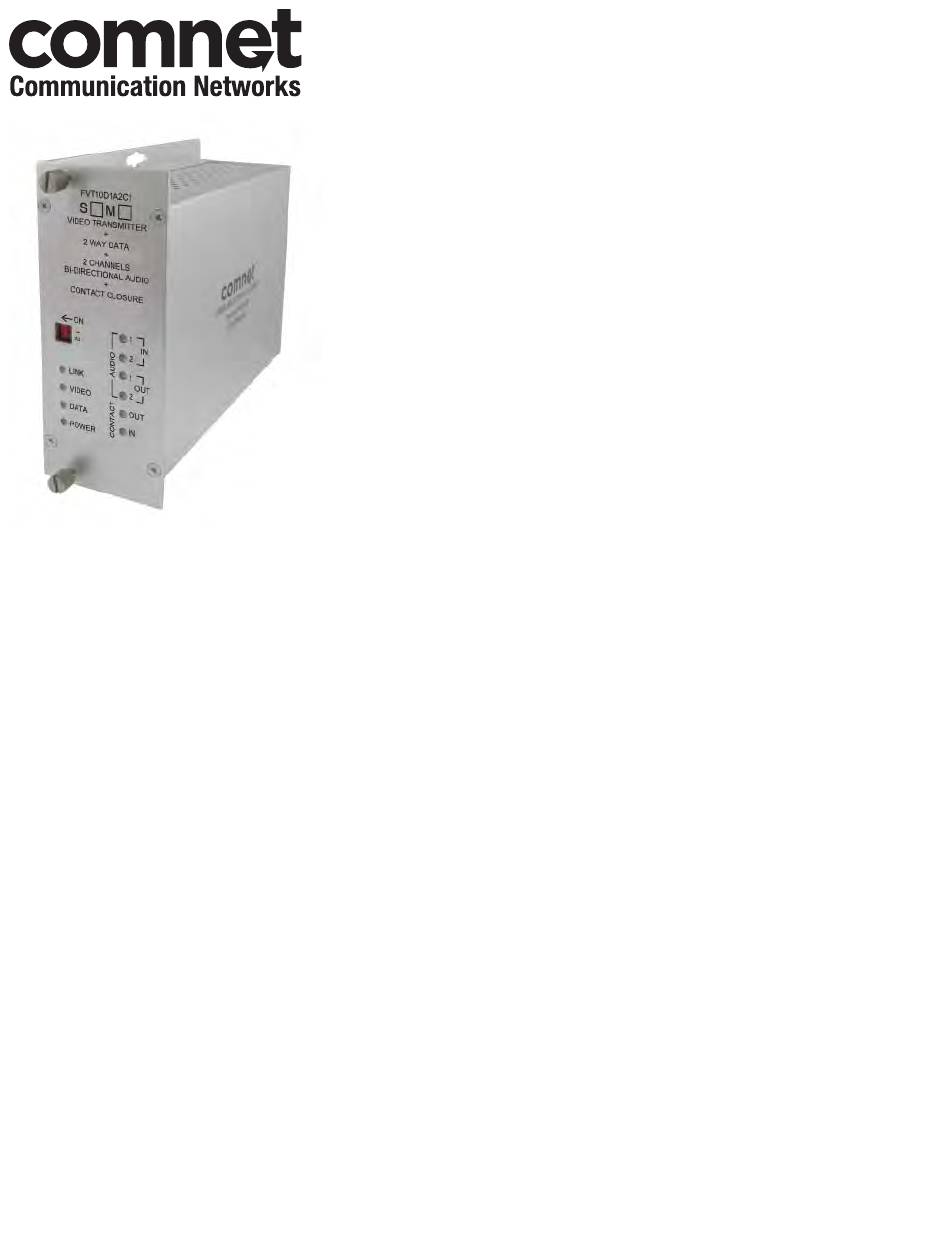

The FVTR1D1A2C1 is a bi-directional 10-bit video transmission system along
with one channel of bi-directional data, two channels of bi-directional audio
and one bidirectional contact.
The data channel is configured using a two position switch to operate as RS232,
RS422 or RS485, either two (2) wire or four (4) wire. See Figure 4 on Page 3
for details.
The FVTR1D1A2C1 may be directly plugged into the ComNet Rack (Part #C1) or
operated as a standalone module powered by the PS-9VDC power supply also
provided with the module. See Page 5 for mounting instructions.
The FVTR1D1A2C1 requires one optical fiber and may be supplied in a
multimode (M) or single mode (S) version.
See Figures 1 – 7 for complete installation details.
INS_FVTR1D1A2C1_REV–
6/16/10
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FVTR1D1A2C1M1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comnet FVTR1D1A2C1M1

  • Page 1 RS422 or RS485, either two (2) wire or four (4) wire. See Figure 4 on Page 3 for details. The FVTR1D1A2C1 may be directly plugged into the ComNet Rack (Part #C1) or operated as a standalone module powered by the PS-9VDC power supply also provided with the module.
  • Page 2 INSTALLATION AND OPERATION MANUAL FVTR1D1A2C1 FIGURE 1 – FVTR1D1A2C1 TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8–15 VDC @ 2W Rack Mount: From Rack FIGURE 2 – FVTR1D1A2C1 TRANSCEIVER FRONT PANEL REAR PANEL Video termination Switch Set switch to TERM (Terminate)
  • Page 3 INSTALLATION AND OPERATION MANUAL FVTR1D1A2C1 FIGURE 3 – SWITCH POSITIONS The mode for each data channel is configured using a set of two switches on the front panel of the unit. FIGURE 4 – DATA CONNECTIONS Customer Customer Equipment FVTR1D1A2C1A Equipment FVTR1D1A2C1B Data Transmit...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVTR1D1A2C1 FIGURE 5 – AUDIO AND CONTACT CONNECTORS AUDIO CONTACT CLOSURE FIGURE 6 – DATA CONNECTIONS See Page 3 for Switch Settings Rear Panel 1) RS232 2) RS422, 3) RS485 2-wire, 4) RS485 4-wire 1 DIN (–) Manchester Sensornet 1 DIN (+)
  • Page 5 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVTR1D1A2C1_REV– 6/16/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 5...
