INSTALLATION AND OPERATION MANUAL
FVT/FVR1031(M)(S)1
10-bIT dIGITAl VIdEo wITh bI-dIREcTIoNAl dATA
(RS232, 422 ANd RS485 2 & 4 wIRE)
PElco ANd PANASoNIc "UP-ThE-coAX"

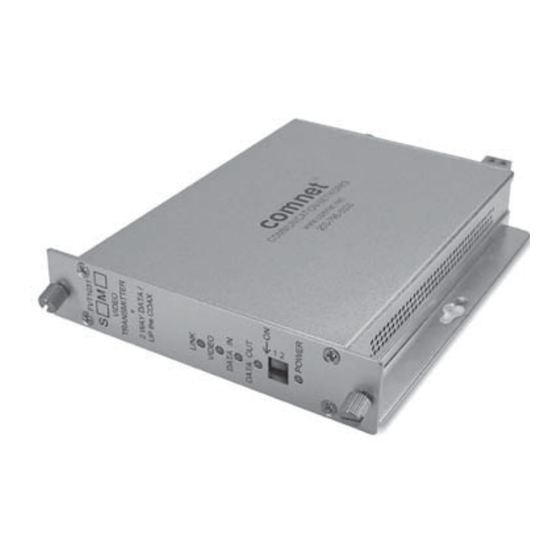

The FVT/FVR1031 transmits 10 bit digital video and full duplex data over one
Singlemode or Multimode fiber. The video supports NTSc, PAl and SEcAM ccTV
camera systems. The data supports RS232, RS422 and RS485 (2w & 4w) at data rates
up to 115 Kbps (NRZ). The FVT/FVR1031 series also supports "UP-ThE-coAX" control
signals for Pelco and Panasonic cameras with a maximum distance of 1500 feet (590
meters). The product is "Plug-and-Play" with no electrical or optical adjustments.
The FVT/FVR1031 allows the user to choose bi-directional data or up-the-coax data
through a switch on the unit, as described in Figure 6 on Page 3.
bi-color (Red/Green) lEd indicators are provided for rapidly ascertaining equipment
operating status. Figure 4 on Page 3 describes the lEd indicators for each light on
the unit.
These units are interchangeable between stand-alone or card mount configurations,
or used with a dIN-rail adapter. See Figure A on Page 4 for installation instructions.
See Figures 1 – 7 for complete installation details.
INS_FVT/FVR1031_REV–
02/05/10
PAGE 1
