INSTALLATION AND OPERATION MANUAL

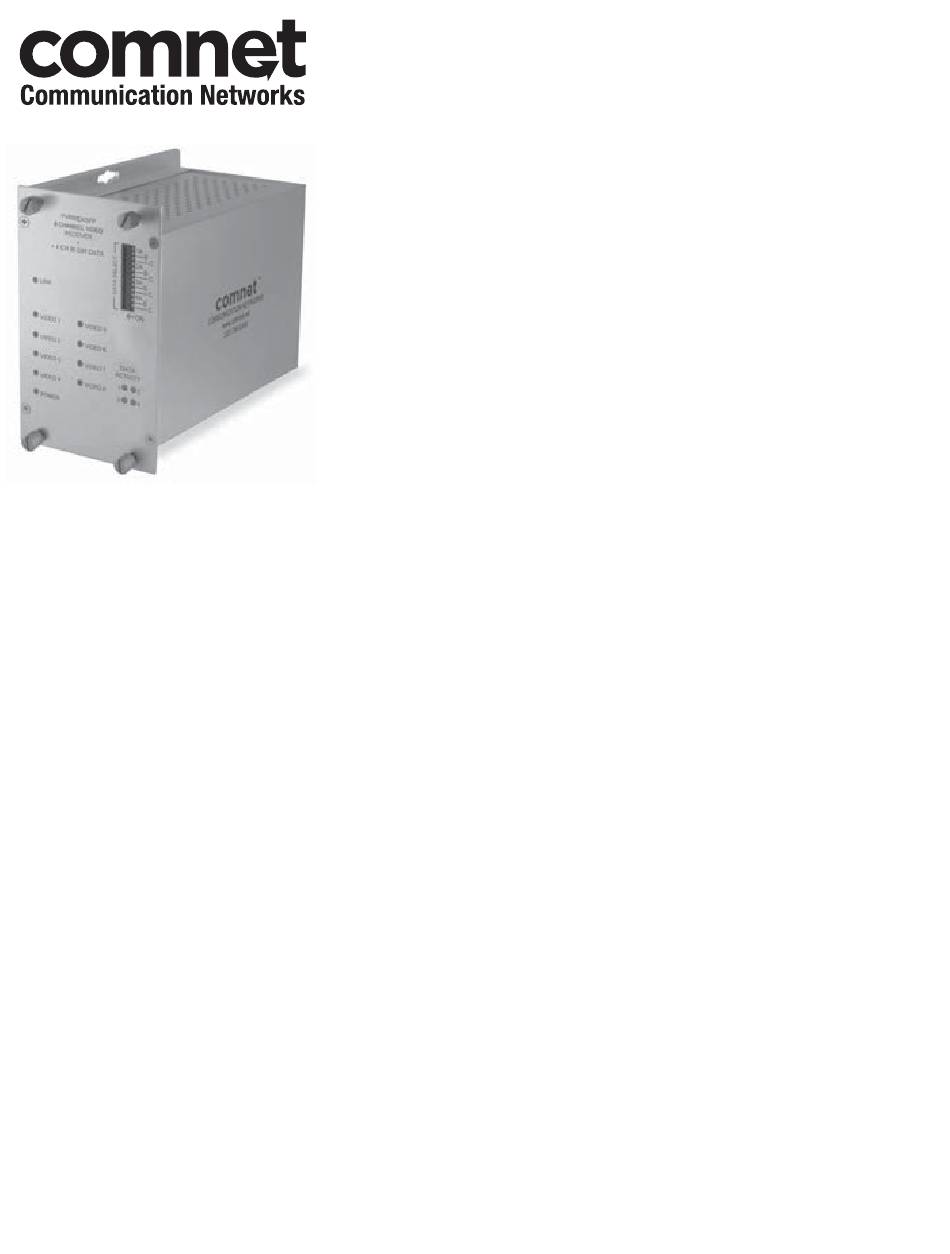

FVT/FVR80D4SFP
8-CHANNEL DIGITALLY ENCODED VIDEO
+ 4 CHANNELS OF BI-DIRECTIONAL DATA USING
SMALL FORM-FACTOR PLUGGABLE (SFP) OPTICAL DEVICES
The FVT/FVR80D4SFP series optical video link provides transmission of eight
10-bit medium-haul quality digitally encoded video channels and four bi-directional
data channels through a selectable small form factor pluggable module (SFP).
See instructions included with SFP for installation of selected module.
Figure 5 on Page 3 illustrates the data electrical connections from the RJ45 Data
connectors and also the connection cable and "breakout box" connections.
Figure 7 on Page 4 illustrates the specific data connections for RS232, 2-Wire
RS485 and RS422/4-Wire RS485. (This last data connection also applies to
Manchester & Bi-Phase data transmission.)
Each data channel is configured for the electrical interface by means of the
"DATA SELECT" switch on the front panel. Figure 6 on Page 4 illustrates the
switch settings to set the type of data for each channel.
Figure 8 on Page 5 illustrates the electrical connections between the
"Customer Equipment" and the FVT80D4SFP and FVR80D4SFP.
Bi-color (Red/Green) LED indicators are provided for confirming operating
status. See Figure 4 on Page 3 for LED indication explanations.
These units are interchangeable between stand-alone or card mount
configurations. See Figure A on Page 6 for mounting instructions.
INS_FVT/FVR80D4SFP_REV–
05/07/10
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comnet FVT80D4SFP
Summary of Contents for Comnet FVT80D4SFP
- Page 1 Figure 8 on Page 5 illustrates the electrical connections between the “Customer Equipment” and the FVT80D4SFP and FVR80D4SFP. Bi-color (Red/Green) LED indicators are provided for confirming operating status. See Figure 4 on Page 3 for LED indication explanations.
- Page 2 FVT/FVR80D4SFP FIGURE 1 – FVT/FVR80D4SFP TRANSMITTER AND RECEIVER OPTICAL FIBER DETERMINED BY SELECTION OF SFP MODULE BLACK BLACK WITH WHITE STRIPE FIGURE 2 – FVT80D4SFP TRANSMITTER FIGURE 3 – FVR80D4SFP RECEIVER FRONT PANEL REAR PANEL FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FVT/FVR80D4SFP_REV–...
- Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR80D4SFP FIGURE 4 – LED INDICATORS LINK VIDEO DATA (IN/OUT) POWER GREEN Communication link has been An active video signal is present An active video signal is Unit powered up established over optical fi ber on the BNC connector. present on the BNC connector.
- Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR80D4SFP FIGURE 6 – SWITCH POSITIONS – FRONT PANEL The mode for each data channel is configured using a set of three switches on the front panel of the unit. FIGURE 7 – SWITCH POSITIONS – RJ45 RS232 RS485 (2W) RS422, RS485...
- Page 5 INSTALLATION AND OPERATION MANUAL FVT/FVR80D4SFP FIGURE 8 – DATA CONNECTIONS Customer FVT80D4SFP FVR80D4SFP Customer Equipment Equipment RS232* DIN(-) Data Transmit DOUT(-) Data Receive DOUT(-) Data Receive DIN(-) Data Transmit Signal Ground Signal Ground Data Out (+) DIN(+) DOUT(+) Data In (+)
- Page 6 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT/FVR80D4SFP_REV– 05/07/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 6...
