Summary of Contents for Escene ES282
-
Page 1: Table Of Contents

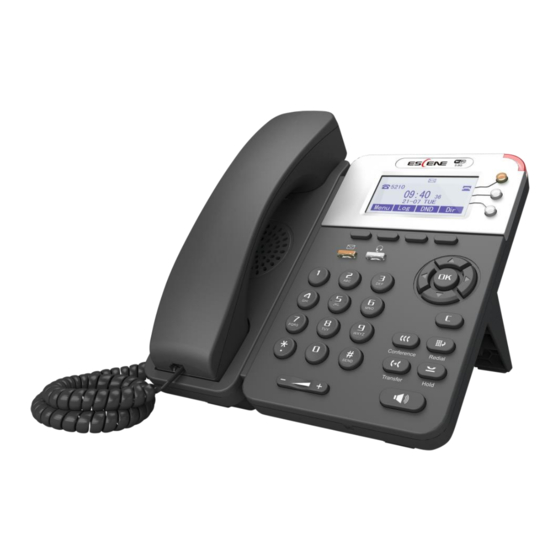

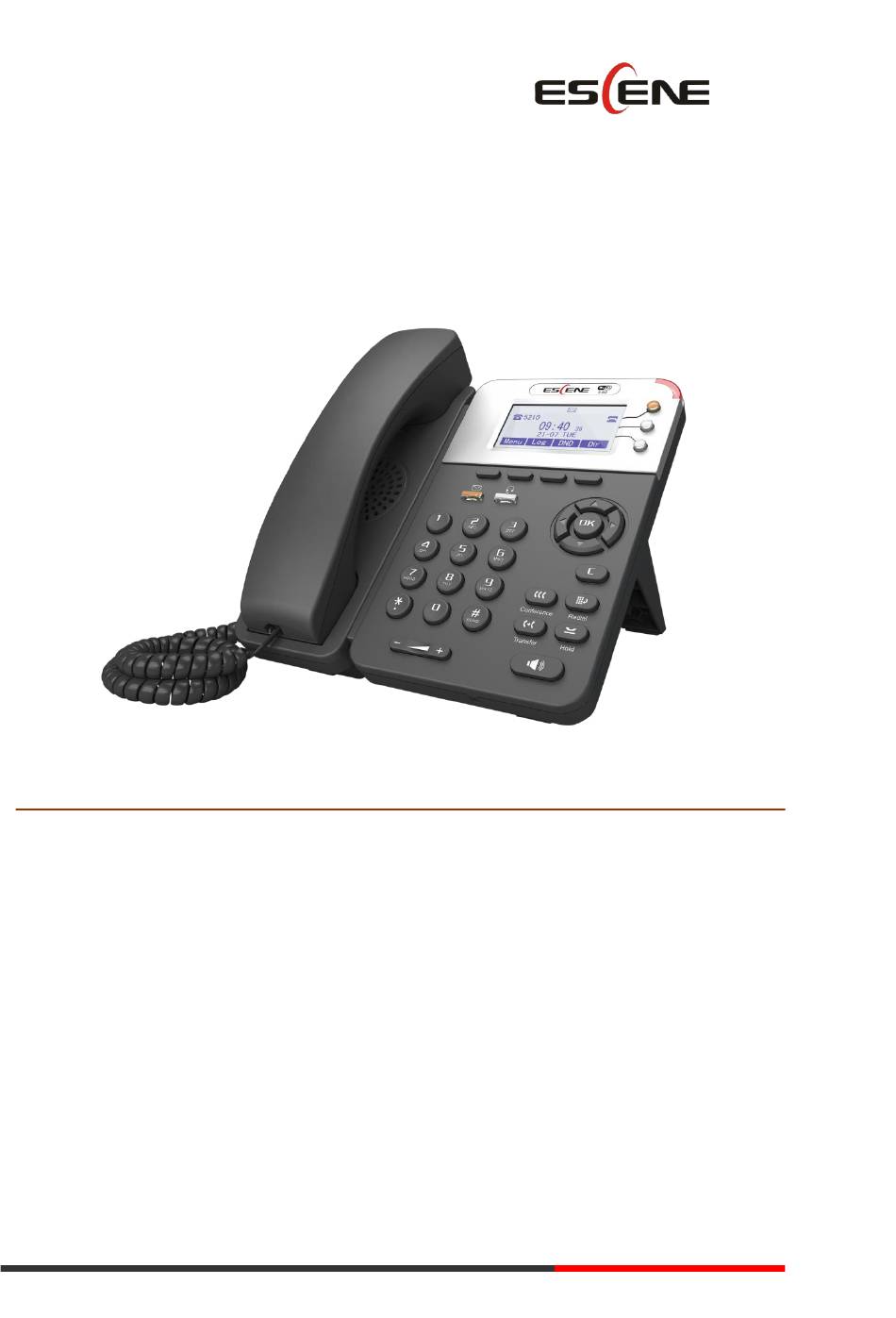

ES282 IP Innovative VoIP Phone User Manual INDEX 1. Getting Started About Feature Highlights 3 2. Set up the Phone 4 3. Phone User Interface 5 3.1 Hardware Component Instructions 3.2 Phone Screen Display Features 7 3.3 Basic Network Settings 3.4 SIP Account Settings 9... - Page 2 6.1 Basic 25 6.1.1 Time Settings 26 6.1.2 Call 27 6.1.3 VoIP Call Forward 6.1.4 QoS 29 6.2 Advanced 30 6.2 .0 Audio 6.3 Line Keys 6.4 Function Keys 6.5 Soft Key 6.6 Dial Plan 6.7 IP Strategy 34 www.escene.cn/en/ Escene Communication...
-
Page 3: Getting Started About
HD audio quality with HD handset, HD speaker and HD codec (G.722), it rich features can effectively improve the communications in working. ES282 quite meets the demands of SMEs, Home Office, and ISP applications. This document updated and revised by Escene Turkey distributor Nolto Bilişim... -
Page 4: Set Up The Phone
Support HTTP\TFTP\FTP\Auto-Provision. Support POE (Remark: ES282-P) / Power Adapter. 2-angle adjustable bracket, wall-mountable 2. Set up the Phone a) Packing List: Check the packing list before installation, if you find anything missing, contact your system administrator. ⚫ 1*ES282 IP Phone ⚫... -
Page 5: Phone User Interface
Note: If POE works, the phone does not need to connect to the AC power adapter. Make sure the Ethernet cable and switch/hub are POE compliant. 3. Phone User Interface 3.1 Hardware Component Instructions The main hardware components of the ES282 IP Phone are the LCD screen and the keypad. www.escene.cn/en/ Escene Communication... - Page 6 Hardware component instructions of the ES282 IP Phone are: ITEM DESCRIPTION LCD Screen Displayed information about calls, messages, soft keys, time, date, and other relevant data: • Call information — caller ID, call duration • Icons (e.g. • Missed calls or second incoming caller's information •Time and date...
-
Page 7: Phone Screen Display Features
Enable this feature, it will display AA at the top right corner. Missed Call Missed Call under the TIME in the middle of screen Line Status There are four status as below: :Disconnect the network :Account failed to register :Account successfully registered www.escene.cn/en/ Escene Communication... -
Page 8: Basic Network Settings
Tips Network is changed, press OK reboot Static IP Setting Feature Operating Steps Static IP Press OK or MENU> System Settings> Advanced Settings> Password (Default is Empty)> Network> LAN Port ⚫ Press LAN Port to login into the menu ⚫ Select Static mode www.escene.cn/en/ Escene Communication... -
Page 9: Sip Account Settings
Tips Network is changed, press OK reboot 3.4 SIP Account Settings ES282 IP phone makes calls based on sip accounts, it can support Single account or Multi-account, each account can be configured to the different SIP server. If you want to…... -
Page 10: Basic Features
- or press Navigation button (in Standby interface) > select All Calls (up) Missed calls (down), Received calls (left) and Dialed numbers (right) 2) Then press button. NOTE: You also can press the log to login this menu when in the idle. www.escene.cn/en/ Escene Communication... -
Page 11: Making Calls To Contact
Press Handset button, （Do not keep the headset mode), Hang up while using the Headset -or press End (keep the headset mode) Hang up one call, but Press End, preserve another call on the -or refer to the above three methods www.escene.cn/en/ Escene Communication... -
Page 12: Using Hold And Recover (Switch Calling Line)
With Mute enabled, you can hear other parties on a call, but they cannot hear you. You can use mute in conjunction with the handset, speakerphone, or a headset。 Toggle Mute on Press C button, then the screen top and left will have a MUTE icon Toggle Mute off Press C button again, then the button lights off www.escene.cn/en/ Escene Communication... -
Page 13: Do Not Disturb
When the Phone get a voice mail from server. it will light up the voice mail button Voice Mail 1）Press the Voice Mail button (There has Voice Mail icon ,without 2）Enter the User Password 3）It will login into the voice mail server. You need to follow the IVR to do 3.6 Advanced Settings www.escene.cn/en/ Escene Communication... -
Page 14: Using The Phone Book
Save to save the change Delete group 1) Press DIR soft key, -or press MENU button > Phone book > Personal phone book>View All, -or press OK button > Phone book > Personal phone book>View All. www.escene.cn/en/ Escene Communication... -
Page 15: Using Call Logs
SIP server. Peer-to-Peer Disable all of accounts or not register. Make Call with 1）Press OK or MENU button> System Setting> Advanced Setting> SIP Peer-to-Peer Account. 2）Disable all of accounts or un-register. www.escene.cn/en/ Escene Communication... -
Page 16: Keypad Setting
Chinese 3) After you finish select, press Save to make it work. 3.7.2 Message ES282 have Message feature. It will display in the LCD when it has a New Message. Create a Message 1）Press OK or MENU button. 2）Select Messaging 3）Voice Message: Setting the Voice Message code in here. -
Page 17: Ring Tone And Volume Setting
In addition to the phone user interface, you can also customize your phone via web user interface. To access the web user interface, you need to know the IP address of your new phone. To obtain the IP address, press the C key on the www.escene.cn/en/ Escene Communication... -
Page 18: Main Interface-Phone Status
Secondary DNS, VPN IP, PC IP, PC Net mask, Device Type, DHCP Server. System Information The status with Phone Model, Software Version, Hardware Version, Hardware ID, Kernel Version, Auto-Provision Server URL, TFTP Server IP. 4.1 Net Work 4.1.1 LAN Port Basic www.escene.cn/en/ Escene Communication... - Page 19 ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS Settings Select the DNS mode that you want. Advanced www.escene.cn/en/ Escene Communication...
- Page 20 Socket5 Proxy Server IP address. Port Socket5 Proxy Server port, default is 1080. Anonymous Login Enable/Disable Socket5 Proxy Server login username. Paging Setting (NOTE: This feature priority is followed the serial number, in other words, paging 1 is www.escene.cn/en/ Escene Communication...
-
Page 21: Pc Port
DHCP function, please turn it on, input start IP and end IP. 4.1.3 Advanced VPN Setting When using VPN Setting option, you can set several parameters as follow: VLAN Setting Enable VPN You can enable/disable VPN for phone and pc. VPN Type: Choose the appropriate type of VPN. www.escene.cn/en/ Escene Communication... -
Page 22: Sip Account
When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable VLAN for phone and pc The VLAN ID you want the phone or pc to join [LAN/PC Port] 5 SIP Account 5.1Basic www.escene.cn/en/ Escene Communication... - Page 23 It is a username provided by SIP Server Authenticate Name It is authenticated ID for authentication Password It is a password provided by SIP Server Label Label with this account. SIP Server Server for registration, provided by administrator. Your company IP PBX address. www.escene.cn/en/ Escene Communication...
-
Page 24: Call
Enable/Disable Do Not Disturb Anonymous Call Enable/Disable anonymous call. Anonymous Call Enable/Disable anonymous call rejection. Rejection Use Session Timer Enable/Disable refresh session function. The device will send an Invite packet to refresh the session during a call if it enables. www.escene.cn/en/ Escene Communication... -
Page 25: Security
Default is 30 second. 5.3 Security ITEM DECSRIPTION Security SIP Encryption Enable/Disable SIP encryption. RTP Encryption Enable/Disable RTP encryption. Encryption Algorithm The encryption algorithm currently we only have RC4. Encryption Key The key with encryption. 6 Phone Setting 6.1 Basic www.escene.cn/en/ Escene Communication... -
Page 26: Time Settings
You can choose to save the call list into the phone or not. Network Packet When select on, then you can capture the phone’s packet use notebook which Mirroring connect to pc port of the phone 6.1.1 Time Settings www.escene.cn/en/ Escene Communication... -
Page 27: Call
You can use 24-hour time format or 12-hour time format Date Format You can choose the appropriate time format. Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually. 6.1.2 Call www.escene.cn/en/ Escene Communication... - Page 28 DND Soft key Enable/Disable the DND feature. Play Hang-up Tone The tone with hang up in busy. Transfer Code The code with transfer. Conference Exit Result Conference originator hang up the phone, hang up two ways of it. www.escene.cn/en/ Escene Communication...
-
Page 29: Voip Call Forward
If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward. 6.1.4 QoS ITEM DECSRIPTION SIP QoS The range is 0~63, default is 26 Voice QoS The range is 0~63, default is 46 www.escene.cn/en/ Escene Communication... -
Page 30: Advanced
The handset MIC volume default is Lv3, the range is 1~7. Speaker Phone MIC The speaker MIC volume default is Lv3, the range is 1~7 Volume Headset MIC Volume The headset MIC volume default is Lv3, the range is 1~7 6.2.2 Advanced www.escene.cn/en/ Escene Communication... - Page 31 Play Load Length The play load length setting, default is 30ms. High Rate of G723.1 Enable/Disable High Rate of G723.1 feature. Enable/Disable VAD feature. Echo Suppression Mode Enable/Disable Echo Suppression Mode feature. Side Tone Enable/Disable Side Tone feature. www.escene.cn/en/ Escene Communication...
-
Page 32: Line Keys
NOTE: ONLY WHEN YOU CHOOSE SPEED DIAL, THE RIGHT OF NAME, NUMBER WILL TAKE EFFECT. 6.4 Function Keys Function Keys: If you do not like the default setting with the function keys feature. You can change to whatever you like. NOTE: IF THE PHONE WITHOUT THE KEY, YOU CAN IGNORE IT. www.escene.cn/en/ Escene Communication... -
Page 33: Soft Key
As below example, when you are dealing with someone, the LCD display soft key is Send \Del \Empty\End, Empty means nothing in it. 6.6 Dial Plan If you want to setup a dial plan, you can click Dial Plan www.escene.cn/en/ Escene Communication... -
Page 34: Ip Strategy
There have two option, Enable or Disable. NOTES: If you want to know more detail about Dial Rule, pls find it in the official website to download the specific document. HTTP://www.escene.cn/en. 6.7 IP Strategy You can use IP Strategy feature to make a list which can be set to only allow the incoming call on the list. -
Page 35: Group
If you want to add a Contact, you just ought to click ‘Add Contact’. You can edit an existed Contact by click You can delete an existed Contact by click , if you want to delete all Contacts, you just ought to click ’Delete All Contact’. www.escene.cn/en/ Escene Communication... -
Page 36: Ldap
You can download and save this contact to PC after you select 7.3 LDAP NOTES: If you want to know more detail about LDAP, pls find it in the office website to download the specific document. HTTP://www.escene.cn/en. As below figure is an example. e.g. LDAP Name Filter:(sn=%s) LDAP Number Filter:(telephoneNumber=%s) Server Address:192.168.0.65... -
Page 37: Phone Maintenance
You can edit or move this contact to Contact after you select 8 Phone Maintenance 8.1 Basic NOTES: Don't cut off the electricity or network cable when doing upgrade in the below ways! 8.1.1 HTTP Upgrade You can upgrade the software, kernel, and configuration etc. files by HTTP. www.escene.cn/en/ Escene Communication... -
Page 38: Ftp Upgrade
Used for the administrator to find out or making sure the problem with this equipment. All Config File All Config File includes: Configuration, Extern, Log, XML Phone book, Enterprise Phone Book. 8.1.2 FTP Upgrade You can upgrade the software, kernel, and configure files by FTP. www.escene.cn/en/ Escene Communication... -
Page 39: Tftp Upgrade
[NOTES：The mode does not support this feature] NOTES: It is not necessary to input filename when doing backup Configuration, Phone Book, EXT Module. 8.1.3 TFTP Upgrade You can upgrade the software, kernel, and configure files by TFTP. www.escene.cn/en/ Escene Communication... -
Page 40: Default Setting
You can load the phone to the factory default setting in default setting option. Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot. 8.1.5 Reboot You can use reboot option to reboot the phone. 8.2 Advanced www.escene.cn/en/ Escene Communication... -
Page 41: Log
(Higher or Lower) which are putted on the TFTP, HTTP, HTTPS, FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www.escene.cn/en When using auto provision, you can set several parameters as follow: www.escene.cn/en/... -
Page 42: Password
10 WEB Other Settings or Information - Appendix 10.1 WEB User In the upper right corner of the website page, you can select the user or logout. www.escene.cn/en/ Escene Communication... -
Page 43: Multi-Language
In the right middle of the website page, there is a Note tips in every function page. Hope it can help you to know something about that. Türkçe destek için Escene Türkiye Distribütörü Nolto Bilişim ve Telekomünikasyon (www.nolto.com) iletişime geçiniz. www.escene.cn/en/...
